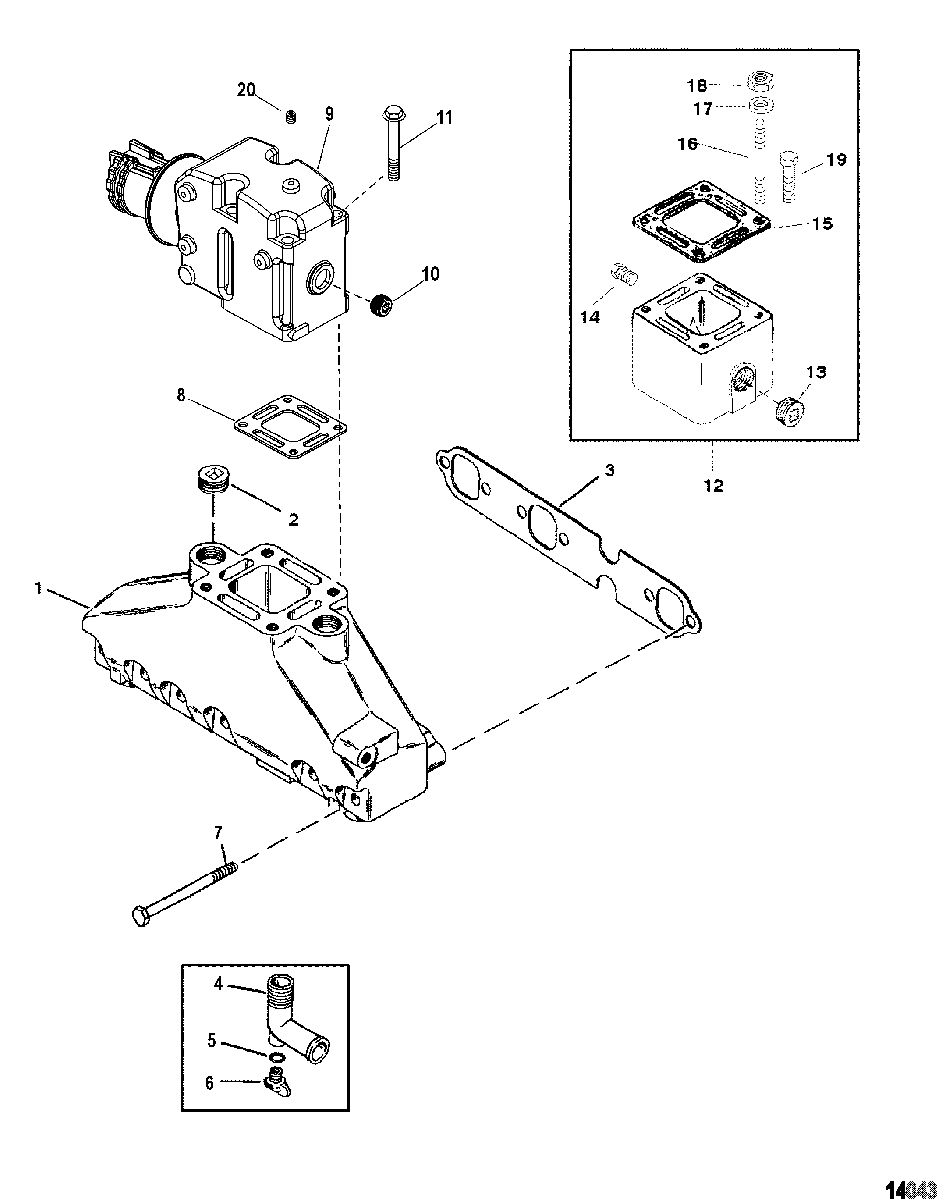

Exhast Manifold And Exhaust Elbow(Two Piece) для Mercruiser - 4.3LH (GEN +) (4 BBL.) GM 262 V-6 1998 0L010044 THRU 0M614999

  • №
    Артикул
    Название
  • 1
    99746A17 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-428611 PLUG, (.750-14) Pipe
    PLUG, (.750-14) Pipe
  • 3
    27-99757 GASKET
    GASKET
  • 4
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 5
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 6
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 7
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 8
    27-863726 GASKET
    GASKET
  • 9
    807988A03 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 10
    22-428611 PLUG, (.750-14) Pipe
    PLUG, (.750-14) Pipe
  • 11
    10-43749 SCREW, (.375-16 x 5.750)
    SCREW, (.375-16 x 5.750)
  • 12
    93320A13 RISER KIT, Exhaust (3 Inches)
    RISER KIT, Exhaust (3 Inches)
  • 12
    93322A12 RISER KIT, Exhaust (6 Inches)
    RISER KIT, Exhaust (6 Inches)
  • 13
    22-428611 PLUG, (.750-14) Pipe
    PLUG, (.750-14) Pipe
  • 14
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 15
    27-863726 GASKET
    GASKET
  • 16
    16-8M0022137 STUD, (.375 x 9.56)
    (Use With Three Inch Riser)
    STUD, (.375 x 9.56)
    (Use With Three Inch Riser)
  • 17
    12-46132 WASHER
    (Use With Three Inch Riser)
    WASHER
    (Use With Three Inch Riser)
  • 18
    11-46335 NUT, (.375-24)
    (Use With Three Inch Riser)
    NUT, (.375-24)
    (Use With Three Inch Riser)
  • 19
    10-865982005 SCREW, (.375-16 x 1.00)
    (Use With SixInch Riser)
    SCREW, (.375-16 x 1.00)
    (Use With SixInch Riser)
  • 20
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • NS
    10-24323 SET SCREW, (.250-20 x 1.25)
    SET SCREW, (.250-20 x 1.25)
  • -
    27-824326A02 GASKET SET, Overhaul
    GASKET SET, Overhaul
