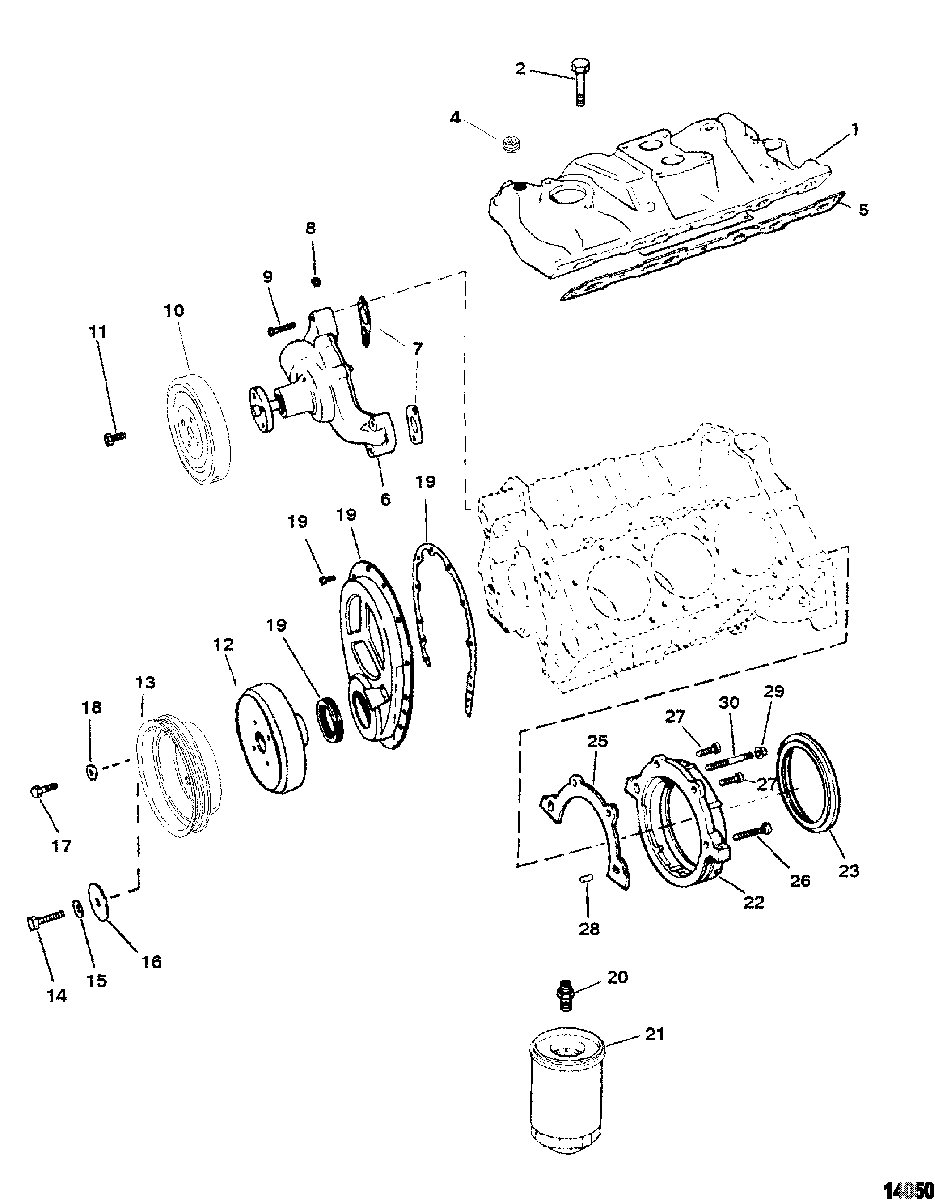

Intake Manifold And Front Cover для Mercruiser - 4.3LH (GEN +) (4 BBL.) GM 262 V-6 1998 0L010044 THRU 0M614999

  • №
    Артикул
    Название
  • 1
    824330T1 MANIFOLD, Intake
    (4 BBL)
    MANIFOLD, Intake
    (4 BBL)
  • 1
    824324T02 MANIFOLD, Intake
    (2 BBL)
    MANIFOLD, Intake
    (2 BBL)
  • 2
    10-835004 BOLT, (.312-18 x 1.75)
    BOLT, (.312-18 x 1.75)
  • 3
    10-802655 BOLT, (3/8-16 x 1.25)
    BOLT, (3/8-16 x 1.25)
  • 4
    22-75983 PLUG
    PLUG
  • 5
    27-824326002 GASKET SET
    GASKET SET
  • 6
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 7
    27-34897 GASKET
    GASKET
  • 8
    22-48336 PLUG, Water Pump
    PLUG, Water Pump
  • 9
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 9
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 9
    16-8M0076418 STUD, (.312-24/.375-16 x 2.5625)
    STUD, (.312-24/.375-16 x 2.5625)
  • 10
    807729T PULLEY
    PULLEY
  • 11
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 12
    809892T BALANCER, Harmonic
    BALANCER, Harmonic
  • 13
    807730T PULLEY
    PULLEY
  • 14
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 15
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 16
    12-35332001 WASHER
    WASHER
  • 17
    10-34352 SCREW, (.375-24 x .875)
    SCREW, (.375-24 x .875)
  • 18
    12-34714 WASHER
    WASHER
  • 19
    809893T TIMING COVER ASSEMBLY, Screws, Grommets And Oil Seal Are Not Sold Separately
    (Use With Out Crankshaft Sensor)
    TIMING COVER ASSEMBLY, Screws, Grommets And Oil Seal Are Not Sold Separately
    (Use With Out Crankshaft Sensor)
  • 19
    8M0069799 TIMING COVER ASSEMBLY, Screws, Grommets And Oil Seal Are Not Sold Separately
    (Use With Crankshaft Sensor)
    TIMING COVER ASSEMBLY, Screws, Grommets And Oil Seal Are Not Sold Separately
    (Use With Crankshaft Sensor)
  • 20
    11972 ADAPTOR
    (With Out Remote Oil Filter)
    ADAPTOR
    (With Out Remote Oil Filter)
  • 21
    35-883702Q FILTER, Oil
    (With Out Remote Oil Filter)
    FILTER, Oil
    (With Out Remote Oil Filter)
  • 22
    804910001 RETAINER, Seal
    RETAINER, Seal
  • 23
    26-879194364 SEAL, Oil (GM Block Code 9LK, 9LJ, 0LK, 0LJ)
    SEAL, Oil (GM Block Code 9LK, 9LJ, 0LK, 0LJ)
  • 24
    26-852941 SEAL, Oil (GM Block Code 8LK, 8LJ)
    SEAL, Oil (GM Block Code 8LK, 8LJ)
  • 25
    27-881715 GASKET
    GASKET
  • 26
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 27
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 28
    17-14263 PIN, Dowel
    PIN, Dowel
  • 29
    11-11996 NUT
    NUT
  • 30
    16-148271 STUD
    STUD
  • -
    27-824326A02 GASKET SET, Overhaul
    GASKET SET, Overhaul
