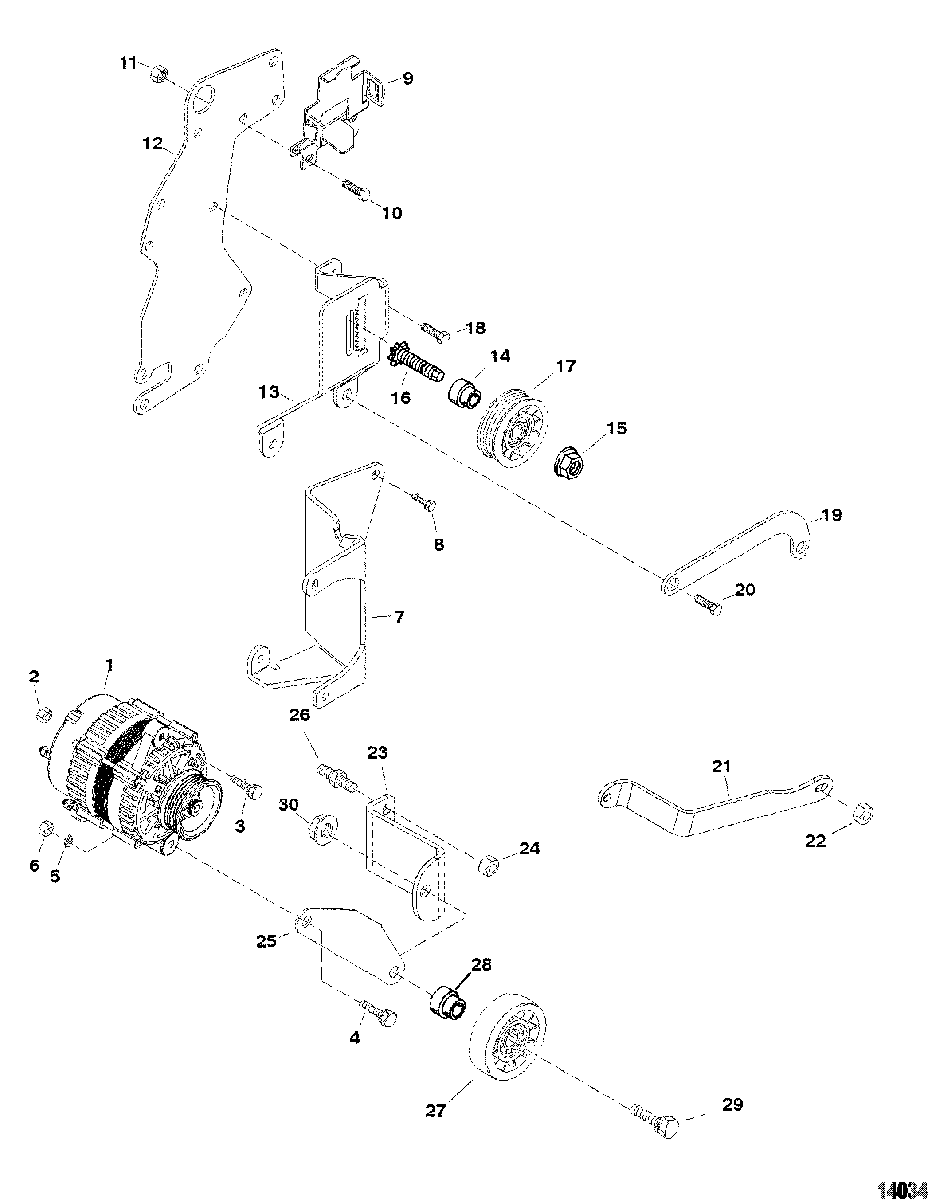

Alternator And Brackets(Delco) для Mercruiser - 4.3LH (GEN +) (4 BBL.) GM 262 V-6 1998 0L010044 THRU 0M614999

  • №
    Артикул
    Название
  • 1
    862031T1 ALTERNATOR ASSEMBLY (65 Amp)
    (With 62 mm Pulley) SN# 0M320024 & Below
    ALTERNATOR ASSEMBLY (65 Amp)
    (With 62 mm Pulley) SN# 0M320024 & Below
  • 1
    863077T ALTERNATOR ASSEMBLY, Black (65 Amp)
    (With 50mm Pulley) SN# 0M320025 & Up
    ALTERNATOR ASSEMBLY, Black (65 Amp)
    (With 50mm Pulley) SN# 0M320025 & Up
  • 2
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 3
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 4
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange
    SCREW, (.312-18 x 1.500) Hex Flange
  • 5
    12-57792 WASHER
    WASHER
  • 6
    11-26484 NUT, (.312-18)
    NUT, (.312-18)
  • 7
    863211T01 BRACKET, Alternator Mounting
    BRACKET, Alternator Mounting
  • 8
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 9
    860065A1 BRACKET KIT, Oil Bottle
    BRACKET KIT, Oil Bottle
  • 10
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 11
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 12
    862056T BRACKET
    BRACKET
  • 13
    862083T BRACKET, Idler Adjustment
    BRACKET, Idler Adjustment
  • 14
    865193 BUSHING
    BUSHING
  • 15
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
  • 16
    43-8M0113182 PINION STUD, (.437-20) Stainless Steel
    PINION STUD, (.437-20) Stainless Steel
  • 17
    807757T PULLEY ASSEMBLY, Idler - Black
    (3.00 Inch Diameter) SN# 0M320024 & Below
    PULLEY ASSEMBLY, Idler - Black
    (3.00 Inch Diameter) SN# 0M320024 & Below
  • 17
    864625T PULLEY
    (4.25 Inch Diameter) (With Power Steering) SN# 0M320025 & Up
    PULLEY
    (4.25 Inch Diameter) (With Power Steering) SN# 0M320025 & Up
  • 17
    807757T PULLEY ASSEMBLY, Idler - Black
    (3.00 Inch Diameter) (Compact Hydraulic Steering) SN# 0M320025 & Up
    PULLEY ASSEMBLY, Idler - Black
    (3.00 Inch Diameter) (Compact Hydraulic Steering) SN# 0M320025 & Up
  • 18
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 19
    862082T BRACE, Power Steering
    BRACE, Power Steering
  • 20
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 21
    862778A1 BRACKET
    (Alpha)
    BRACKET
    (Alpha)
  • 22
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 23
    862084T BRACKET, Idler
    BRACKET, Idler
  • 24
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 25
    862085T BRACE, Idler Bracket
    BRACE, Idler Bracket
  • 26
    16-860102 STUD, (.375-16 x 1.730)
    (Bravo)
    STUD, (.375-16 x 1.730)
    (Bravo)
  • 27
    8M6500024 PULLEY
    PULLEY
  • 28
    865193 BUSHING
    BUSHING
  • 29
    10-56393 SCREW, (.437-20 x 1.75)
    SCREW, (.437-20 x 1.75)
  • 30
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
