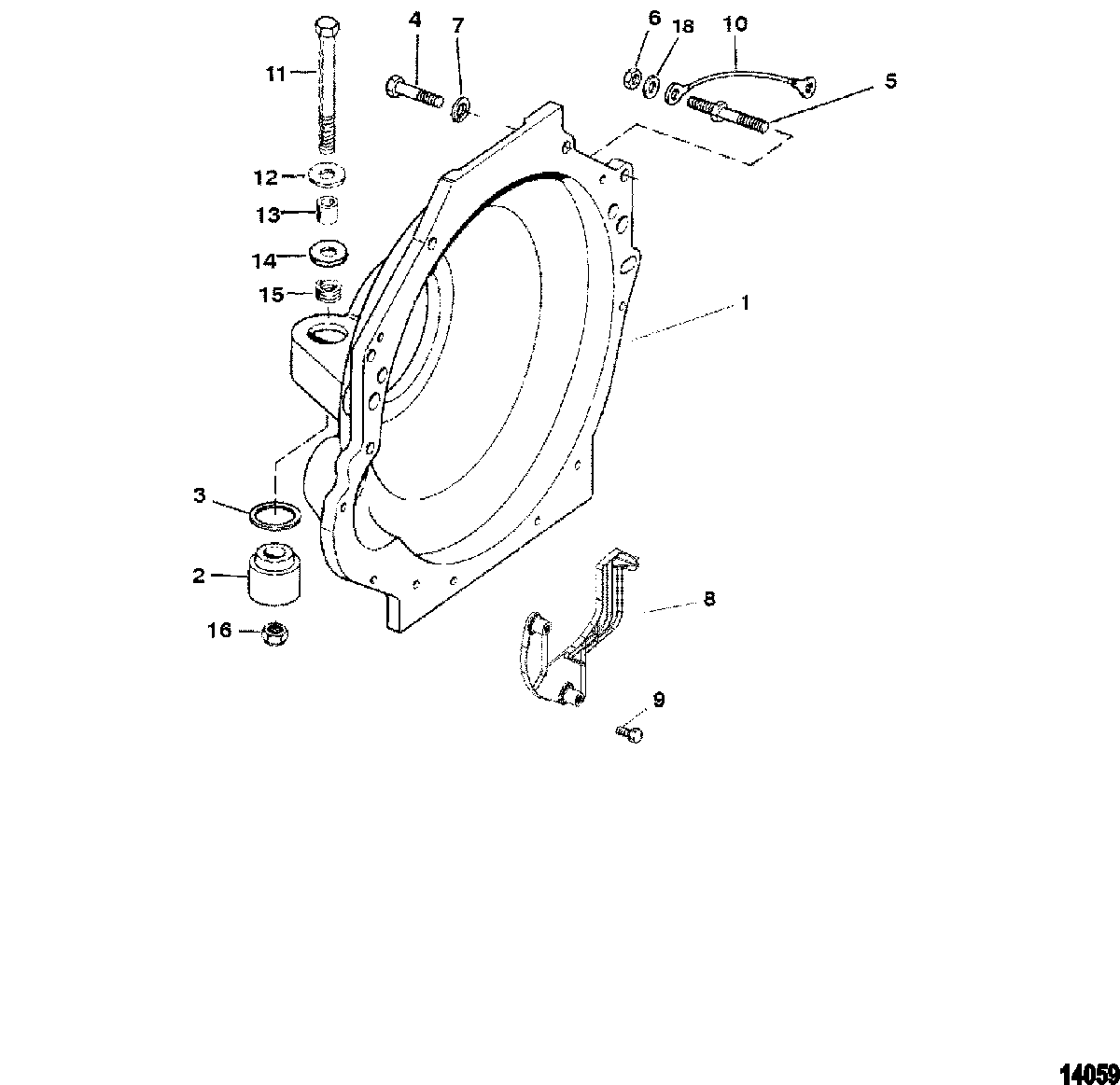

Flywheel Housing для Mercruiser - 4.3LH (GEN +) (4 BBL.) GM 262 V-6 1998 0L010044 THRU 0M614999

  • №
    Артикул
    Название
  • 1
    865657A03 HOUSING ASSEMBLY, Flywheel
    HOUSING ASSEMBLY, Flywheel
  • 2
    8M0103028 MOUNT KIT, Rubber
    MOUNT KIT, Rubber
  • 3
    23-99322 SPACER
    SPACER
  • 4
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 4
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 4
    10-40001197 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 4
    10-40001203 SCREW, (M10 x 45)
    SCREW, (M10 x 45)
  • 5
    16-861316 STUD, (.375-16 x 2.750) Special
    STUD, (.375-16 x 2.750) Special
  • 5
    16-861577 STUD, Double Ended Metric (M10)
    STUD, Double Ended Metric (M10)
  • 6
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 6
    11-40125100 NUT, (M10)
    NUT, (M10)
  • 7
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 8
    807456A2 COVER
    COVER
  • 9
    10-76596 SCREW, (.250-20 x 1.250)
    SCREW, (.250-20 x 1.250)
  • 10
    84-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black
    CABLE ASSEMBLY, Ground (13.00 Inches) Black
  • 11
    10-97934 SCREW, (.500-20 x 5.370) Special
    SCREW, (.500-20 x 5.370) Special
  • 12
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 13
    23-99299 SPACER, (.520 x .870 x .630)
    SPACER, (.520 x .870 x .630)
  • 14
    12-32834 WASHER, (.9375 x 1.750 x .172)
    WASHER, (.9375 x 1.750 x .172)
  • 15
    13-33734 LOCKWASHER, (.500)
    LOCKWASHER, (.500)
  • 16
    11-863332 NUT, (.500-20) Aluminum
    NUT, (.500-20) Aluminum
  • 17
    11-40125100 NUT, (M10)
    NUT, (M10)
  • 18
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
