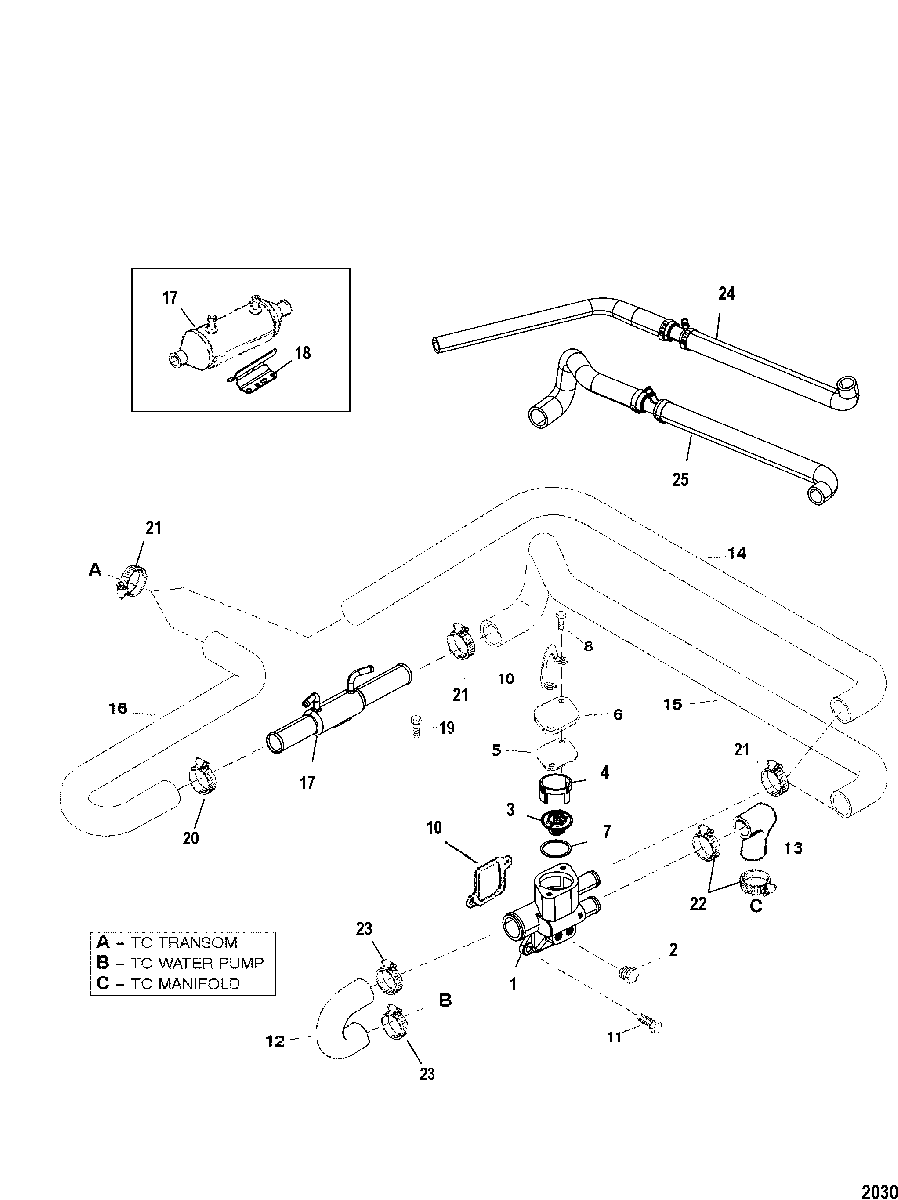

Thermostat And Hoses(Standard Cooling)(S/N: 0L341000 And Up) для Mercruiser - 3.0L GM 181 I/L4 0L097000 THRU 0W301999

  • №
    Артикул
    Название
  • 1
    861493A06 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    8M0109441 THERMOSTAT, 71DegreeC (160 Degree F)
    THERMOSTAT, 71DegreeC (160 Degree F)
  • 4
    23-806922 SLEEVE
    SLEEVE
  • 5
    27-331792 GASKET
    GASKET
  • 6
    17494A1 COVER KIT
    COVER KIT
  • 7
    27-806871 GASKET
    GASKET
  • 8
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 9
    12552 LIFTING EYE
    LIFTING EYE
  • 10
    27-8146801 GASKET
    GASKET
  • 11
    10-90059 SCREW, (.375-16 x .875)
    (Without Power Steering)
    SCREW, (.375-16 x .875)
    (Without Power Steering)
  • 11
    10-90059 SCREW, (.375-16 x .875)
    (With Power Steering)
    SCREW, (.375-16 x .875)
    (With Power Steering)
  • 11
    10-90187 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 12
    32-8M0071007 HOSE, Housing To Water Pump
    HOSE, Housing To Water Pump
  • 13
    32-861634 HOSE, Housing To Manifold
    (4.00 Inch)
    HOSE, Housing To Manifold
    (4.00 Inch)
  • 13
    32-806993 HOSE, Housing To Manifold
    (4.50 Inch)
    HOSE, Housing To Manifold
    (4.50 Inch)
  • 14
    32-861635 HOSE, Housing To Transom
    (Without Drain System)
    HOSE, Housing To Transom
    (Without Drain System)
  • 15
    32-861527 HOSE, Housing To Power Steering Cooler
    (Use With 10.50 Inch Cooler) (With Out Drain System)
    HOSE, Housing To Power Steering Cooler
    (Use With 10.50 Inch Cooler) (With Out Drain System)
  • 15
    99356A1 COOLER ASSEMBLY, Oil, Power Steering Cooler To Thermostat Housing
    (Use With 7.75 Inch Cooler) (With Out Drain System)
    COOLER ASSEMBLY, Oil, Power Steering Cooler To Thermostat Housing
    (Use With 7.75 Inch Cooler) (With Out Drain System)
  • 16
    32-807661 HOSE, Power Steering Cooler To Transom
    (With Out Power Steering)
    HOSE, Power Steering Cooler To Transom
    (With Out Power Steering)
  • 17
    99356A1 COOLER ASSEMBLY, Oil, Power Steering
    (7.75 Inch) (With Out Molded Bracket)
    COOLER ASSEMBLY, Oil, Power Steering
    (7.75 Inch) (With Out Molded Bracket)
  • 17
    8M0125855 COOLER, Power Steering
    (10.50 Inch) (With Molded Bracket)
    COOLER, Power Steering
    (10.50 Inch) (With Molded Bracket)
  • 18
    805546A2 BRACKET, Oil Cooler
    BRACKET, Oil Cooler
  • 19
    10-816585 SCREW, (.375-18 x .875), Cooler Mounting Bracket
    Metal Cooler
    SCREW, (.375-18 x .875), Cooler Mounting Bracket
    Metal Cooler
  • 19
    10-8M2016106 SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
    SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
  • 20
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose - Diameter(1.75 Inch)
    (With Power Steering)
    CLAMP, Worm Gear (1.98 DIameter), Hose - Diameter(1.75 Inch)
    (With Power Steering)
  • 21
    54-815504212 CLAMP, Worm Gear, Hose - Diameter (1.31 Inch)
    (With Power Steering)
    CLAMP, Worm Gear, Hose - Diameter (1.31 Inch)
    (With Power Steering)
  • 22
    54-815504220 CLAMP, Worm Gear
    (1.75 Inch Diameter)
    CLAMP, Worm Gear
    (1.75 Inch Diameter)
  • 22
    54-815504216 CLAMP, Worm Gear (1.56 Diameter)
    (1.56 Inch Diameter)
    CLAMP, Worm Gear (1.56 Diameter)
    (1.56 Inch Diameter)
  • 23
    54-815504232 CLAMP, Worm Gear (2.50 Diameter), Diameter (2.50 Inch)
    CLAMP, Worm Gear (2.50 Diameter), Diameter (2.50 Inch)
  • 24
    32-862325 HOSE, Transom To Thermostat Housing
    (With Out Power Steering) (With Drain System)
    HOSE, Transom To Thermostat Housing
    (With Out Power Steering) (With Drain System)
  • 25
    32-862324 HOSE, Power Steering Cooler To Thermostat Housing.
    (With Power Steering) (With Drain System)
    HOSE, Power Steering Cooler To Thermostat Housing.
    (With Power Steering) (With Drain System)
  • -
    27-810846A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
  • -
    861481A2 POWER STEERING KIT
    POWER STEERING KIT
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
