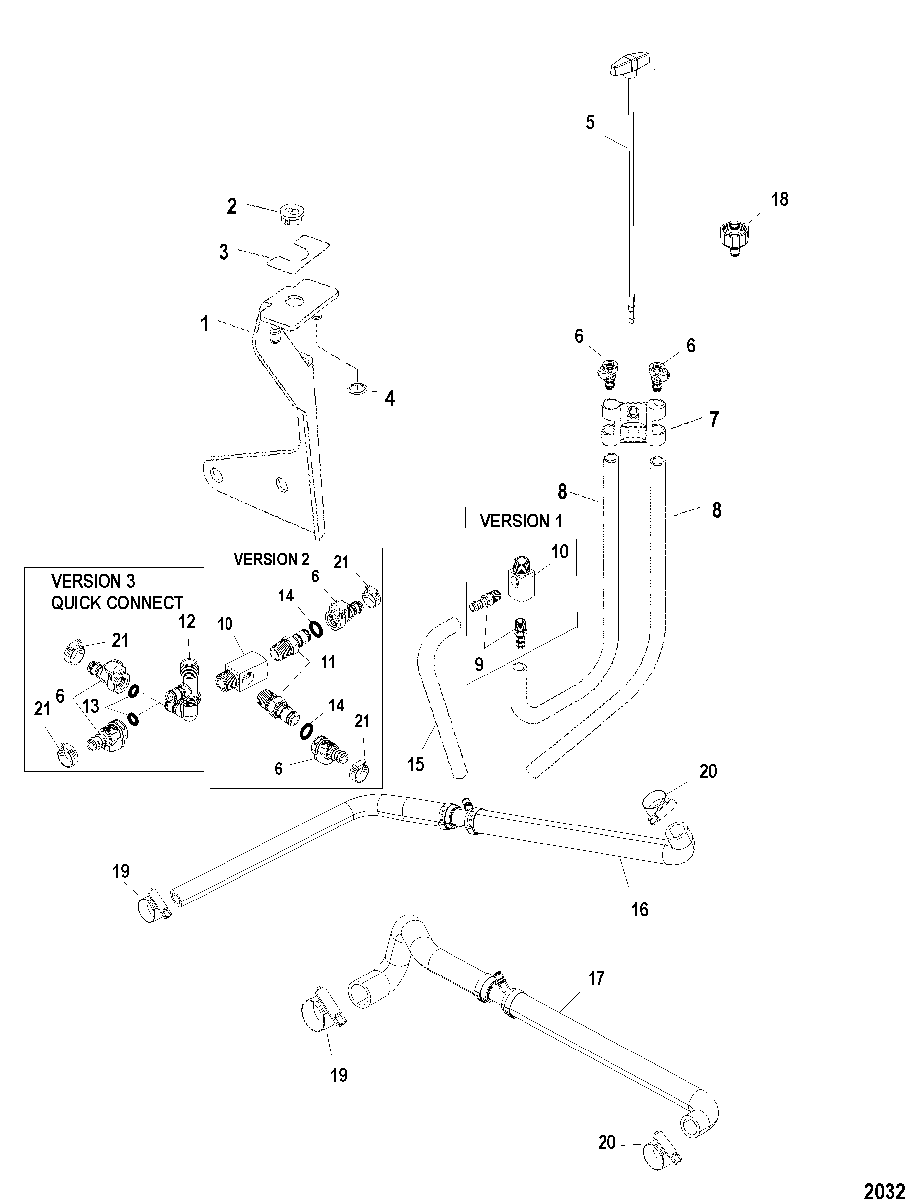

Drain System(S/N-0L630000 & Up) для Mercruiser - 3.0L GM 181 I/L4 0L097000 THRU 0W301999

  • №
    Артикул
    Название
  • 1
    862226A2 BRACKET, Drain
    BRACKET, Drain
  • 2
    23-862298 BUSHING
    BUSHING
  • 3
    37-862230 DECAL, Warning
    DECAL, Warning
  • 4
    25-627021 O-RING, (.301 x .070)
    O-RING, (.301 x .070)
  • 5
    862257A1 T-HANDLE ASSEMBLY, With Cable
    T-HANDLE ASSEMBLY, With Cable
  • 6
    22-862225 FITTING, Coupling
    FITTING, Coupling
  • 7
    862229 SLIDER
    SLIDER
  • 8
    32-8M0062585 HOSE, Blue Drain
    HOSE, Blue Drain
  • 9
    22-862223 FITTING
    (Version 1)
    FITTING
    (Version 1)
  • 10
    22-862605T1 FITTING
    (Version 1 and 2)
    FITTING
    (Version 1 and 2)
  • 11
    22-862603 FITTING
    (Version 2)
    FITTING
    (Version 2)
  • 12
    22-862605T1 ADAPTOR ASSEMBLY, Includes O-Rings
    (Version 3)
    ADAPTOR ASSEMBLY, Includes O-Rings
    (Version 3)
  • 13
    25-627021 O-RING, (.301 x .070)
    (Version 3)
    O-RING, (.301 x .070)
    (Version 3)
  • 14
    25-627021 O-RING, (.301 x .070)
    (Version 2)
    O-RING, (.301 x .070)
    (Version 2)
  • 15
    32-8M0062590 HOSE
    HOSE
  • 16
    32-862325 HOSE, Transom to Thermostat Housing
    (With Power Steering)(Starboard)
    HOSE, Transom to Thermostat Housing
    (With Power Steering)(Starboard)
  • 17
    32-862324 HOSE, Power Steering Cooler to Thermostat Housing
    (With Power Steering)(Starboard)
    HOSE, Power Steering Cooler to Thermostat Housing
    (With Power Steering)(Starboard)
  • 18
    22-863840 FITTING, Flush
    FITTING, Flush
  • 19
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    (1.56 Inch Diameter)
    CLAMP, Worm Gear (1.56 Diameter), Hose
    (1.56 Inch Diameter)
  • 20
    54-815504212 CLAMP, Worm Gear, Hose
    (1.31 Inch Diameter)
    CLAMP, Worm Gear, Hose
    (1.31 Inch Diameter)
  • 21
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    (1.98 Inch Diameter)
    CLAMP, Worm Gear (1.98 DIameter)
    (1.98 Inch Diameter)
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • -
    861481A2 POWER STEERING KIT
    POWER STEERING KIT
