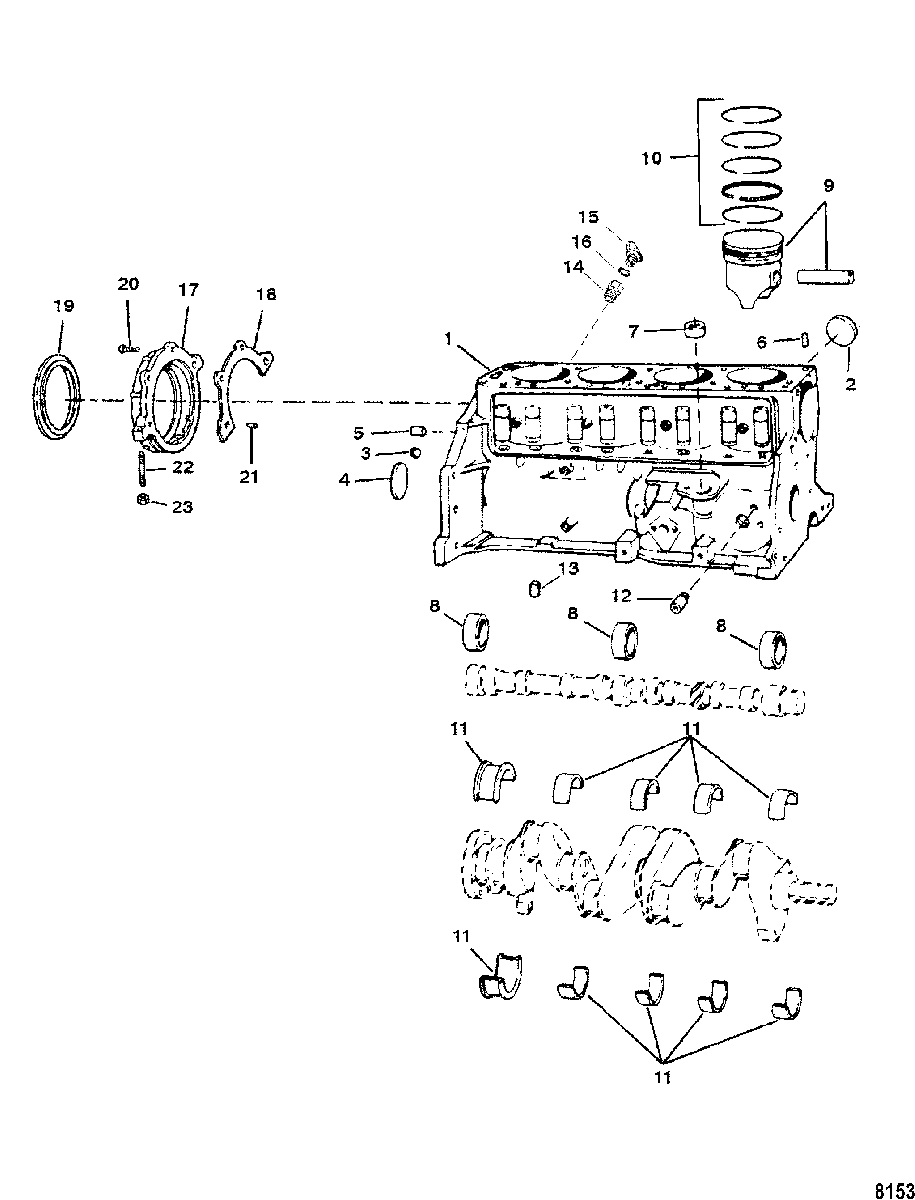

Cylinder Block, Piston and Bearings для Mercruiser - 3.0L GM 181 I/L4 0L097000 THRU 0W301999

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, Cylinder Block Assembly
    (Order Long Block (863814A 1)
    NOT SOLD SEPARATE, Cylinder Block Assembly
    (Order Long Block (863814A 1)
  • 2
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 2
    19-34271 EXPANSION PLUG, (2.00)
    EXPANSION PLUG, (2.00)
  • 3
    19-37531 PLUG
    PLUG
  • 4
    22-72640 PLUG, Expansion
    PLUG, Expansion
  • 5
    22-36373 PLUG, (.375-18 x .42), Pipe
    PLUG, (.375-18 x .42), Pipe
  • 6
    17-35465 PIN, Dowel (.312), Dowel
    PIN, Dowel (.312), Dowel
  • 7
    23-35168 BEARING, Pilot
    BEARING, Pilot
  • 8
    23-43293T BEARING SET, Camshaft
    BEARING SET, Camshaft
  • 9
    733-810852 PISTON ASSEMBLY
    (Standard)
    PISTON ASSEMBLY
    (Standard)
  • 9
    733-810853T PISTON ASSEMBLY
    (.020 Oversize)
    PISTON ASSEMBLY
    (.020 Oversize)
  • 10
    39-17464 RING SET, Piston (Standard)
    (Standard)
    RING SET, Piston (Standard)
    (Standard)
  • 10
    39-66217 RING, Piston
    (.020 Oversize)
    RING, Piston
    (.020 Oversize)
  • 11
    23-818469001 BEARING SET
    (Standard)
    BEARING SET
    (Standard)
  • 11
    23-818470001 BEARING SET
    (.001 USA)
    BEARING SET
    (.001 USA)
  • 11
    23-818471001 BEARING SET
    (.010 USA)
    BEARING SET
    (.010 USA)
  • 11
    23-818472 BEARING SET
    (.020 USA)
    BEARING SET
    (.020 USA)
  • 12
    34543 VALVE, Oil Bypass
    VALVE, Oil Bypass
  • 13
    19-34272 PLUG, Core
    PLUG, Core
  • 14
    22-860088 BUSHING
    BUSHING
  • 15
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 16
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 17
    14239 RETAINER, Oil Seal
    RETAINER, Oil Seal
  • 18
    27-881715 GASKET
    GASKET
  • 19
    26-8M0077606 SEAL, Oil
    SEAL, Oil
  • 20
    10-810844 BOLT
    BOLT
  • 21
    17-14263 PIN, Dowel, Dowel
    PIN, Dowel, Dowel
  • 22
    16-11989 STUD, (.312-18 x 1.6718)
    STUD, (.312-18 x 1.6718)
  • 23
    11-810847 NUT, Oil Pan Stud
    NUT, Oil Pan Stud
  • -
    8M0128770 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
  • -
    27-810846A05 GASKET SET, Overhaul
    GASKET SET, Overhaul
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
