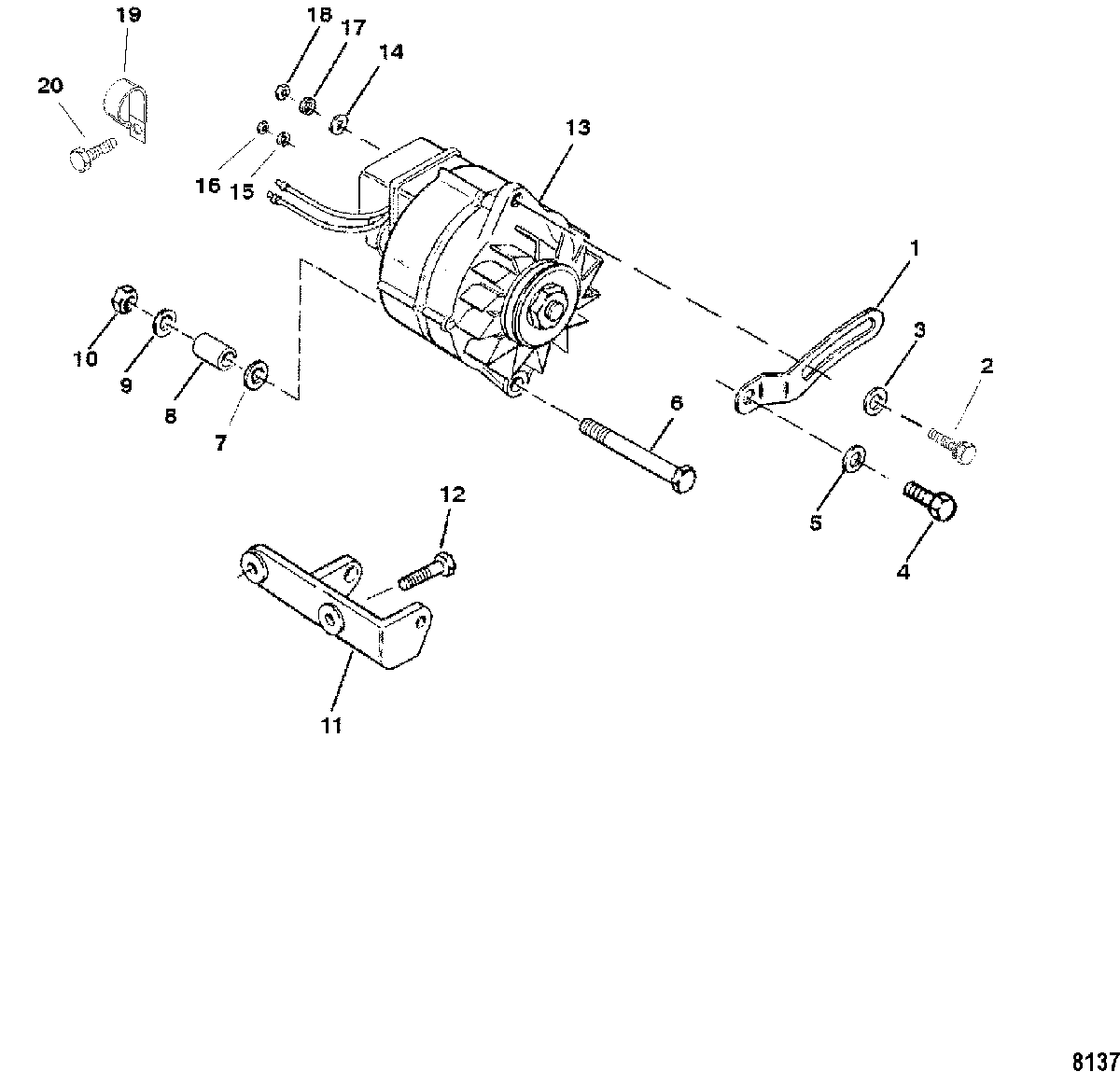

Alternator, Mando (S/N-0L382121 And Below) для Mercruiser - 3.0L GM 181 I/L4 0L097000 THRU 0W301999

  • №
    Артикул
    Название
  • 1
    58333 BRACE, Alternator Adjusting
    BRACE, Alternator Adjusting
  • 2
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 3
    12-26168 WASHER
    WASHER
  • 4
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 5
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 6
    10-37626 SCREW, (.375-24 x 4.250)
    SCREW, (.375-24 x 4.250)
  • 7
    12-28105 WASHER
    WASHER
  • 8
    23-63894 SPACER
    SPACER
  • 9
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 10
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
  • 11
    16738A1 BRACKET, Alternator
    BRACKET, Alternator
  • 12
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 13
    817119A4 ALTERNATOR
    (See "Alternator Breakdown, Mando" Section For Parts Breakdown)
    ALTERNATOR
    (See "Alternator Breakdown, Mando" Section For Parts Breakdown)
  • 14
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 15
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 16
    11-79989 NUT, (#10-24) Stainless Steel
    NUT, (#10-24) Stainless Steel
  • 17
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 18
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 19
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
  • 20
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
