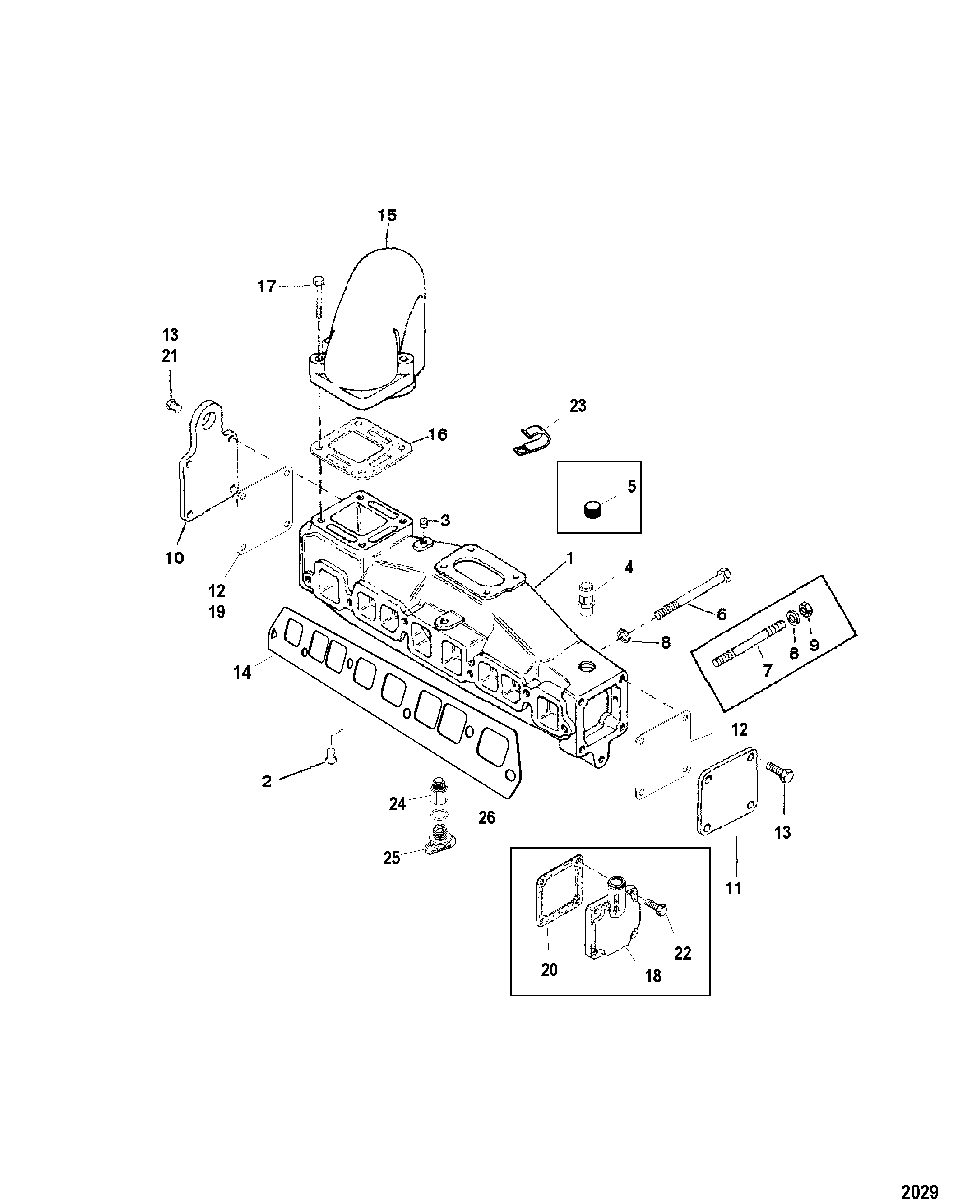

Exhaust Manifold(0M679999 and Below / With end Caps) для Mercruiser - 3.0L GM 181 I/L4 0L097000 THRU 0W301999

  • №
    Артикул
    Название
  • 1
    860235A03 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 3
    22-36382 FITTING, (.250-18 x .62) Brass
    FITTING, (.250-18 x .62) Brass
  • 4
    22-866725 FITTING, Hose
    (Standing Cooling)
    FITTING, Hose
    (Standing Cooling)
  • 5
    22-428611 FITTING, Pipe - Brass (.750-14)
    (Closed Cooling)
    FITTING, Pipe - Brass (.750-14)
    (Closed Cooling)
  • 6
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 7
    16-8M2010364 STUD, (.375 x 5.380)
    STUD, (.375 x 5.380)
  • 8
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 9
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 10
    805629A1 END CAP/LIFTING EYE, Rear
    END CAP/LIFTING EYE, Rear
  • 11
    73813A1 END CAP ASSEMBLY, Front
    (Standing Cooling)
    END CAP ASSEMBLY, Front
    (Standing Cooling)
  • 12
    27-807218 GASKET
    (Standing Cooling)
    GASKET
    (Standing Cooling)
  • 13
    10-824941 SCREW, (.312-18 x .750)
    (Standing Cooling)
    SCREW, (.312-18 x .750)
    (Standing Cooling)
  • 14
    27-815528 GASKET
    GASKET
  • 15
    12076A2 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 16
    27-997772 GASKET
    GASKET
  • 17
    10-668631 SCREW, (.375-16 x 2.500)
    SCREW, (.375-16 x 2.500)
  • 18
    60252A2 END CAP, Front
    (Closed Cooling)
    END CAP, Front
    (Closed Cooling)
  • 19
    27-807218 GASKET
    (Closed Cooling)
    GASKET
    (Closed Cooling)
  • 20
    27-480431 GASKET
    (Closed Cooling)
    GASKET
    (Closed Cooling)
  • 21
    10-824941 SCREW, (.312-18 x .750)
    (Closed Cooling)
    SCREW, (.312-18 x .750)
    (Closed Cooling)
  • 22
    10-35386 SCREW, (.312-18 x 1.00)
    (Closed Cooling)
    SCREW, (.312-18 x 1.00)
    (Closed Cooling)
  • 23
    54-642351 J CLIP
    (Closed Cooling)
    J CLIP
    (Closed Cooling)
  • 24
    22-862557 BUSHING, (.500-13 x .375)
    BUSHING, (.500-13 x .375)
  • 25
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 26
    25-62706 O-RING, (.426 x .070)
    O-RING, (.426 x .070)
  • -
    27-810846A05 GASKET SET, Overhaul
    GASKET SET, Overhaul
  • -
    8M0128770 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
