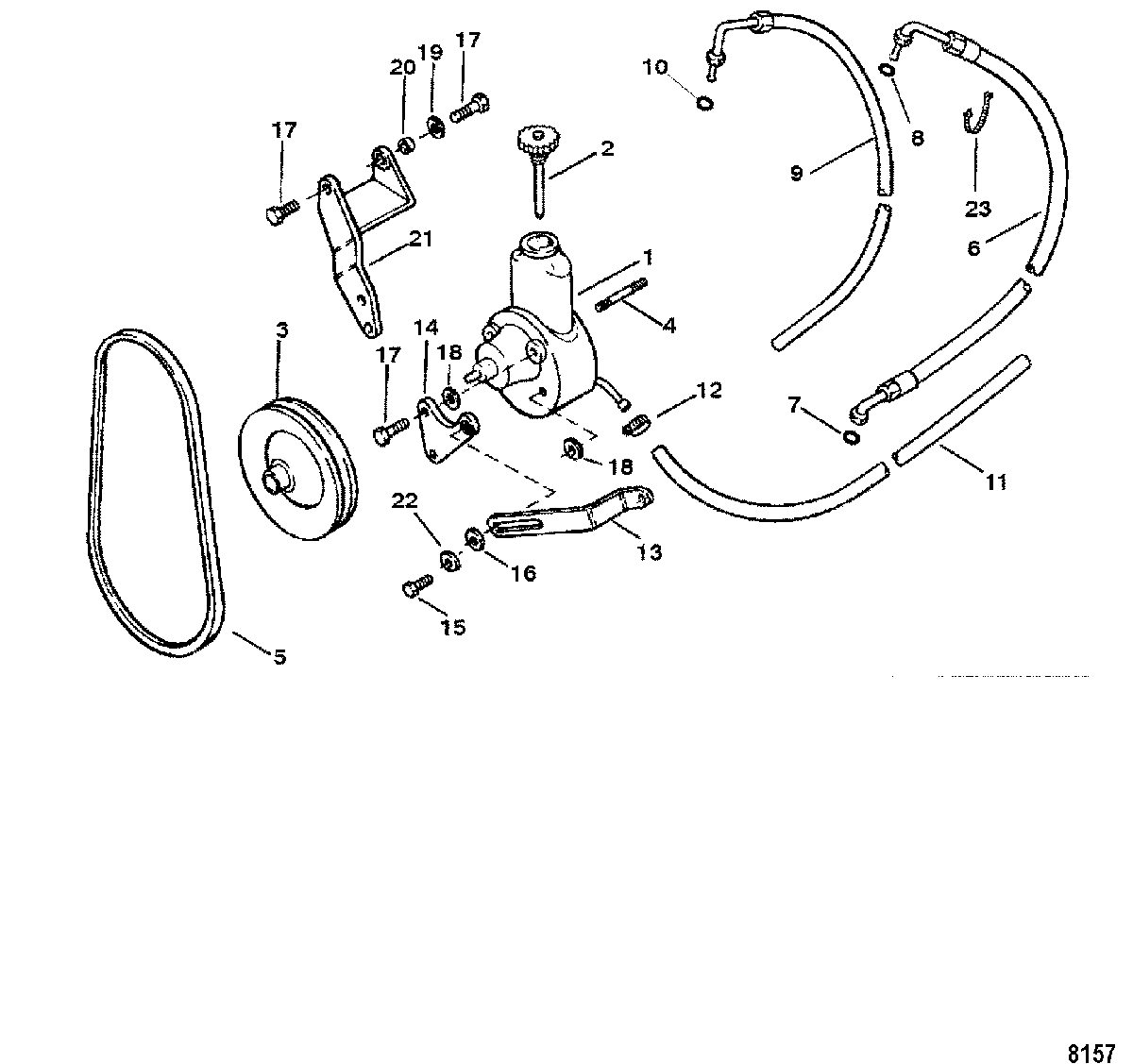

Power Steering Pump Assembly для Mercruiser - 3.0L GM 181 I/L4 0L097000 THRU 0W301999

  • №
    Артикул
    Название
  • -
    861481A2 POWER STEERING KIT
    POWER STEERING KIT
  • 1
    89-8M0063185 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 2
    36-95805 CAP
    CAP
  • 3
    73873A1 PULLEY
    PULLEY
  • 4
    16-41877 STUD, (M10)
    STUD, (M10)
  • 5
    57-65607Q V BELT
    V BELT
  • 6
    32-806684 HOSE, Pressure
    (With (2) 90 Degree Fittings)
    HOSE, Pressure
    (With (2) 90 Degree Fittings)
  • 6
    32-84243545 HOSE ASSEMBLY, Pressure
    (With (1) 90 Degee and (1) 20 Degree Fitting)
    HOSE ASSEMBLY, Pressure
    (With (1) 90 Degee and (1) 20 Degree Fitting)
  • 7
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 8
    25-806232 O-RING, (.239 x .064)
    O-RING, (.239 x .064)
  • 9
    32-80622142 HOSE ASSEMBLY, (84.00 Inches Bulk), Return
    (Fittting on One End) (Cut to 14.00 Inch Length)
    HOSE ASSEMBLY, (84.00 Inches Bulk), Return
    (Fittting on One End) (Cut to 14.00 Inch Length)
  • 10
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 11
    32-8M0062341 HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
    (Cut to 31.00 Inch Length)
    HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
    (Cut to 31.00 Inch Length)
  • 12
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • NS
    19-8M0074363 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • 13
    8M0072245 BRACE, Power Steering Adjusting
    BRACE, Power Steering Adjusting
  • 14
    96872A2 BRACKET
    BRACKET
  • 15
    10-76926 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 16
    12-34714 WASHER
    WASHER
  • 17
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 17
    10-40001195 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 18
    23-72057 SPACER, (1.00 Outside Diameter x .125 x Thick)
    SPACER, (1.00 Outside Diameter x .125 x Thick)
  • 19
    23-72057 SPACER, (1.00 Outside Diameter x .125 x Thick)
    SPACER, (1.00 Outside Diameter x .125 x Thick)
  • 20
    23-96818 BUSHING
    BUSHING
  • 21
    65606T BRACKET
    BRACKET
  • 22
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 23
    61990 TIE STRAP, (14.00 Inches)
    TIE STRAP, (14.00 Inches)
