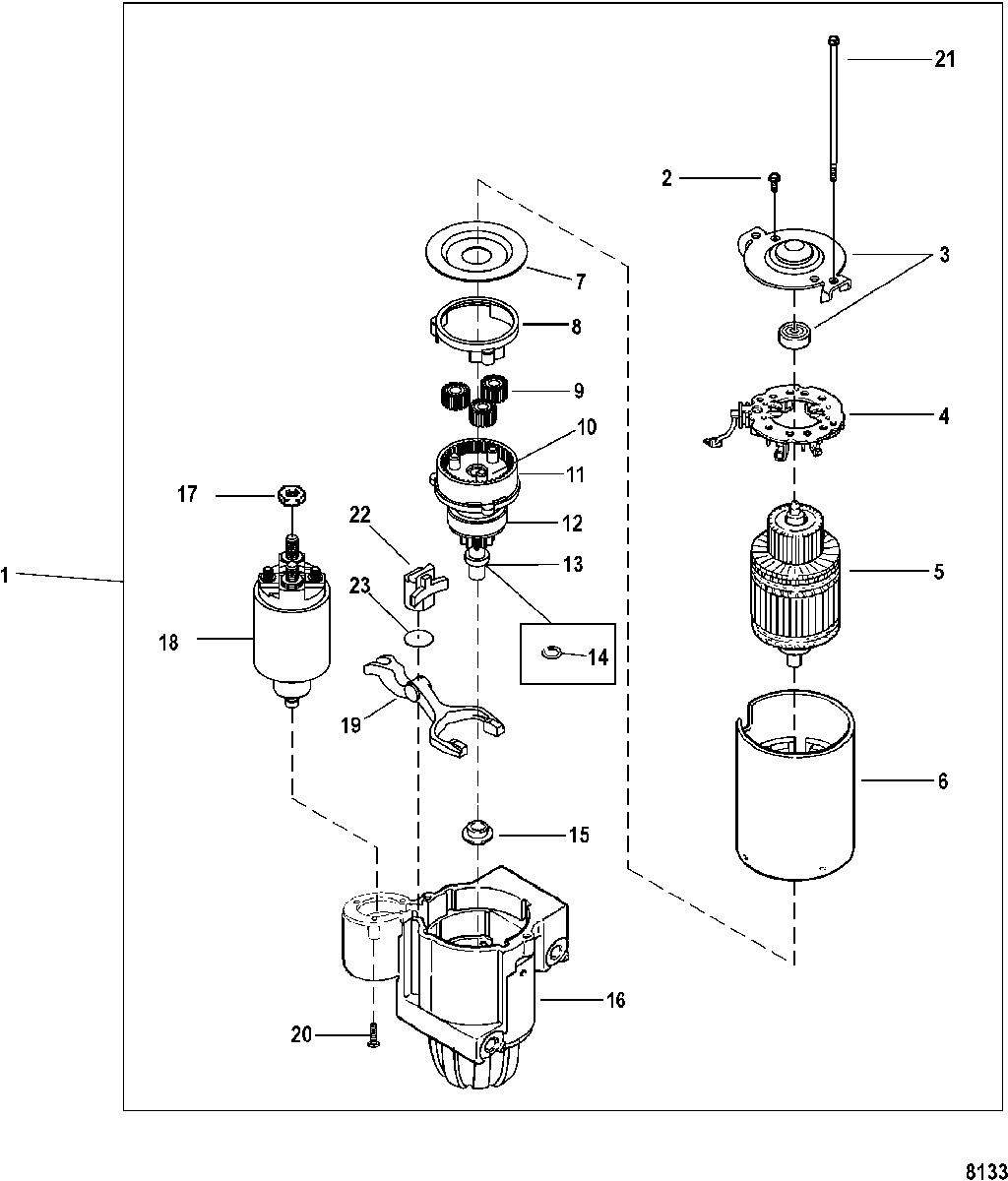

Starter Motor(PG260F1) для Mercruiser - 3.0L GM 181 I/L4 0L097000 THRU 0W301999

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY, PG260F1
    STARTER MOTOR ASSEMBLY, PG260F1
  • 2
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 3
    NSS NOT SOLD SEPARATE, End Frame And Bearing
    NOT SOLD SEPARATE, End Frame And Bearing
  • 4
    803002 BRUSH/HOLDER ASSEMBLY
    BRUSH/HOLDER ASSEMBLY
  • 5
    NSS NOT SOLD SEPARATE, Armature
    NOT SOLD SEPARATE, Armature
  • 6
    NSS NOT SOLD SEPARATE, Field Frames (With Permanent Magnets)
    NOT SOLD SEPARATE, Field Frames (With Permanent Magnets)
  • 7
    NSS NOT SOLD SEPARATE, Cover
    NOT SOLD SEPARATE, Cover
  • 8
    NSS NOT SOLD SEPARATE, Shield
    NOT SOLD SEPARATE, Shield
  • 9
    NSS NOT SOLD SEPARATE, Planetary Gears
    NOT SOLD SEPARATE, Planetary Gears
  • 10
    NSS NOT SOLD SEPARATE, Shaft
    NOT SOLD SEPARATE, Shaft
  • 11
    NSS NOT SOLD SEPARATE, Gear
    NOT SOLD SEPARATE, Gear
  • 12
    803003 DRIVE
    DRIVE
  • 13
    33291 COLLAR
    COLLAR
  • 14
    53-33290 RING, Retaining
    RING, Retaining
  • 15
    NSS NOT SOLD SEPARATE, Collar, Thrust
    NOT SOLD SEPARATE, Collar, Thrust
  • 16
    803001T HOUSING, Drive
    HOUSING, Drive
  • 17
    11-806949 NUT, (M8-1.5)
    NUT, (M8-1.5)
  • 18
    809463A1 SOLENOID KIT
    SOLENOID KIT
  • 19
    NSS NOT SOLD SEPARATE, Lever
    NOT SOLD SEPARATE, Lever
  • 20
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 21
    10-803005 THRU BOLT
    THRU BOLT
  • 21
    16-803004 THRU BOLT
    THRU BOLT
  • 22
    NSS NOT SOLD SEPARATE, Rubber Grommet
    NOT SOLD SEPARATE, Rubber Grommet
  • 23
    NSS NOT SOLD SEPARATE, Disc
    NOT SOLD SEPARATE, Disc
