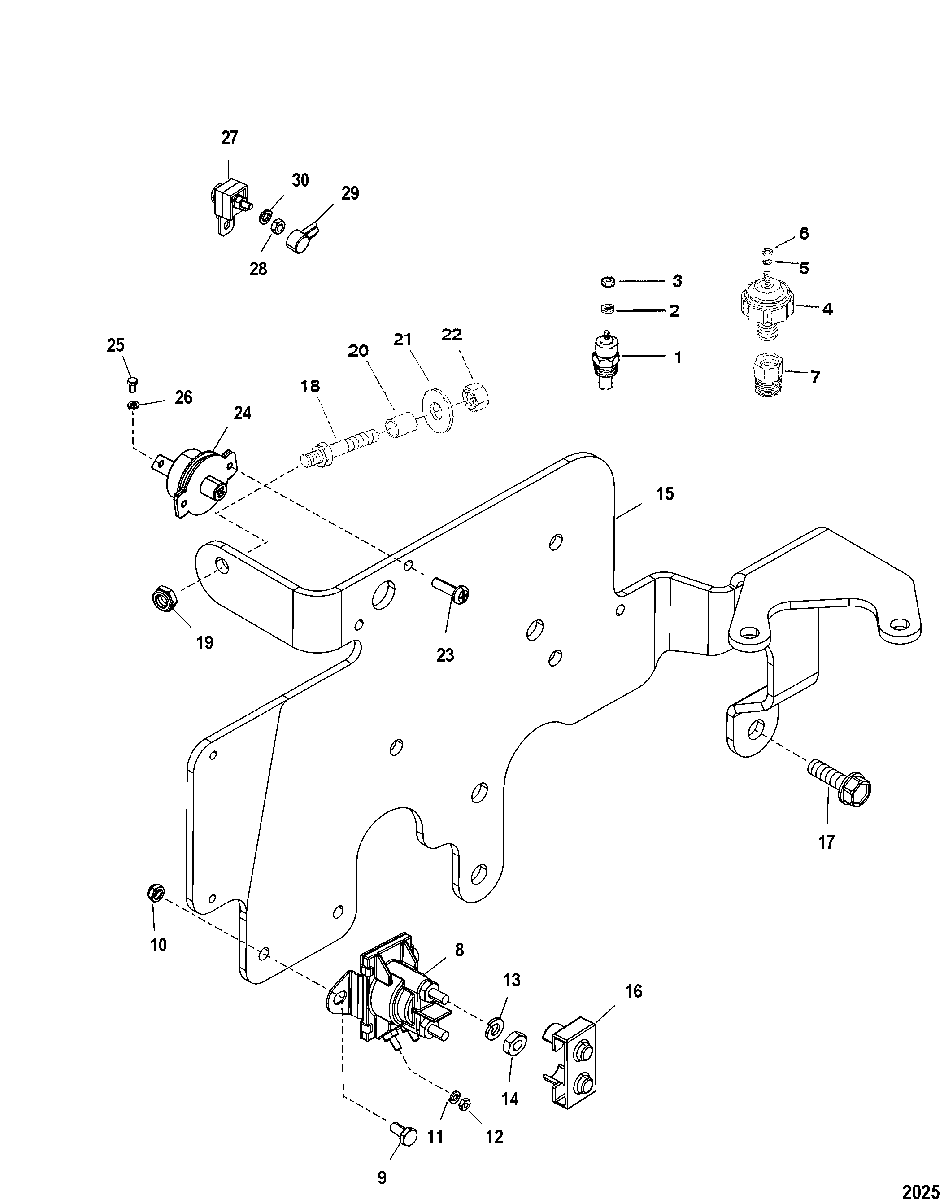

Electrical Components для Mercruiser - 3.0L GM 181 I/L4 0L097000 THRU 0W301999

  • №
    Артикул
    Название
  • 1
    806490T SENDER, Water Temperature
    SENDER, Water Temperature
  • 1
    49734 SENDER, Water Temperature
    (Dual)
    SENDER, Water Temperature
    (Dual)
  • 2
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 3
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 4
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 4
    37293T SENDER ASSEMBLY, Oil Pressure
    (Dual)
    SENDER ASSEMBLY, Oil Pressure
    (Dual)
  • 5
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 6
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 7
    22-32974 FITTING, (.125-27) Adaptor
    FITTING, (.125-27) Adaptor
  • 8
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 9
    10-98256 SCREW, (.250-28 x .500)
    SCREW, (.250-28 x .500)
  • 10
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 11
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 12
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 14
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 15
    862080T BRACKET, Shift With Electrical Mounting
    BRACKET, Shift With Electrical Mounting
  • 16
    85-97861 INSULATOR
    INSULATOR
  • 17
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 18
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 19
    11-8267139 NUT, (.250-28), Lock
    NUT, (.250-28), Lock
  • 20
    23-31866 SPACER, (.256 x .313 x .625)
    SPACER, (.256 x .313 x .625)
  • 21
    12-20533 WASHER
    WASHER
  • 22
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 23
    10-86025 SCREW, (#8-32 x .620)
    SCREW, (#8-32 x .620)
  • 24
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 25
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 26
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 27
    88-79023T90 FUSE ASSEMBLY, 90 Ampere
    FUSE ASSEMBLY, 90 Ampere
  • 28
    11-21825 NUT, (.250-28)
    NUT, (.250-28)
  • 29
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 30
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
