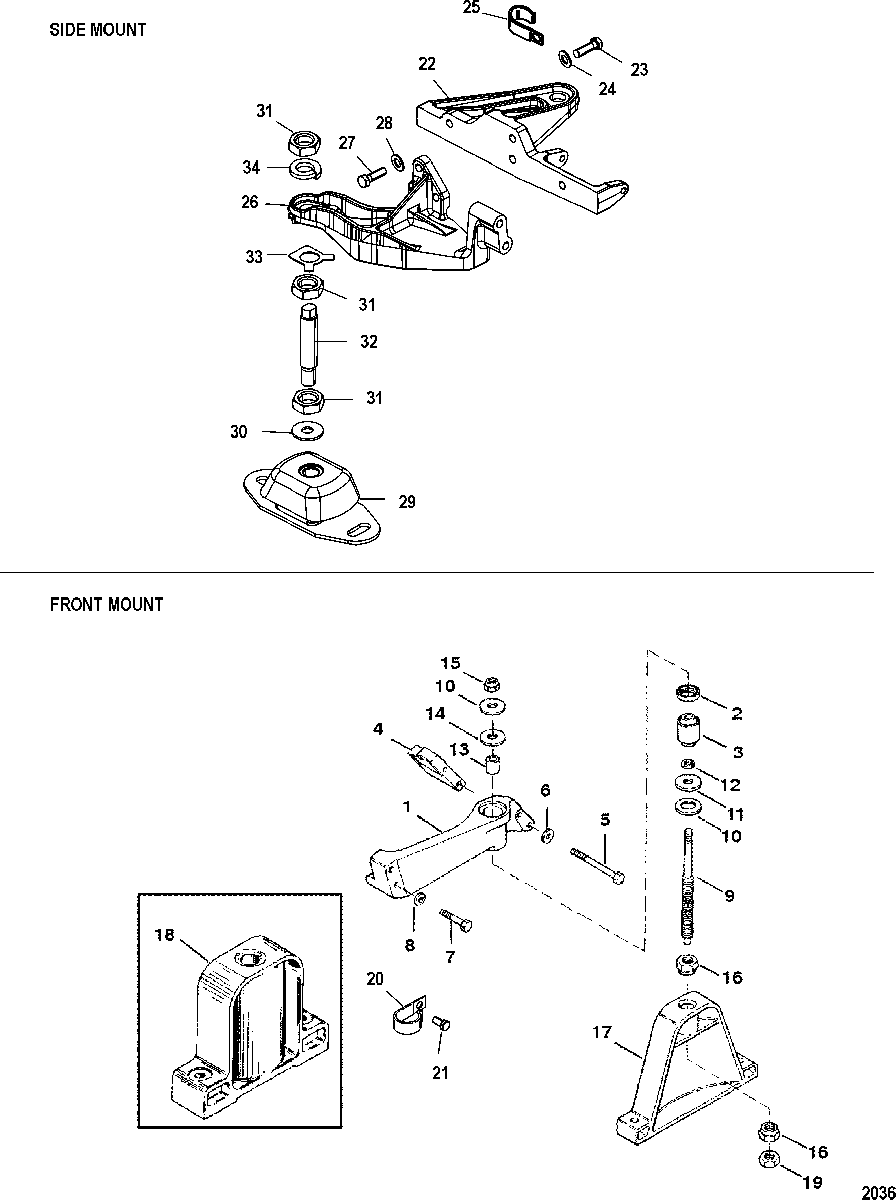

Engine Mounting для Mercruiser - 3.0L GM 181 I/L4 0L097000 THRU 0W301999

  • №
    Артикул
    Название
  • 1
    73571A2 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 2
    23-35903 SPACER
    SPACER
  • 3
    32833 MOUNT
    MOUNT
  • 4
    8M0046293 BLOCK
    BLOCK
  • 5
    10-8M2021918 SCREW, (.437-14 x 4.625)
    SCREW, (.437-14 x 4.625)
  • 6
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 7
    10-26486 SCREW, (.375-16 x 2.375)
    (Without Power Steering)
    SCREW, (.375-16 x 2.375)
    (Without Power Steering)
  • 7
    10-47688 SCREW, (.375-16 x 2.750)
    (With Power Steering)
    SCREW, (.375-16 x 2.750)
    (With Power Steering)
  • 8
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 9
    16-36100T STUD
    STUD
  • 10
    12-36103 WASHER, (Steel, 1.75 Inch Outside Diameter)
    WASHER, (Steel, 1.75 Inch Outside Diameter)
  • 11
    12-32638 WASHER, Rubber
    WASHER, Rubber
  • 12
    12-30119 WASHER, (.875 Inch Outside Diameter)
    WASHER, (.875 Inch Outside Diameter)
  • 13
    23-32756 SPACER
    SPACER
  • 14
    12-36104 WASHER, Rubber
    WASHER, Rubber
  • 15
    11-82671317 NUT, (.500-20)
    NUT, (.500-20)
  • 16
    11-32882 NUT, (.875-14)
    NUT, (.875-14)
  • 17
    32778T SUPPORT
    SUPPORT
  • 18
    76409F1 SUPPORT
    SUPPORT
  • 19
    11-47525 NUT, (.875-14), Bottom
    NUT, (.875-14), Bottom
  • 20
    54-78945 J CLAMP
    J CLAMP
  • 21
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 22
    863384T MOUNT, Port
    MOUNT, Port
  • 23
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 23
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 24
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 25
    54-78945 J CLAMP
    J CLAMP
  • 26
    863385T MOUNT, Starboard
    MOUNT, Starboard
  • 27
    10-34354 SCREW, (.375-16 x 1.50)
    SCREW, (.375-16 x 1.50)
  • 27
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 28
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 29
    98323A6 BASE ASSEMBLY
    BASE ASSEMBLY
  • 30
    12-33171 WASHER, (.6406 x 1.750 x .125)
    WASHER, (.6406 x 1.750 x .125)
  • 31
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 32
    16-8M0022149 STUD, (.750-16 x Special)
    STUD, (.750-16 x Special)
  • 33
    14-863844 RETAINER
    RETAINER
  • 34
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
