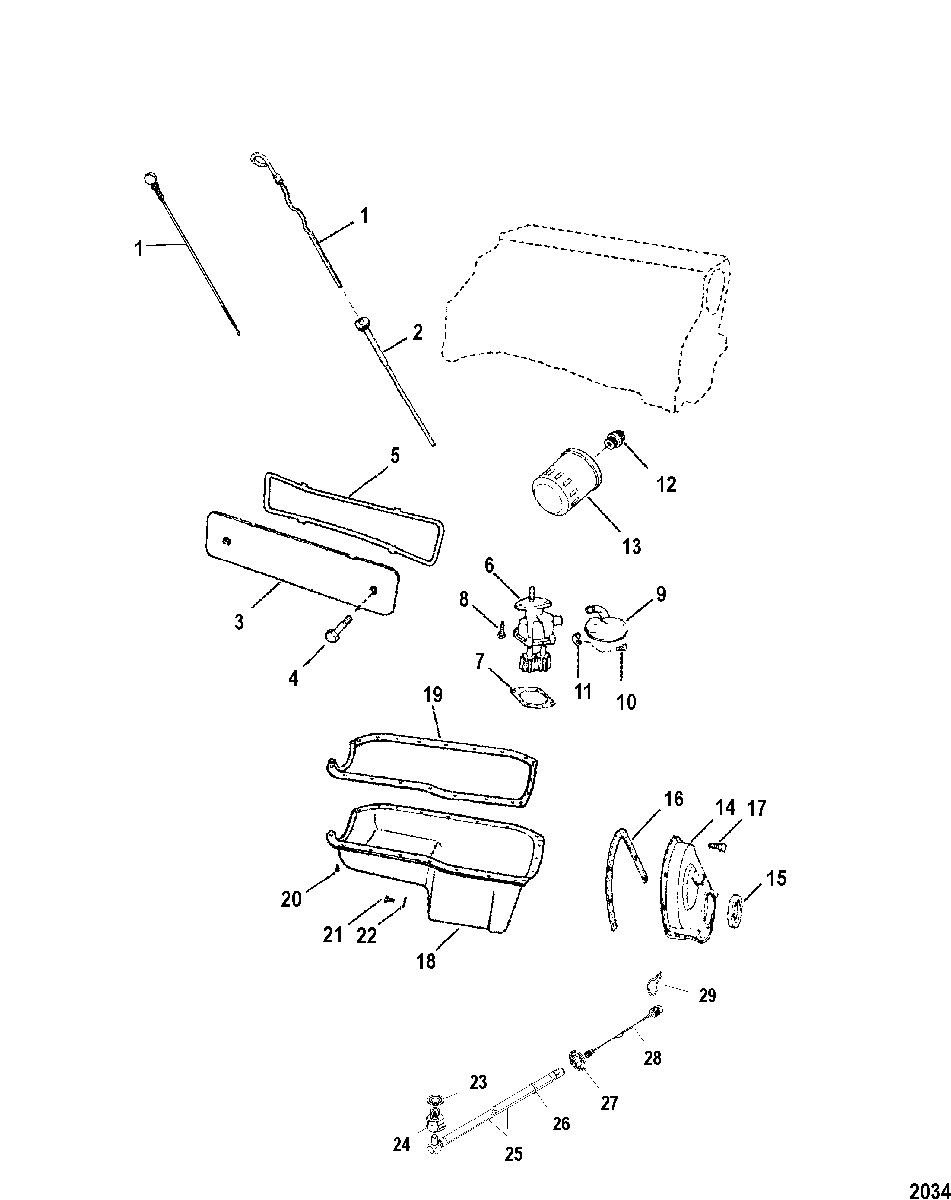

Oil Pan and Oil Pump для Mercruiser - 3.0L GM 181 I/L4 0L097000 THRU 0W301999

  • №
    Артикул
    Название
  • 1
    861942T1 GAUGE, Dipstick
    (Loop Handle)
    GAUGE, Dipstick
    (Loop Handle)
  • 1
    861942T1 GAUGE, Dipstick
    (Knob Handle)
    GAUGE, Dipstick
    (Knob Handle)
  • 2
    87717A2 TUBE, Dipstick
    TUBE, Dipstick
  • 3
    814702 COVER, Push Rod
    COVER, Push Rod
  • 4
    10-34470 SCREW, With Sealing Washer
    SCREW, With Sealing Washer
  • 5
    27-814703 GASKET
    GASKET
  • 6
    36405 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 7
    27-34460 GASKET
    GASKET
  • 8
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 9
    52146 SCREEN, Oil Pump Pickup
    SCREEN, Oil Pump Pickup
  • 10
    10-8M0040582 SCREW
    SCREW
  • 11
    60717 SUPPORT, Oil Pump
    SUPPORT, Oil Pump
  • 12
    22-805632 CONNECTOR
    (With Out Remote Oil)
    CONNECTOR
    (With Out Remote Oil)
  • 13
    35-866340Q03 FILTER, Oil
    (With Out Remote Oil) (Quicksilver Branded)
    FILTER, Oil
    (With Out Remote Oil) (Quicksilver Branded)
  • 13
    35-866340K01 FILTER, Oil
    (With Out Remote Oil) (Mercury Branded)
    FILTER, Oil
    (With Out Remote Oil) (Mercury Branded)
  • 14
    59341A1 COVER ASSEMBLY
    COVER ASSEMBLY
  • 15
    26-97335 SEAL, Oil
    SEAL, Oil
  • 16
    27-49953 GASKET
    GASKET
  • 17
    10-8M0040582 SCREW
    SCREW
  • 18
    8M0122492 PAN, Oil
    PAN, Oil
  • 19
    27-810846T GASKET SET
    GASKET SET
  • 20
    10-34500 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 20
    10-72607 SCREW, (.250-20 x .375)
    SCREW, (.250-20 x .375)
  • 21
    10-49956 SCREW, Drain
    SCREW, Drain
  • 22
    27-8M0077608 GASKET, Drain
    GASKET, Drain
  • 23
    27-8M0077608 GASKET
    GASKET
  • 24
    22-862956 FITTING, Female Quick Connect
    (Design I-With Quick Connect Hose Assembly) SN# 0M643297 & Below
    FITTING, Female Quick Connect
    (Design I-With Quick Connect Hose Assembly) SN# 0M643297 & Below
  • 25
    32-805505A4 HOSE, Oil Drain
    (Design I-With Quick Connect Hose Assembly) SN# 0M643297 & Below
    HOSE, Oil Drain
    (Design I-With Quick Connect Hose Assembly) SN# 0M643297 & Below
  • 25
    32-865277 HOSE, Oil Drain
    (Design II-With Out Quick Connect Hose Assembly) SN# 0M643298 & Up
    HOSE, Oil Drain
    (Design II-With Out Quick Connect Hose Assembly) SN# 0M643298 & Up
  • 26
    54-863481 CLAMP
    CLAMP
  • 27
    862777 FLANGE, Drain
    FLANGE, Drain
  • 28
    862827 TETHER ASSEMBLY, Drain Plug
    TETHER ASSEMBLY, Drain Plug
  • 29
    54-805524 CLIP
    CLIP
  • -
    27-810846A05 GASKET SET, Overhaul
    GASKET SET, Overhaul
  • -
    8M0128770 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
