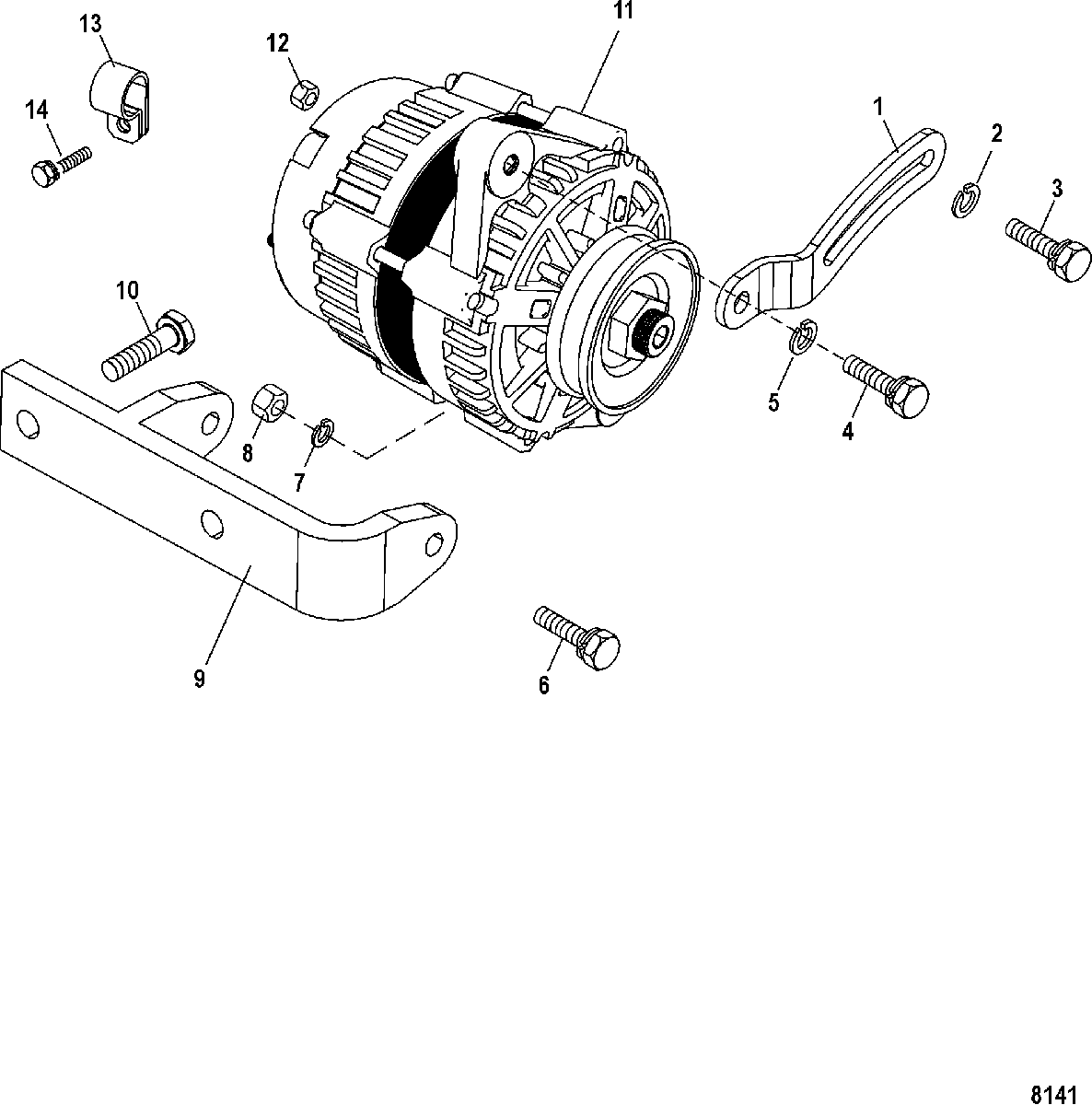

Alternator, Delco (S/N-0L382122 And Up) для Mercruiser - 3.0L GM 181 I/L4 0L097000 THRU 0W301999

  • №
    Артикул
    Название
  • 1
    58333 BRACE, Alternator Adjusting
    BRACE, Alternator Adjusting
  • 2
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 3
    12-26168 WASHER
    WASHER
  • 4
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 5
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 6
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange
    SCREW, (.312-18 x 1.500) Hex Flange
  • 7
    12-57792 WASHER
    SN# 0M326293 & Below
    WASHER
    SN# 0M326293 & Below
  • 8
    11-26484 NUT, (.312-18)
    NUT, (.312-18)
  • 9
    861734 BRACKET, Alternator
    BRACKET, Alternator
  • 10
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 11
    862030T01 ALTERNATOR ASSEMBLY
    (No Service Parts Available) SN# 0M326293 & Below
    ALTERNATOR ASSEMBLY
    (No Service Parts Available) SN# 0M326293 & Below
  • 11
    862030T01 ALTERNATOR ASSEMBLY
    SN# 0M326293 & Up
    ALTERNATOR ASSEMBLY
    SN# 0M326293 & Up
  • 12
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 13
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
  • 14
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
