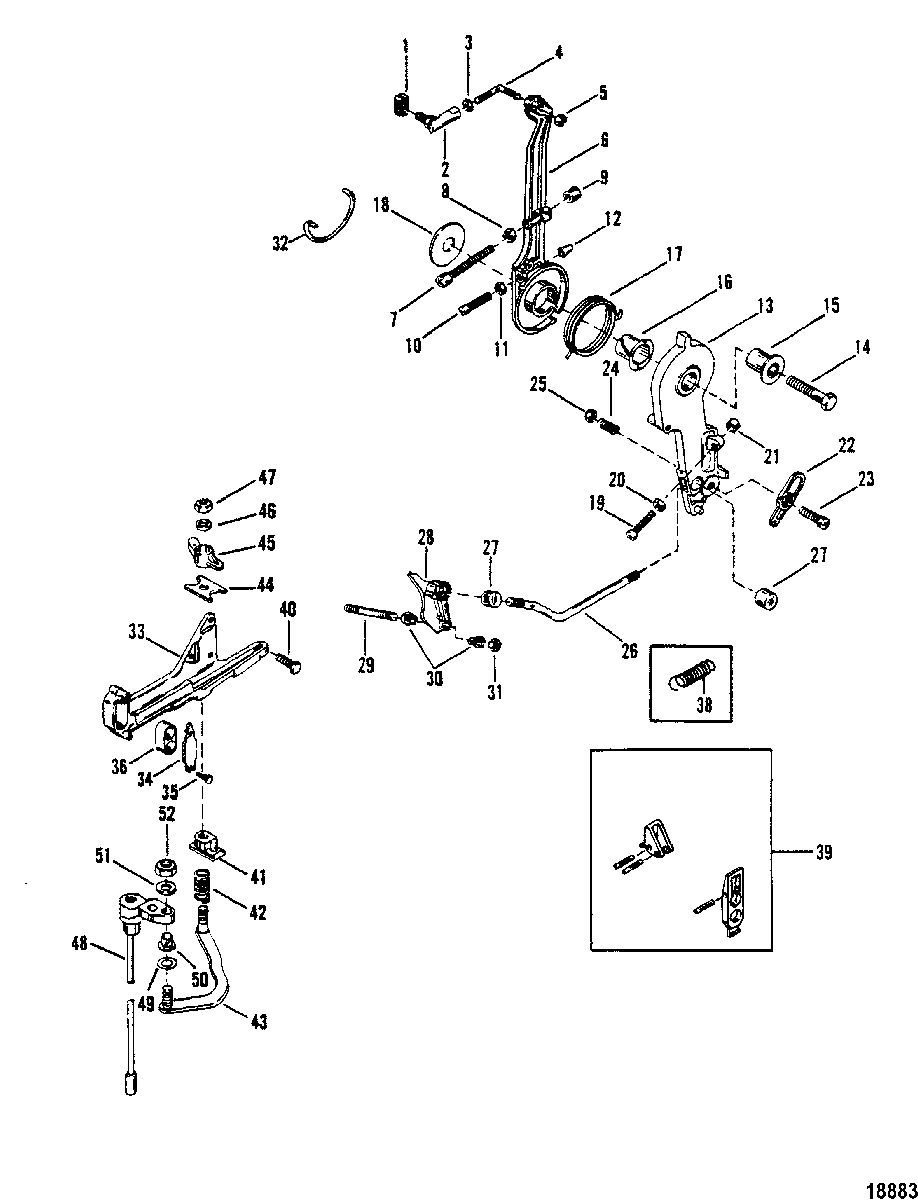

Throttle Lever and Shift Shaft для Mariner - V-200 5624878 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    74897T PIVOT
    PIVOT
  • 2
    62459T BALL JOINT ASSEMBLY
    BALL JOINT ASSEMBLY
  • 3
    11-45076 NUT, (#10-32)
    NUT, (#10-32)
  • 4
    76035 ROD
    ROD
  • 5
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
  • 6
    41094A3 LEVER ASSEMBLY
    LEVER ASSEMBLY
  • 7
    10-64022 SCREW, (.250-20 x 2.125)
    (1/4-20 THREAD)
    SCREW, (.250-20 x 2.125)
    (1/4-20 THREAD)
  • 8
    11-64015 NUT, (.250-20)
    (1/4-20 THREAD)
    NUT, (.250-20)
    (1/4-20 THREAD)
  • 9
    26852 CAP
    (1/4-20 THREAD)
    CAP
    (1/4-20 THREAD)
  • 7
    10-75168 SCREW
    (1/4-28 THREAD)
    SCREW
    (1/4-28 THREAD)
  • 8
    11-29598 NUT, (.250-28)
    (1/4-28 THREAD)
    NUT, (.250-28)
    (1/4-28 THREAD)
  • 9
    52023 CAP
    (1/4-28 THREAD)
    CAP
    (1/4-28 THREAD)
  • 10
    10-69560 SCREW, (.190-32 X 1.25)
    SCREW, (.190-32 X 1.25)
  • 11
    11-68219 NUT, (#10-32)
    NUT, (#10-32)
  • 12
    48039 CAP
    CAP
  • 13
    410952 LEVER
    LEVER
  • 14
    10-818165 SCREW, (.375-16 x 1.75)
    SCREW, (.375-16 x 1.75)
  • 15
    23-55164 BUSHING
    BUSHING
  • 16
    23-55171 BUSHING
    BUSHING
  • 17
    24-55162 SPRING
    SPRING
  • 18
    12-46765 WASHER
    WASHER
  • 19
    10-64022 SCREW, (.250-20 x 2.125)
    SCREW, (.250-20 x 2.125)
  • 20
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 21
    26852 CAP
    CAP
  • 22
    39483 LATCH
    LATCH
  • 23
    10-69026 SCREW, (.250-28 x .88)
    SCREW, (.250-28 x .88)
  • 24
    24-20099 SPRING
    SPRING
  • 25
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 26
    79949 ROD
    (4-1/2")
    ROD
    (4-1/2")
  • 26
    95829 THROTTLE CONTROL ROD
    (6")
    THROTTLE CONTROL ROD
    (6")
  • 27
    60572 BARREL
    BARREL
  • 28
    79951 THROTTLE CAM
    (CASTING #79950)
    THROTTLE CAM
    (CASTING #79950)
  • 28
    95791 THROTTLE CAM
    (CASTING #95790)
    THROTTLE CAM
    (CASTING #95790)
  • 29
    16-20353 STUD, (.250-28 x 1.750)
    STUD, (.250-28 x 1.750)
  • 30
    23-26856 BUSHING
    BUSHING
  • 31
    11-36069 NUT
    NUT
  • 32
    24-41050 SPRING
    SPRING
  • 33
    814283A2 BRACKET
    BRACKET
  • 34
    98889 LATCH
    (DESIGN II)
    LATCH
    (DESIGN II)
  • 35
    10-42975 SCREW, Drive
    (DESIGN II)
    SCREW, Drive
    (DESIGN II)
  • 36
    39519 CUP
    (DESIGN II)
    CUP
    (DESIGN II)
  • 37
    24-91821 SPRING
    SPRING
  • 38
    24-79977 SPRING
    SPRING
  • 39
    87609A1 LEVER KIT
    (DESIGN I)
    LEVER KIT
    (DESIGN I)
  • 40
    10-53167T SCREW, (.312-18 x .880)
    SCREW, (.312-18 x .880)
  • 41
    37896 GUIDE BLOCK
    GUIDE BLOCK
  • 42
    24-20099 SPRING
    SPRING
  • 43
    67073A1 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 44
    52100 WEAR PLATE
    WEAR PLATE
  • 45
    8M0036768 LATCH
    LATCH
  • 46
    12-35462 WASHER, (.2656 x .625 x .0625)
    WASHER, (.2656 x .625 x .0625)
  • 47
    11-36069 NUT
    NUT
  • 48
    79932A16 SHIFT SHAFT ASSEMBLY
    (LONG)
    SHIFT SHAFT ASSEMBLY
    (LONG)
  • 48
    79932A17 SHIFT SHAFT ASSEMBLY
    ASSEMBLY (X-LONG)
    SHIFT SHAFT ASSEMBLY
    ASSEMBLY (X-LONG)
  • 49
    13-29720 WAVE WASHER
    WAVE WASHER
  • 50
    23-26600 BUSHING
    BUSHING
  • 51
    12-35462 WASHER, (.2656 x .625 x .0625)
    WASHER, (.2656 x .625 x .0625)
  • 52
    11-36069 NUT
    NUT
