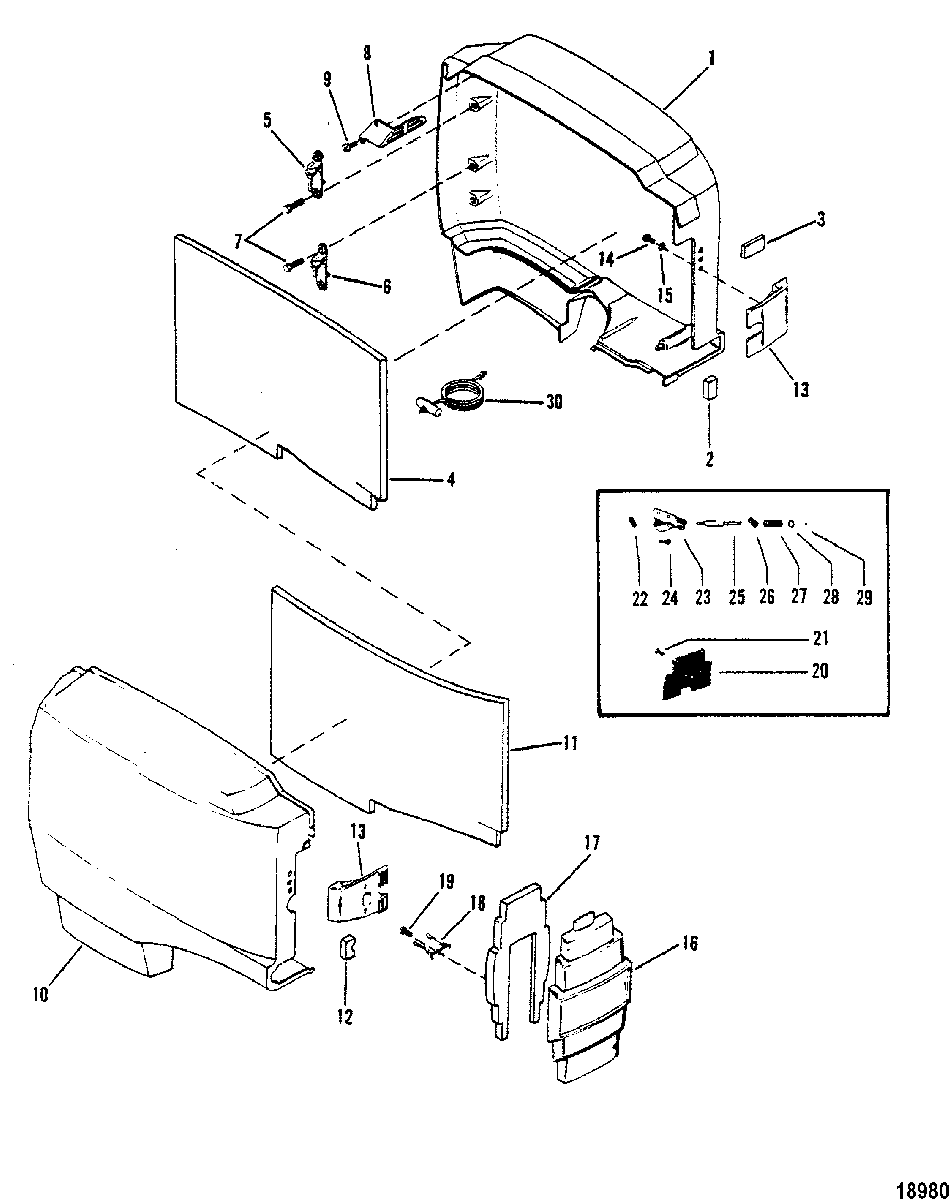

Cowls and Front Cover для Mariner - V-200 5624878 THRU 0C100860
-
№АртикулНазвание
-
12151-7620A4 COWL ASSEMBLY (BLACK)
(USE WITH DESIGN "A" LATCH)COWL ASSEMBLY (BLACK)
(USE WITH DESIGN "A" LATCH) -
12151-7620A22 COWL ASSEMBLY (GRAY)
(USE WITH DESIGN "A" LATCH)COWL ASSEMBLY (GRAY)
(USE WITH DESIGN "A" LATCH) -
12151-7523A2 PORT COWL (BLACK)
(USE WITH DESIGN "B" LATCH)PORT COWL (BLACK)
(USE WITH DESIGN "B" LATCH) -
12151-7523A18 PORT COWL (GRAY)
(USE WITH DESIGN "B" LATCH)PORT COWL (GRAY)
(USE WITH DESIGN "B" LATCH) -
267260 SEALSEAL
-
367258 PADPAD
-
488227 BLANKETBLANKET
-
5879871 BRACKET, UPPERBRACKET, UPPER
-
6879851 BRACKET, LOWERBRACKET, LOWER
-
710-37562 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
868049 SHIELD
(STARBOARD)SHIELD
(STARBOARD) -
868048 SHIELD
(PORT)SHIELD
(PORT) -
910-48409 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
102150-7619A1 COWL ASSEMBLY
(BLACK)(USE WITH DESIGN "A" LATCH)COWL ASSEMBLY
(BLACK)(USE WITH DESIGN "A" LATCH) -
102150-7619A5 COWL ASSEMBLY
(GRAY)(USE WITH DESIGN "A" LATCH)COWL ASSEMBLY
(GRAY)(USE WITH DESIGN "A" LATCH) -
102150-7524A4 STARBOARD COWL
(GRAY)(USE WITH DESIGN "B" LATCH)STARBOARD COWL
(GRAY)(USE WITH DESIGN "B" LATCH) -
102150-7524A1 STARBOARD COWL
(BLACK)(USE WITH DESIGN "B" LATCH)STARBOARD COWL
(BLACK)(USE WITH DESIGN "B" LATCH) -
1188227 BLANKETBLANKET
-
1299444 SEALSEAL
-
1397461A2 LATCH (PORT/STARBOARD)
(DESIGN "B" LATCH)LATCH (PORT/STARBOARD)
(DESIGN "B" LATCH) -
1410-48409 SCREW, (#10-16 x .625)
(DESIGN "B" LATCH)SCREW, (#10-16 x .625)
(DESIGN "B" LATCH) -
1512-72761 WASHER
(DESIGN "B" LATCH)WASHER
(DESIGN "B" LATCH) -
162149-7532A2 COWL FRONT COVER ASSEMBLY
(BLACK)(DESIGN "B" LATCH)COWL FRONT COVER ASSEMBLY
(BLACK)(DESIGN "B" LATCH) -
162149-7532A23 COWL FRONT COVER ASSEMBLY
(GRAY)(DESIGN "B" LATCH)COWL FRONT COVER ASSEMBLY
(GRAY)(DESIGN "B" LATCH) -
1790984 SOUND BLANKET
(DESIGN "B" LATCH)SOUND BLANKET
(DESIGN "B" LATCH) -
1887907 HOOK
(DESIGN "B" LATCH)HOOK
(DESIGN "B" LATCH) -
1910-95700 SCREW, (#10-16 x .500)
(DESIGN "B" LATCH)SCREW, (#10-16 x .500)
(DESIGN "B" LATCH) -
162149-5399A3 FRONT COVER (BLACK)
(DESIGN "A" LATCH)FRONT COVER (BLACK)
(DESIGN "A" LATCH) -
162149-5399A16 FRONT COVER (GRAY)
(DESIGN "A" LATCH)FRONT COVER (GRAY)
(DESIGN "A" LATCH) -
1767615 BLANKET
(DESIGN "A" LATCH)BLANKET
(DESIGN "A" LATCH) -
1861158T HOOK
(DESIGN "A" LATCH)HOOK
(DESIGN "A" LATCH) -
1910-75162 SCREW
(DESIGN "A" LATCH)SCREW
(DESIGN "A" LATCH) -
2067261 SHIELD
(DESIGN "A" LATCH)SHIELD
(DESIGN "A" LATCH) -
2110-35519 SCREW, (#10-16 X .50)
(DESIGN "A" LATCH)SCREW, (#10-16 X .50)
(DESIGN "A" LATCH) -
2262628 BARREL
(DESIGN "A" LATCH)BARREL
(DESIGN "A" LATCH) -
2346785A5 COWL LATCH ASSEMBLY
(DESIGN "A" LATCH)COWL LATCH ASSEMBLY
(DESIGN "A" LATCH) -
2410-31312 SCREW, (#10-32 x 0.875)
(DESIGN "A" LATCH)SCREW, (#10-32 x 0.875)
(DESIGN "A" LATCH) -
2515222 BAR
(DESIGN "A" LATCH)BAR
(DESIGN "A" LATCH) -
2662629 BARREL
(DESIGN "A" LATCH)BARREL
(DESIGN "A" LATCH) -
2724-62624 SPRING
(DESIGN "A" LATCH)SPRING
(DESIGN "A" LATCH) -
2812-30164 WASHER, (.192 x .375 x .0312)
(DESIGN "A" LATCH)WASHER, (.192 x .375 x .0312)
(DESIGN "A" LATCH) -
2911-859124 NUT, (#10-32)
(DESIGN "A" LATCH)NUT, (#10-32)
(DESIGN "A" LATCH) -
3047341A11 ROPE AND HANDLE KIT (MANUAL STARTING)ROPE AND HANDLE KIT (MANUAL STARTING)
