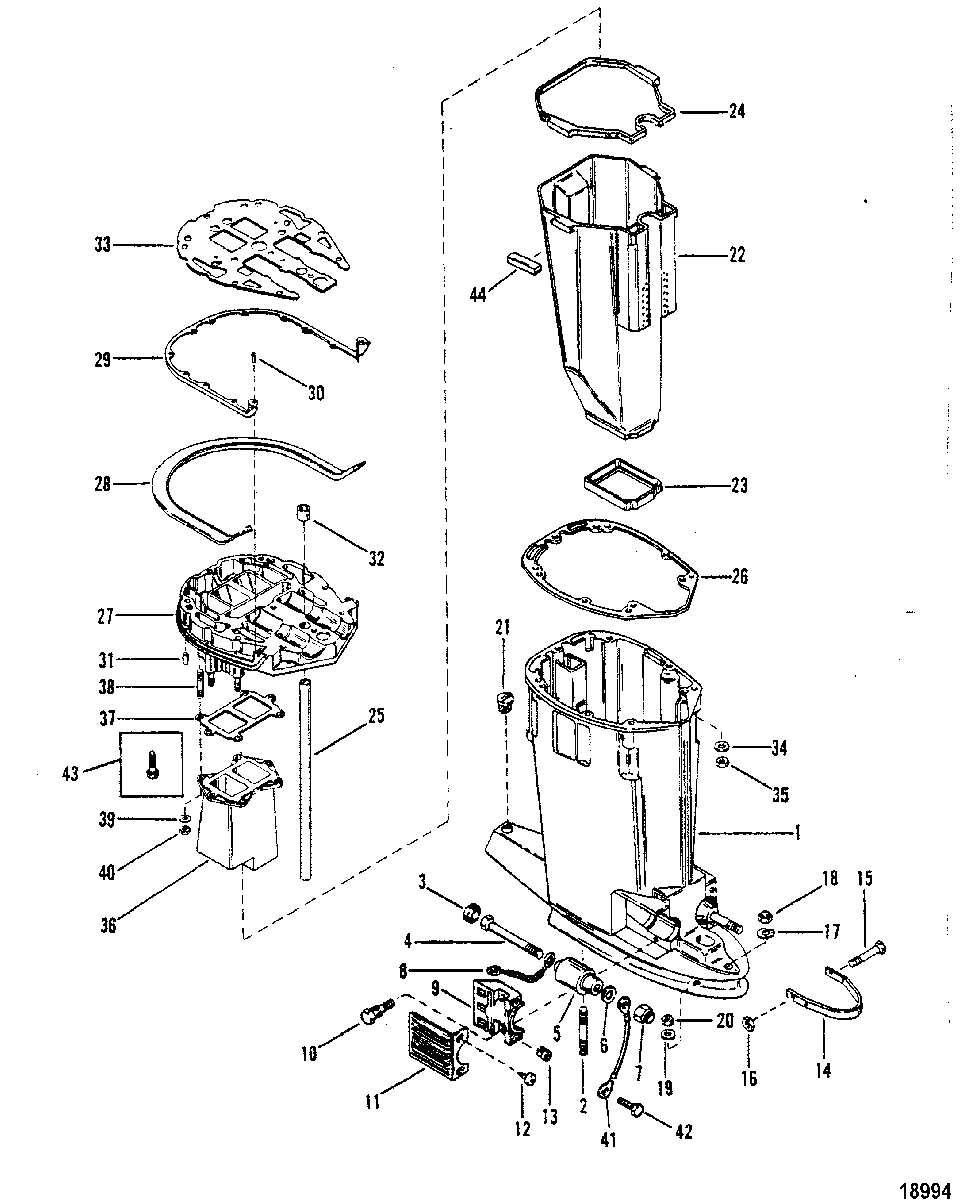

Driveshaft Housing and Exhaust Tube для Mariner - V-200 5624878 THRU 0C100860
-
№АртикулНазвание
-
1NLA No Longer Available, Driveshaft Housing
(Black) SN# Merc-5363917 & BelowNo Longer Available, Driveshaft Housing
(Black) SN# Merc-5363917 & Below -
11590-8343A7 DRIVESHAFT HOUSIG ASSEMBLY
(Black) SN# Merc-5363918/Mariner-5624878 & UpDRIVESHAFT HOUSIG ASSEMBLY
(Black) SN# Merc-5363918/Mariner-5624878 & Up -
11590-8343A8 DRIVESHAFT HOUSING ASSEMBLY
(Gray)DRIVESHAFT HOUSING ASSEMBLY
(Gray) -
216-56295 STUD, (.437 x 2.69)
(LONG SHAFT)STUD, (.437 x 2.69)
(LONG SHAFT) -
216-74732 STUD
(X-LONG SHAFT)STUD
(X-LONG SHAFT) -
325067 BUMPERBUMPER
-
410-898831 SCREW, (.500-20 x 6.00)SCREW, (.500-20 x 6.00)
-
577327 MOUNT, LOWERMOUNT, LOWER
-
577327 MOUNT
(HEAVY DUTY)MOUNT
(HEAVY DUTY) -
612-49339 WASHER, (.8125)WASHER, (.8125)
-
711-25096 NUTNUT
-
888238A10 GROUND WIRE ASSEMBLYGROUND WIRE ASSEMBLY
-
954-8M0036782 CLAMPCLAMP
-
1010-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
11100-8M4500752 COVER
(BLACK)COVER
(BLACK) -
11100-8M4500752 COVER
(GRAY)COVER
(GRAY) -
1210-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
1311-35521 NUTNUT
-
1467703 STRAPSTRAP
-
1510-67769 SCREW, (.375-24 X 4.00)SCREW, (.375-24 X 4.00)
-
1611-25269 NUTNUT
-
1712-73862 WASHERWASHER
-
1811-29489 NUTNUT
-
1912-45176 WASHER, (.453 x .812 x .105)WASHER, (.453 x .812 x .105)
-
2011-34933 NUT, (.437-20)NUT, (.437-20)
-
2119-64649 PLUGPLUG
-
22NLA No Longer Available, Exhaust Tube
SN# Merc-5363917 & BelowNo Longer Available, Exhaust Tube
SN# Merc-5363917 & Below -
2289743 EXHAUST TUBE
SN# Merc-5363918/Mariner-5624878 & UpEXHAUST TUBE
SN# Merc-5363918/Mariner-5624878 & Up -
2366350001 SEAL (LOWER)SEAL (LOWER)
-
2486027 SEAL (UPPER)
SN# Merc-5363918/Mariner-5624878 & UpSEAL (UPPER)
SN# Merc-5363918/Mariner-5624878 & Up -
2532-8M0042788 TUBE
(LONG SHAFT)TUBE
(LONG SHAFT) -
2532-8M0042790 TUBE
(X-LONG SHAFT)TUBE
(X-LONG SHAFT) -
2627-991734 GASKETGASKET
-
27NLA No Longer Available, Plate Assembly
SN# Merc-5363917 & BelowNo Longer Available, Plate Assembly
SN# Merc-5363917 & Below -
2741945A6 PLATE ASSEMBLY
SN# Merc-5363918/Mariner-5624878 & UpPLATE ASSEMBLY
SN# Merc-5363918/Mariner-5624878 & Up -
28707482 SEALSEAL
-
2968011 BRACKETBRACKET
-
3010-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3117-43044 PIN, Dowel (.375 x .625) (Without Hole)PIN, Dowel (.375 x .625) (Without Hole)
-
3226-38970 SEALSEAL
-
3327-991772 GASKETGASKET
-
3412-20553 WASHERWASHER
-
3511-69254 NUTNUT
-
3641941T EXHAUST DIFFUSEREXHAUST DIFFUSER
-
3727-782461 GASKETGASKET
-
3816-66021 STUDSTUD
-
3912-20533 WASHERWASHER
-
4011-30506 NUT, (.250-28)NUT, (.250-28)
-
4188238A10 GROUND WIRE ASSEMBLYGROUND WIRE ASSEMBLY
-
4210-41508 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
4310-90192 SCREW, (.250-20 x .750)
(LATER MODELS)SCREW, (.250-20 x .750)
(LATER MODELS) -
44NLA No Longer Available, Boot
SN# Merc-5363917 & BelowNo Longer Available, Boot
SN# Merc-5363917 & Below -
--NLA No Longer Available, Spacer Assembly
(X-LONG)No Longer Available, Spacer Assembly
(X-LONG) -
--17-43044 PIN, Dowel (.375 x .625) (Without Hole)
(X-LONG)PIN, Dowel (.375 x .625) (Without Hole)
(X-LONG) -
-27-89221A88 GASKET SET
SN# Merc-6203991/Mariner-6201970 & UpGASKET SET
SN# Merc-6203991/Mariner-6201970 & Up -
-27-89221A80 GASKET SET
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969GASKET SET
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969
