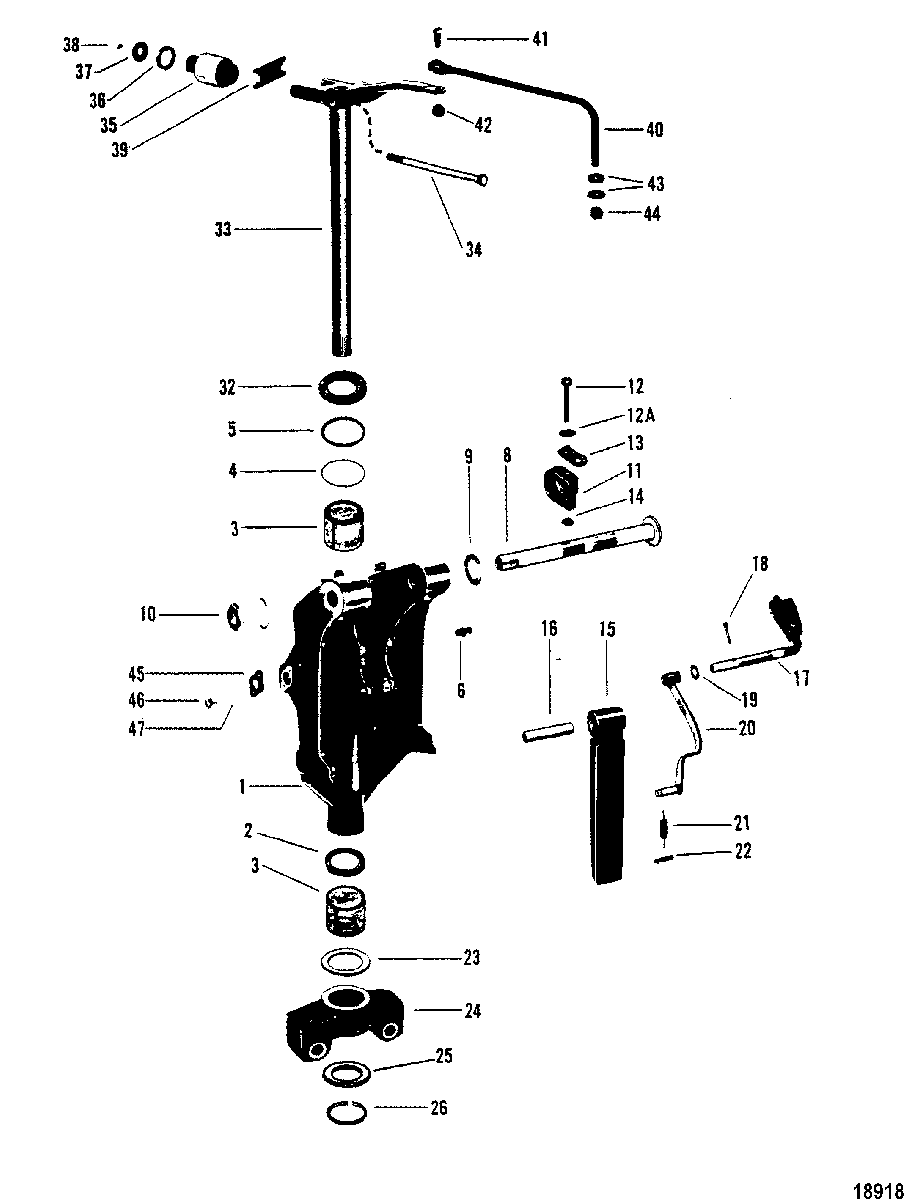

Swivel Bracket(Merc S/N-USA-5464485/AUS-8061769 & Below ) для Mariner - V-200 5624878 THRU 0C100860
-
№АртикулНазвание
-
1NLA No Longer Available, Swivel BracketNo Longer Available, Swivel Bracket
-
226-87735 SEAL, OilSEAL, Oil
-
323-818764 BUSHINGBUSHING
-
425-33466 O-RINGO-RING
-
523-67668 SPACERSPACER
-
622-74036 FITTING, GreaseFITTING, Grease
-
8NLA No Longer Available, Tilt TubeNo Longer Available, Tilt Tube
-
9NLA No Longer Available, ShimNo Longer Available, Shim
-
1011-858869 NUT, (.875-14)NUT, (.875-14)
-
11NLA No Longer Available, ClampNo Longer Available, Clamp
-
12NLA No Longer Available, ScrewNo Longer Available, Screw
-
12A12-30164 WASHER, (.192 x .375 x .0312)WASHER, (.192 x .375 x .0312)
-
1354-75275 CLAMPCLAMP
-
14NLA No Longer Available, NutNo Longer Available, Nut
-
15NLA No Longer Available, BraceNo Longer Available, Brace
-
16NLA No Longer Available, PinNo Longer Available, Pin
-
17NLA No Longer Available, HandleNo Longer Available, Handle
-
1818-25191 COTTER PINCOTTER PIN
-
1912-36001 WASHERWASHER
-
20NLA No Longer Available, LinkNo Longer Available, Link
-
21NLA No Longer Available, SpringNo Longer Available, Spring
-
22NLA No Longer Available, PinNo Longer Available, Pin
-
2313-78854 WAVE WASHERWAVE WASHER
-
24878182T01 BOTTOM YOKEBOTTOM YOKE
-
25NLA No Longer Available, Washer (Use where Applicable)No Longer Available, Washer (Use where Applicable)
-
2653-67684 RING, RetainingRING, Retaining
-
3212-67670 WASHERWASHER
-
3317-840792A1 SWIVEL PIN/STEERING ARMSWIVEL PIN/STEERING ARM
-
3410-8M0000491 SCREW, (.437-20 x 7.50)SCREW, (.437-20 x 7.50)
-
3577326 MOUNTMOUNT
-
3577326 MOUNT
(HEAVY DUTY)MOUNT
(HEAVY DUTY) -
3612-66921 WASHERWASHER
-
3712-78688 WASHERWASHER
-
3811-34933 NUT, (.437-20)NUT, (.437-20)
-
39NLA No Longer Available, BumperNo Longer Available, Bumper
-
40NLA No Longer Available, Steering LinkNo Longer Available, Steering Link
-
4110-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
4211-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
4312-34931 WASHER, (.406 x .734 x .063 Stainless Steel)WASHER, (.406 x .734 x .063 Stainless Steel)
-
4411-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
45NLA No Longer Available, CoverNo Longer Available, Cover
-
4610-28635 SCREW, (.250-20 x .620)SCREW, (.250-20 x .620)
-
4713-26992 LOCKWASHER, (.250)LOCKWASHER, (.250)
