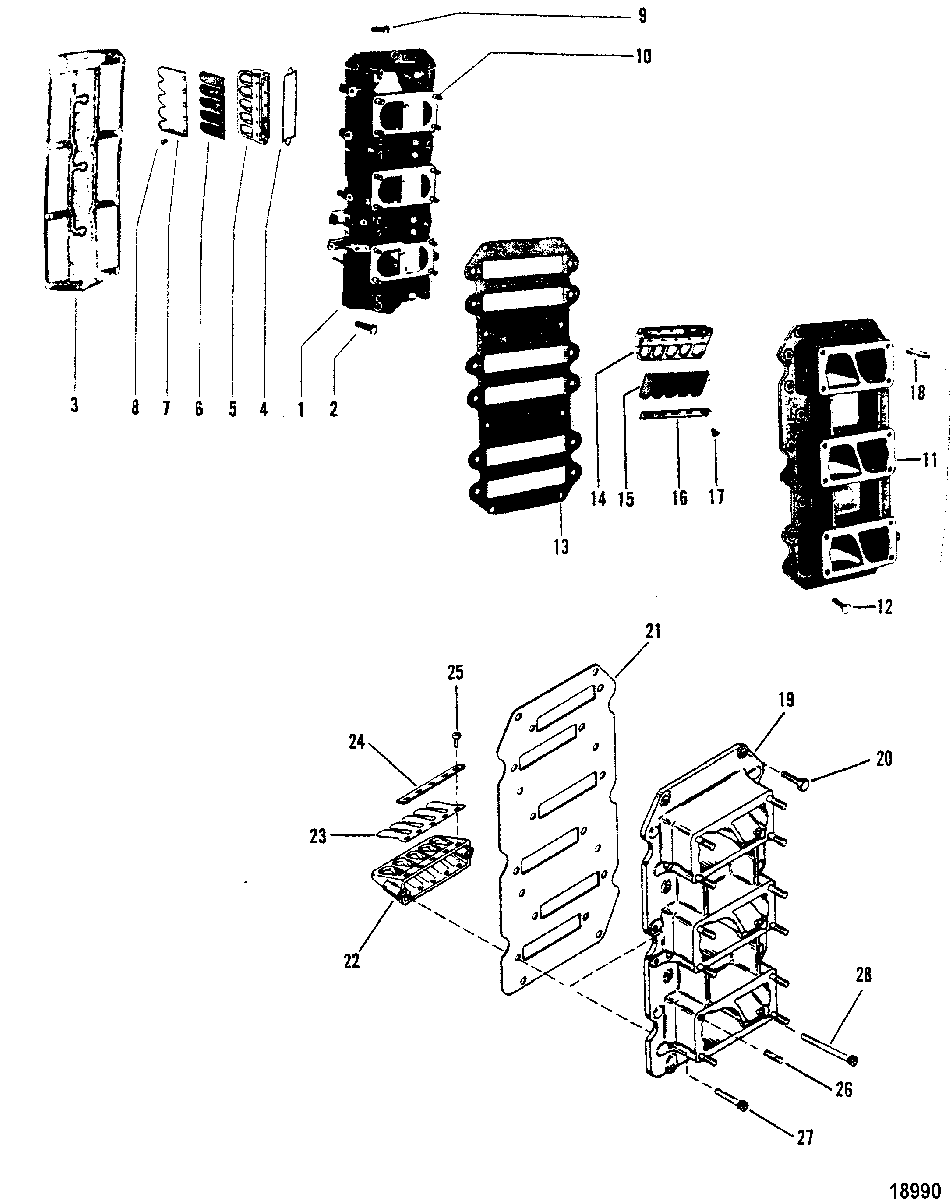

Reed Block для Mariner - V-200 5624878 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    NLA No Longer Available, Housing-Reed Block
    (VERTICAL 5 PETAL REED)
    No Longer Available, Housing-Reed Block
    (VERTICAL 5 PETAL REED)
  • 2
    10-24878 SCREW, (.250-20 x 1.25)
    (VERTICAL 5 PETAL REED)
    SCREW, (.250-20 x 1.25)
    (VERTICAL 5 PETAL REED)
  • 2
    10-69093 SCREW, (.25-20 X 1.50)
    (VERTICAL 5 PETAL REED)
    SCREW, (.25-20 X 1.50)
    (VERTICAL 5 PETAL REED)
  • 3
    27-935361 GASKET
    (VERTICAL 5 PETAL REED)
    GASKET
    (VERTICAL 5 PETAL REED)
  • 4
    27-657443 GASKET
    (VERTICAL 5 PETAL REED)
    GASKET
    (VERTICAL 5 PETAL REED)
  • 5
    75953 REED BLOCK
    (VERTICAL 5 PETAL REED)
    REED BLOCK
    (VERTICAL 5 PETAL REED)
  • 6
    34-75362A1 REED ASSEMBLY
    (VERTICAL 5 PETAL REED)
    REED ASSEMBLY
    (VERTICAL 5 PETAL REED)
  • 7
    34-67298 REED STOP
    (VERTICAL 5 PETAL REED)
    REED STOP
    (VERTICAL 5 PETAL REED)
  • 8
    10-76497 SCREW (3/8")
    (VERTICAL 5 PETAL REED)
    SCREW (3/8")
    (VERTICAL 5 PETAL REED)
  • 9
    10-65746 SCREW, (.250-20 x .750)
    (VERTICAL 5 PETAL REED)
    SCREW, (.250-20 x .750)
    (VERTICAL 5 PETAL REED)
  • 10
    16-270372 STUD, (.250-28 x 1.125), CARB MOUNTING
    (VERTICAL 5 PETAL REED)
    STUD, (.250-28 x 1.125), CARB MOUNTING
    (VERTICAL 5 PETAL REED)
  • 11
    87628F2 REED BLOCK HOUSING
    (HORIZONTAL 7 PETAL REED)
    REED BLOCK HOUSING
    (HORIZONTAL 7 PETAL REED)
  • 12
    10-28668 SCREW, (.250-20 x .875)
    (HORIZONTAL 7 PETAL REED)
    SCREW, (.250-20 x .875)
    (HORIZONTAL 7 PETAL REED)
  • 13
    27-127754 GASKET
    (HORIZONTAL 7 PETAL REED)
    GASKET
    (HORIZONTAL 7 PETAL REED)
  • 14
    87692T3 BLOCK
    (HORIZONTAL 7 PETAL REED)
    BLOCK
    (HORIZONTAL 7 PETAL REED)
  • 15
    34-19719A1 REED ASSEMBLY
    (HORIZONTAL 7 PETAL REED)
    REED ASSEMBLY
    (HORIZONTAL 7 PETAL REED)
  • 16
    903911 REED CLAMP
    (HORIZONTAL 7 PETAL REED)
    REED CLAMP
    (HORIZONTAL 7 PETAL REED)
  • 17
    10-57583T SCREW, (#8-32 x .375)
    (HORIZONTAL 7 PETAL REED)
    SCREW, (#8-32 x .375)
    (HORIZONTAL 7 PETAL REED)
  • 18
    16-270372 STUD, (.250-28 x 1.125), CARB MOUNTING
    (HORIZONTAL 7 PETAL REED)
    STUD, (.250-28 x 1.125), CARB MOUNTING
    (HORIZONTAL 7 PETAL REED)
  • 19
    43517T HOUSING
    (HORIZONTAL 5 PETAL REED)
    HOUSING
    (HORIZONTAL 5 PETAL REED)
  • 20
    10-28668 SCREW, (.250-20 x .875)
    (HORIZONTAL 5 PETAL REED)
    SCREW, (.250-20 x .875)
    (HORIZONTAL 5 PETAL REED)
  • 21
    27-967611 GASKET
    (HORIZONTAL 5 PETAL REED)
    GASKET
    (HORIZONTAL 5 PETAL REED)
  • 22
    75953 REED BLOCK
    (HORIZONTAL 5 PETAL REED)
    REED BLOCK
    (HORIZONTAL 5 PETAL REED)
  • 23
    34-75362A1 REED ASSEMBLY
    (HORIZONTAL 5 PETAL REED)
    REED ASSEMBLY
    (HORIZONTAL 5 PETAL REED)
  • 24
    961832 REED CLAMP
    (HORIZONTAL 5 PETAL REED)
    REED CLAMP
    (HORIZONTAL 5 PETAL REED)
  • 25
    10-57583T SCREW, (#8-32 x .375)
    (HORIZONTAL 5 PETAL REED)
    SCREW, (#8-32 x .375)
    (HORIZONTAL 5 PETAL REED)
  • 26
    16-270372 STUD, (.250-28 x 1.125), CARB MOUNTING
    (HORIZONTAL 5 PETAL REED)
    STUD, (.250-28 x 1.125), CARB MOUNTING
    (HORIZONTAL 5 PETAL REED)
  • 27
    10-92160 SCREW, (.250-20 x .750)
    (HORIZONTAL 5 PETAL REED)
    SCREW, (.250-20 x .750)
    (HORIZONTAL 5 PETAL REED)
  • 28
    10-96529 SCREW, (.250-20 x 2.00)
    (HORIZONTAL 5 PETAL REED)
    SCREW, (.250-20 x 2.00)
    (HORIZONTAL 5 PETAL REED)
  • -
    27-89221A88 GASKET SET
    SN# Merc-6203991/Mariner-6201970 & Up
    GASKET SET
    SN# Merc-6203991/Mariner-6201970 & Up
  • -
    27-89221A80 GASKET SET
    SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969
    GASKET SET
    SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969
