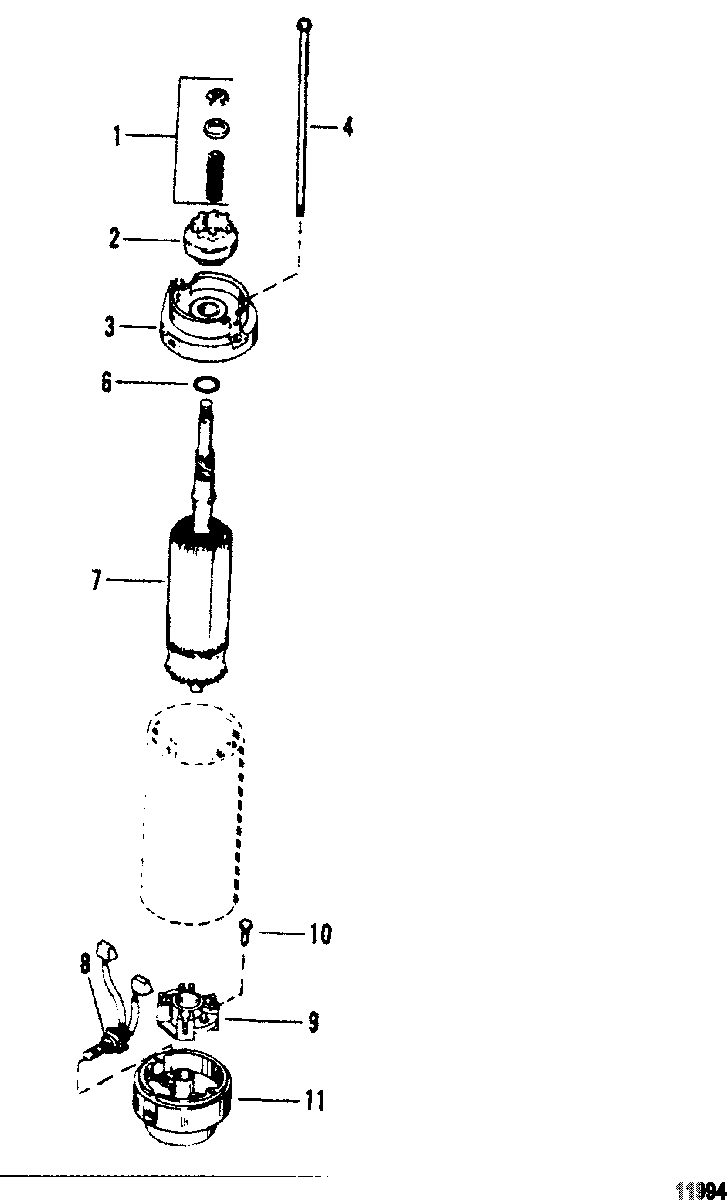

Starter Motor(9 Tooth Pinion) для Mariner - V-200 5624878 THRU 0C100860
-
№АртикулНазвание
-
-50-86976 STARTER MOTORSTARTER MOTOR
-
190646 DRIVE KITDRIVE KIT
-
2898265015 PINIONPINION
-
375660 PLATEPLATE
-
410-74968 BOLTBOLT
-
6N.S.S. Not Sold Seperate, Washer Washer (AMERICAN BOSCH #WA3122)Not Sold Seperate, Washer Washer (AMERICAN BOSCH #WA3122)
-
786178 ARMATUREARMATURE
-
8898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
9898265014 HOLDERHOLDER
-
10N.S.S. Not Sold Seperate, Screw (AMER.BOSCH #02441-22-SC-30SM)Not Sold Seperate, Screw (AMER.BOSCH #02441-22-SC-30SM)
-
1115386001 END CAPEND CAP
