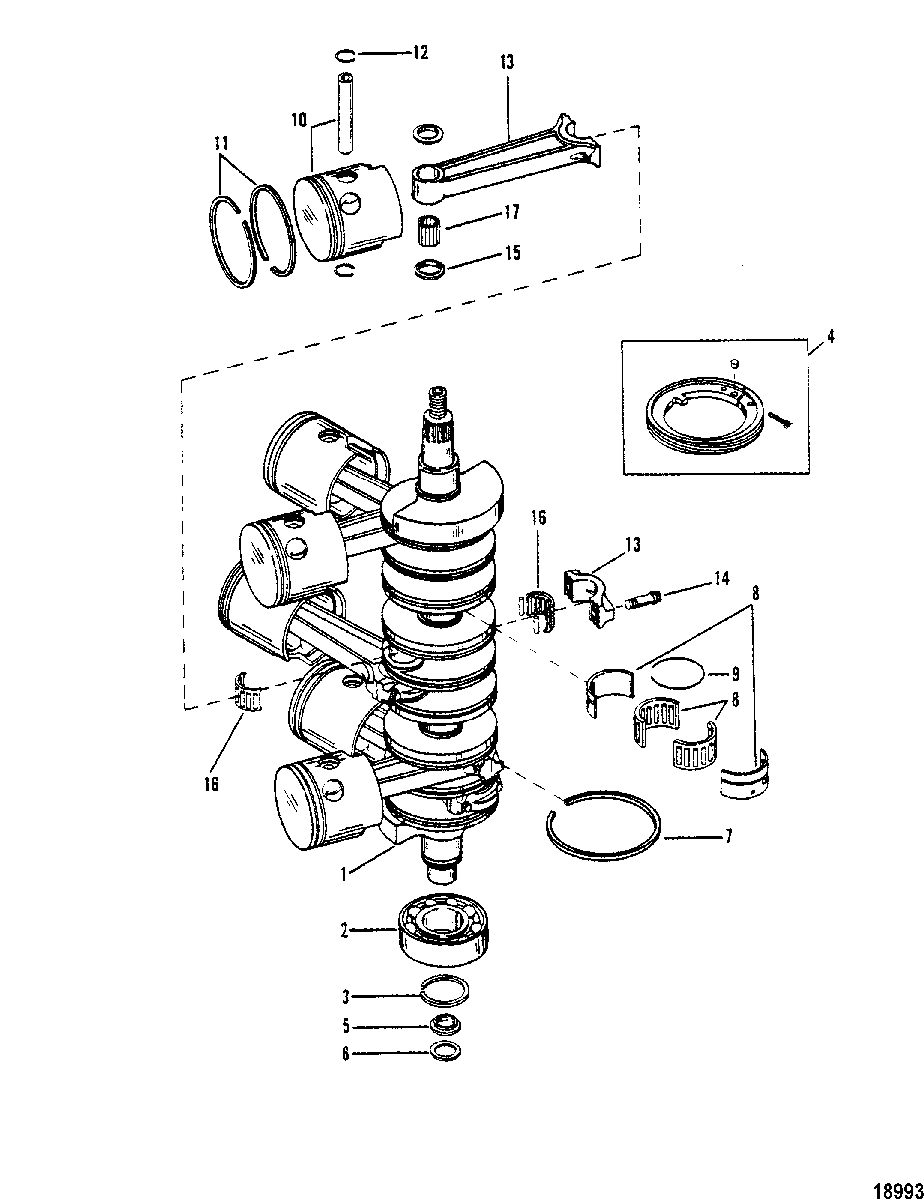

Crankshaft, Pistons, and Connecting Rods для Mariner - V-200 5624878 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    455-8745T5 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-67923T BEARING, Ball (LOWER)
    BEARING, Ball (LOWER)
  • 3
    53-67446 RING
    RING
  • 4
    43-99727A1 DRIVE GEAR
    DRIVE GEAR
  • 5
    54196A6 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 6
    65800 PACKING
    PACKING
  • 7
    39-67377T RING, SEALING
    (.124 THICK)
    RING, SEALING
    (.124 THICK)
  • 7
    39-78633 RING, SEALING
    (.139 THICK)
    RING, SEALING
    (.139 THICK)
  • 8
    31-93495T ROLLER BEARING
    (1 PIECE)
    ROLLER BEARING
    (1 PIECE)
  • 8
    31-88903T BEARING RACE
    (2 PIECE)
    BEARING RACE
    (2 PIECE)
  • 8
    31-67445 ROLLER BEARING
    (2 PIECE)
    ROLLER BEARING
    (2 PIECE)
  • 9
    53-67444 RETAINING RING
    RETAINING RING
  • 10
    766-8666T41 PISTON
    (STARBOARD - STANDARD)
    PISTON
    (STARBOARD - STANDARD)
  • 10
    NLA No Longer Available, Piston
    (STARBOARD - .030 O.S.)
    No Longer Available, Piston
    (STARBOARD - .030 O.S.)
  • 10
    766-8667T41 PISTON
    (PORT - STANDARD)
    PISTON
    (PORT - STANDARD)
  • 10
    NLA No Longer Available, Piston
    (PORT - .030 O.S.)
    No Longer Available, Piston
    (PORT - .030 O.S.)
  • 11
    39-813011A12 PISTON RING
    (STANDARD)
    PISTON RING
    (STANDARD)
  • 11
    NLA No Longer Available, Piston Ring
    (.030 O.S.)
    No Longer Available, Piston Ring
    (.030 O.S.)
  • 12
    53-857196 RING, Lock
    RING, Lock
  • 13
    636-8119A6 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 14
    10-93886 SCREW, (.3125-28 X .875)
    SCREW, (.3125-28 X .875)
  • 14
    10-76349 SCREW, (.3125-24 X 1.00)
    SCREW, (.3125-24 X 1.00)
  • 15
    12-8M0032839 WASHER
    WASHER
  • 16
    31-8M0045428 BEARING KIT
    BEARING KIT
  • 17
    29-67483 NEEDLE BEARING
    NEEDLE BEARING
  • -
    27-89221A88 GASKET SET
    SN# Merc-6203991/Mariner-6201970 & Up
    GASKET SET
    SN# Merc-6203991/Mariner-6201970 & Up
  • -
    27-89221A80 GASKET SET
    SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969
    GASKET SET
    SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969
