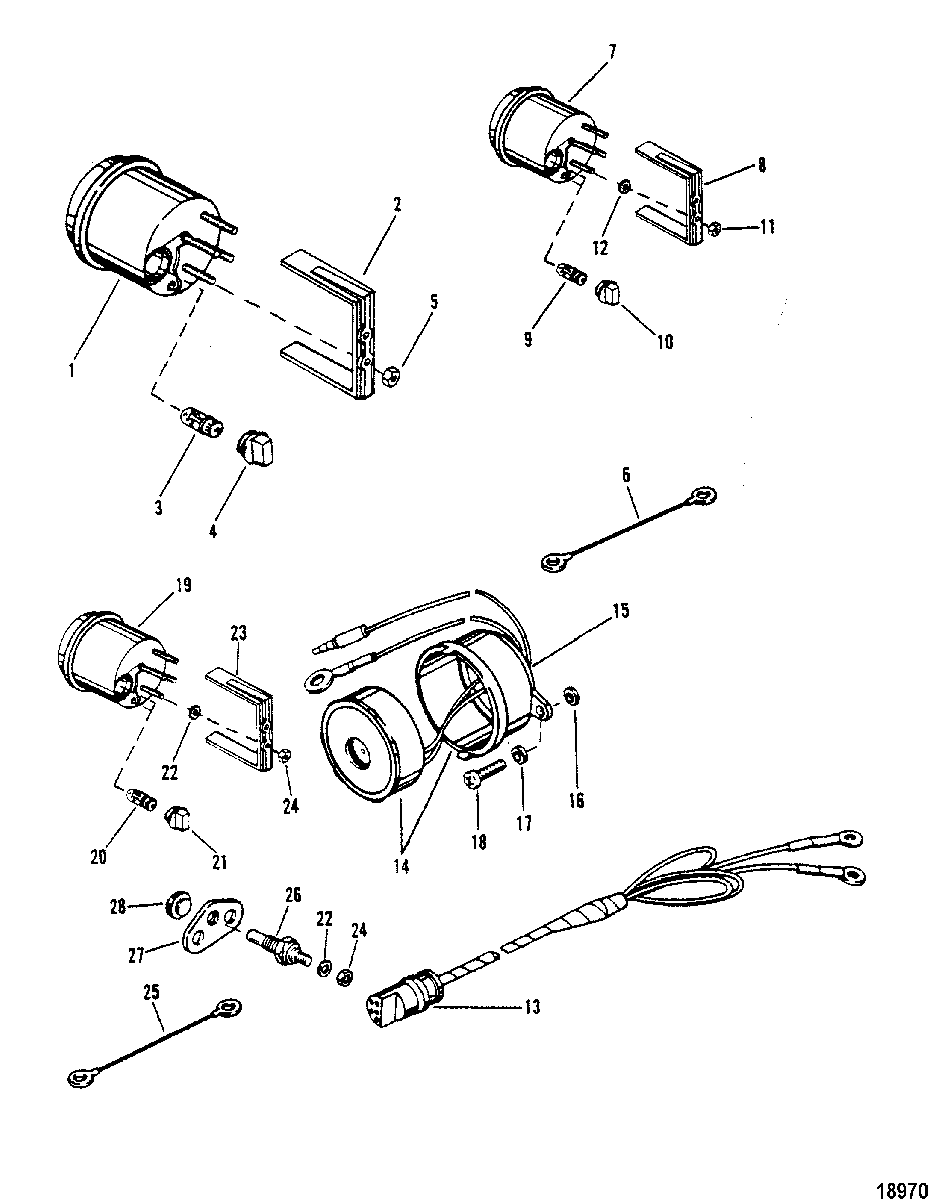

Instrumentation для Mariner - V-200 5624878 THRU 0C100860

  • №
    Артикул
    Название
  • 1
    79-895283Q43 TACHOMETER
    TACHOMETER
  • 2
    79101T BRACKET
    BRACKET
  • 3
    88-72729 LIGHT BULB
    LIGHT BULB
  • 4
    88-79888 SOCKET, Light Bulb
    SOCKET, Light Bulb
  • 5
    11-26419 NUT, (#8-32)
    NUT, (#8-32)
  • 6
    84-86322A7 CABLE ASSEMBLY, (1.50 Feet-Black)
    CABLE ASSEMBLY, (1.50 Feet-Black)
  • 6
    84-86323A5 CABLE ASSEMBLY, (1.50 Feet-Purple)
    CABLE ASSEMBLY, (1.50 Feet-Purple)
  • 7
    79-895292Q41 TRIM GAUGE
    TRIM GAUGE
  • 8
    79480 BRACKET
    BRACKET
  • 9
    88-72729 LIGHT BULB
    LIGHT BULB
  • 10
    88-79888 SOCKET, Light Bulb
    SOCKET, Light Bulb
  • 11
    11-26419 NUT, (#8-32)
    NUT, (#8-32)
  • 12
    13-26995 LOCKWASHER, (#8)
    LOCKWASHER, (#8)
  • 13
    84-86396A8 HARNESS ASSEMBLY, Tachometer (5.00 Feet)
    HARNESS ASSEMBLY, Tachometer (5.00 Feet)
  • 14
    68878A6 ALARM HORN AND WIRE ASSEMBLY
    ALARM HORN AND WIRE ASSEMBLY
  • 15
    68879 COVER
    COVER
  • 16
    23-8M0084588 SPACER
    SPACER
  • 17
    12-24676 WASHER, (.200 x .440 x .032)
    WASHER, (.200 x .440 x .032)
  • 18
    10-35401 SCREW, (#10 x 1.00)
    SCREW, (#10 x 1.00)
  • 19
    79-895287Q41 TEMPERATURE GAUGE
    TEMPERATURE GAUGE
  • 20
    88-72729 LIGHT BULB
    LIGHT BULB
  • 21
    88-79888 SOCKET, Light Bulb
    SOCKET, Light Bulb
  • 22
    12-26427 WASHER
    WASHER
  • 23
    79480 BRACKET
    BRACKET
  • 24
    11-26419 NUT, (#8-32)
    NUT, (#8-32)
  • 25
    84-86323A2 CABLE ASSEMBLY, (2.00 Feet - Purple)
    CABLE ASSEMBLY, (2.00 Feet - Purple)
  • 25
    84-61600A16 CABLE ASSEMBLY, (17.00 Inches-Black)
    CABLE ASSEMBLY, (17.00 Inches-Black)
  • 25
    84-88032A3 CABLE ASSEMBLY, (23.00 Feet-Tan/Blue)
    CABLE ASSEMBLY, (23.00 Feet-Tan/Blue)
  • 26
    12415 TEMPERATURE SENDER
    TEMPERATURE SENDER
  • 27
    12419 COVER
    COVER
  • 28
    19-12431T PLUG
    PLUG
