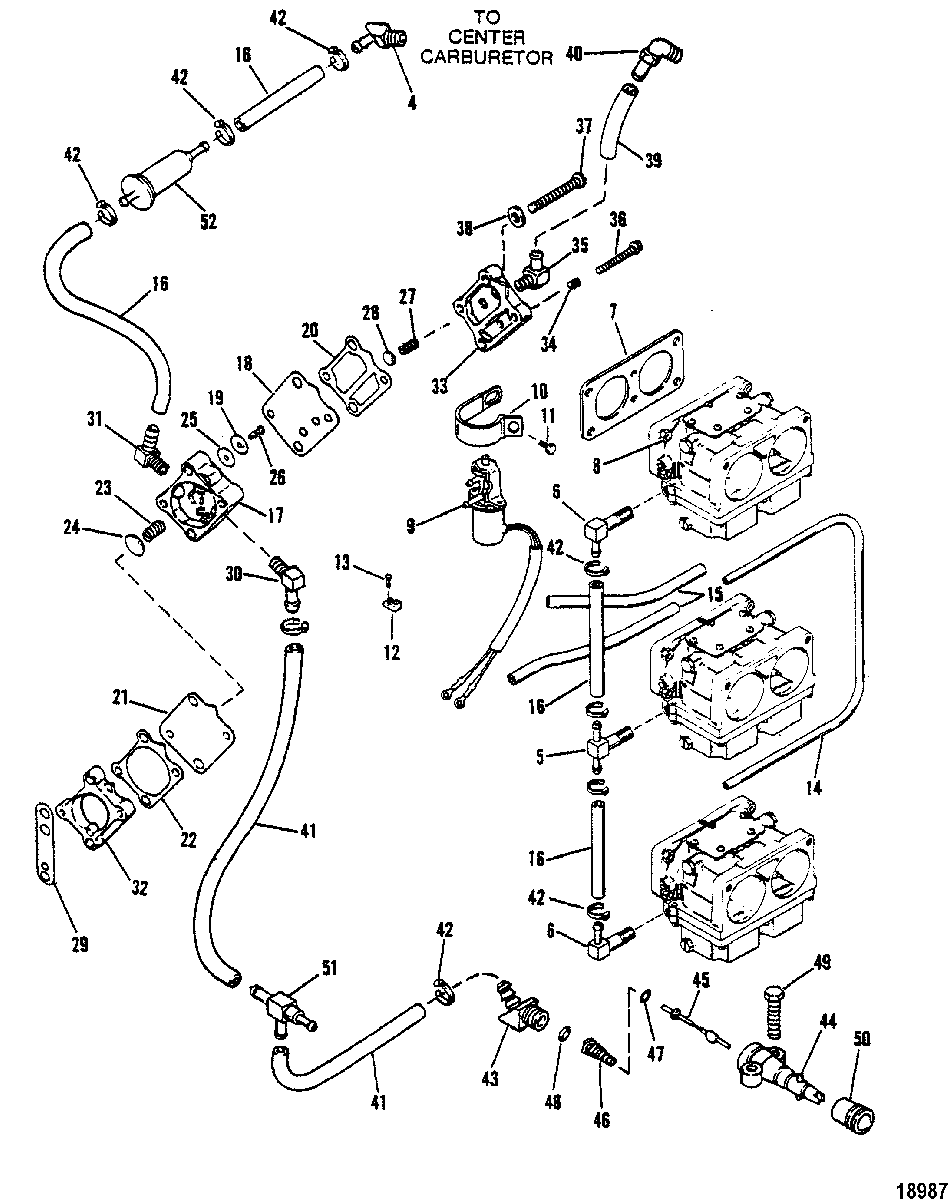

Fuel Pump(Design III) (Square Fuel Pump) для Mariner - V-200 5624878 THRU 0C100860

  • №
    Артикул
    Название
  • 4
    22-70007 FITTING (MIDDLE)
    FITTING (MIDDLE)
  • 5
    1395-7900 TEE FITTING (MIDDLE)
    TEE FITTING (MIDDLE)
  • 6
    1395-7901 ELBOW (UPPER/LOWER)
    ELBOW (UPPER/LOWER)
  • 7
    27-67751 GASKET
    GASKET
  • 8
    11-20184 NUT
    NUT
  • 9
    42859A2 ENRICHNER VALVE
    ENRICHNER VALVE
  • 10
    54-633001 CLAMP
    CLAMP
  • 11
    10-73286 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 12
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 13
    10-35519 SCREW, (#10-16 X .50)
    SCREW, (#10-16 X .50)
  • 14
    32-892024122 TUBING, (20.00 Feet Bulk)
    TUBING, (20.00 Feet Bulk)
  • 15
    32-9912688 TUBING, (36.00 Inches Bulk)
    TUBING, (36.00 Inches Bulk)
  • 16
    32-8M0108355 FUEL LINE, (57.00 Inches Bulk)
    FUEL LINE, (57.00 Inches Bulk)
  • 17
    15930A15 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 18
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 19
    NSS NOT SOLD SEPARATE, Check Valve-Rubber
    NOT SOLD SEPARATE, Check Valve-Rubber
  • 20
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 21
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 22
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 23
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 24
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 25
    NSS NOT SOLD SEPARATE, Check Valve
    NOT SOLD SEPARATE, Check Valve
  • 26
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 27
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 28
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 29
    27-987691 GASKET
    GASKET
  • 30
    22-14868 FITTING
    FITTING
  • 31
    22-19688 FITTING
    FITTING
  • 32
    144303 BASE
    BASE
  • 33
    987752 PLATE
    PLATE
  • 34
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 35
    22-15979 FITTING
    FITTING
  • 36
    10-16452 SCREW, (#12-24 x 2.00)
    SCREW, (#12-24 x 2.00)
  • 37
    10-4000310 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 38
    12-4002314 WASHER
    WASHER
  • 39
    32-9072925 HOSE
    HOSE
  • 40
    22-997511 FITTING (90 DEGREES)
    FITTING (90 DEGREES)
  • 41
    32-8M0108349 TUBING
    TUBING
  • 42
    54-816311T CABLE TIE, (8.00 Inches)
    CABLE TIE, (8.00 Inches)
  • 43
    22-14866 ELBOW
    ELBOW
  • 44
    30186 ADAPTOR
    ADAPTOR
  • 45
    30185Q3 STEM
    STEM
  • 46
    24-30189 SPRING
    SPRING
  • 47
    25-16524 O-RING
    O-RING
  • 48
    30188 WASHER
    WASHER
  • 49
    10-69067 SCREW, (.25-20 X 1.375)
    SCREW, (.25-20 X 1.375)
  • 50
    92037 SEAL
    SEAL
  • 51
    22-424253 TEE
    TEE
  • 52
    35-816296Q03 FILTER, Fuel
    FILTER, Fuel
  • -
    27-89221A88 GASKET SET
    GASKET SET
  • -
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
