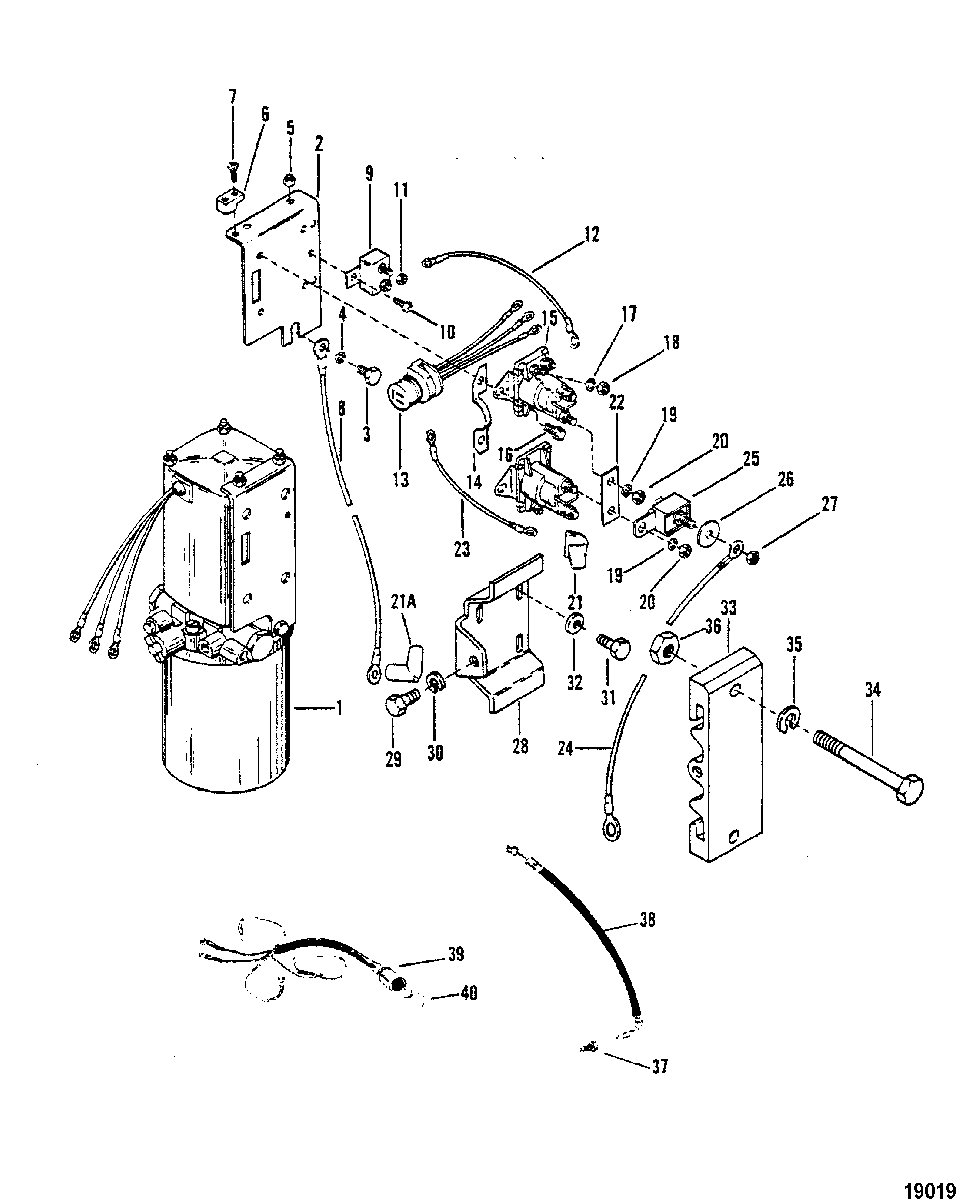

Hydraulic Pump and Mounting Brackets для Mariner - V-200 5624878 THRU 0C100860
-
№АртикулНазвание
-
1823653A9 HYDRAULIC PUMPHYDRAULIC PUMP
-
290318 BRACKETBRACKET
-
310-90285 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
412-56720 WASHER, (.330 x .750 x .060)WASHER, (.330 x .750 x .060)
-
511-826709106 NUT, (#10-32)NUT, (#10-32)
-
686-45915 TERMINAL BLOCKTERMINAL BLOCK
-
710-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
832988 BATTERY LEAD (NEGATIVE)
SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & BelowBATTERY LEAD (NEGATIVE)
SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below -
884-79138A4 BATTERY CABLE (NEGATIVE)
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032BATTERY CABLE (NEGATIVE)
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
884-79138A9 CABLE ASSEMBLY, Black (NEGATIVE)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220CABLE ASSEMBLY, Black (NEGATIVE)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220 -
988-8M0085705 CIRCUIT BREAKER (20 AMP.)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220CIRCUIT BREAKER (20 AMP.)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220 -
1010-8M0113176 SCREW, (#10-24 x .375)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220SCREW, (#10-24 x .375)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220 -
1111-45076 NUT, (#10-32)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220NUT, (#10-32)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220 -
1284-87379A2 WIRE
(RED - 3")WIRE
(RED - 3") -
1284-61600A9 WIRE
(BLACK - 3-1/4")WIRE
(BLACK - 3-1/4") -
1284-87379A5 WIRE
(RED - 5-1/2")WIRE
(RED - 5-1/2") -
1384-74023A1 CONNECTOR AND HARNESS
(3 RING TERMINALS)CONNECTOR AND HARNESS
(3 RING TERMINALS) -
1384-79147A3 HARNESS ASSEMBLY
(W/FUSE HOLDER)HARNESS ASSEMBLY
(W/FUSE HOLDER) -
1488075 RETAINERRETAINER
-
1589-853654A1 STARTER SOLENOID
SN# Merc-6073191/Mariner-6055032 & BelowSTARTER SOLENOID
SN# Merc-6073191/Mariner-6055032 & Below -
1589-96158T SOLENOID STARTER
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220SOLENOID STARTER
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220 -
1610-41508 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
1713-26995 LOCKWASHER, (#8)LOCKWASHER, (#8)
-
1811-26419 NUT, (#8-32)NUT, (#8-32)
-
1913-26992 LOCKWASHER, (.250)LOCKWASHER, (.250)
-
2011-94330 NUT, (.250-20)NUT, (.250-20)
-
1713-26996 LOCKWASHER, (#10)LOCKWASHER, (#10)
-
1811-68219 NUT, (#10-32)NUT, (#10-32)
-
1913-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2011-68292 NUT, (.312-18)NUT, (.312-18)
-
21A46265 BOOTBOOT
-
2185-861680 BOOT
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220BOOT
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220 -
2294275 LINK
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220LINK
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220 -
2384-86322A15 CABLE ASSEMBLY, (5.50 Inches)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220CABLE ASSEMBLY, (5.50 Inches)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220 -
2432979 BATTERY LEAD (POSITIVE)
SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & BelowBATTERY LEAD (POSITIVE)
SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below -
2484-79139A9 BATTERY LEAD (POSITIVE)
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032BATTERY LEAD (POSITIVE)
SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032 -
2484-79139A12 CABLE ASSEMBLY, Red (POSITIVE)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220CABLE ASSEMBLY, Red (POSITIVE)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220 -
2588-79023T10 FUSE ASSEMBLY, (110 Ampere)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220FUSE ASSEMBLY, (110 Ampere)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220 -
2612-96457 WASHER
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220WASHER
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220 -
2711-21825 NUT, (.250-28)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220NUT, (.250-28)
SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220 -
2887760T PLATEPLATE
-
2910-39349 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
3013-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
3110-90271 SCREW, (.375-16 x .62)SCREW, (.375-16 x .62)
-
3213-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3387762 BRACKETBRACKET
-
3410-31830 BOLT, (.375-24 x 1.75)BOLT, (.375-24 x 1.75)
-
3513-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3611-46335 NUT, (.375-24)NUT, (.375-24)
-
3722-89029 ADAPTOR
(1/4 Inch Flare) SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & BelowADAPTOR
(1/4 Inch Flare) SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below -
3722-77366 FITTING
(3/16 Inch Flare) SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & BelowFITTING
(3/16 Inch Flare) SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below -
3832-67740 HOSE (PORT)
SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & BelowHOSE (PORT)
SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below -
3832-67742 HOSE (STARBOARD)
SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & BelowHOSE (STARBOARD)
SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below -
3984-89017A1 TRIM SENDER HARNESS
SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & BelowTRIM SENDER HARNESS
SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below -
4054-75343 CLAMP
SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & BelowCLAMP
SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below
