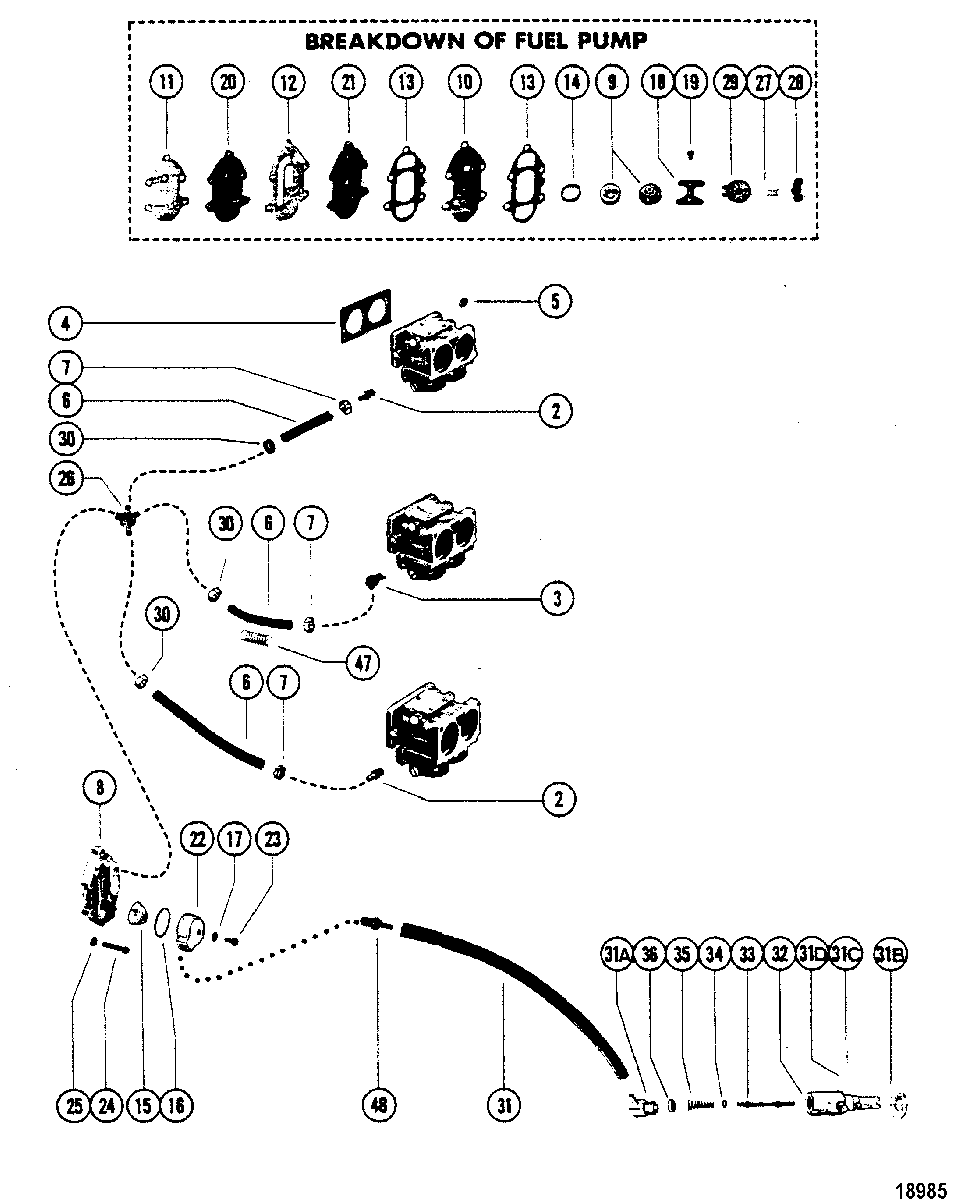

Fuel Pump(Design I) для Mariner - V-200 5624878 THRU 0C100860

  • №
    Артикул
    Название
  • 2
    1395-6232 FITTING, FUEL INLET - UPPER AND LOWER
    FITTING, FUEL INLET - UPPER AND LOWER
  • 3
    22-70007 FITTING, FUEL INLET - MIDDLE
    FITTING, FUEL INLET - MIDDLE
  • 4
    27-677511 GASKET
    SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below
    GASKET
    SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below
  • 4
    27-904301 GASKET
    SN# Merc-5464486/Mariner 5875389 THRU Merc-6073191/Mariner 6055032
    GASKET
    SN# Merc-5464486/Mariner 5875389 THRU Merc-6073191/Mariner 6055032
  • 5
    11-20184 NUT, CARBURETOR MOUNTING
    NUT, CARBURETOR MOUNTING
  • 6
    32-8M0108355 FUEL LINE, (57.00 Inches Bulk), CARBURETOR TO FUEL PUMP
    FUEL LINE, (57.00 Inches Bulk), CARBURETOR TO FUEL PUMP
  • 7
    54-68424 CLAMP, FUEL HOSE
    CLAMP, FUEL HOSE
  • 8
    66530A7 FUEL PUMP ASSEMBLY
    SN# Merc-5363917 & Below
    FUEL PUMP ASSEMBLY
    SN# Merc-5363917 & Below
  • 8
    13453A1 FUEL PUMP ASSEMBLY
    SN# Merc-5363918/Mariner-5624878 THRU Merc-6073191/Mariner-6055032
    FUEL PUMP ASSEMBLY
    SN# Merc-5363918/Mariner-5624878 THRU Merc-6073191/Mariner-6055032
  • 9
    21-30430A8 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 10
    89031A2 DIAPHRAGM ASSEMBLY
    DIAPHRAGM ASSEMBLY
  • 11
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 12
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 13
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 14
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 15
    35-59072 SCREEN
    SCREEN
  • 16
    25-35480 O-RING, (1.237 x .103)
    O-RING, (1.237 x .103)
  • 17
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 18
    23004 RETAINER
    RETAINER
  • 19
    10-43725 SCREW, (#6-32 X .38)
    SCREW, (#6-32 X .38)
  • 20
    67623 BASE
    BASE
  • 21
    79826 PULSE CHAMBER
    SN# Merc-5363917 & Below
    PULSE CHAMBER
    SN# Merc-5363917 & Below
  • 21
    86449 CHAMBER
    SN# Merc-5363918/Mariner-5624878 THRU Merc-6073191/Mariner-6055032
    CHAMBER
    SN# Merc-5363918/Mariner-5624878 THRU Merc-6073191/Mariner-6055032
  • 22
    35-91078A1 COVER, FUEL FILTER
    COVER, FUEL FILTER
  • 23
    10-89766 SCREW, (#10-32 x .620)
    SCREW, (#10-32 x .620)
  • 24
    10-88447 SCREW, (.190-32 x 1.62)
    SCREW, (.190-32 x 1.62)
  • 25
    13-26996 LOCKWASHER, (#10)
    LOCKWASHER, (#10)
  • 26
    22-67620 FITTING, FUEL OUTLET
    FITTING, FUEL OUTLET
  • 27
    24-86207 SPRING
    SPRING
  • 28
    86026 RETAINER
    RETAINER
  • 29
    86252 CAP
    CAP
  • 30
    54-68424 CLAMP
    CLAMP
  • 31
    32-877682Q8 FUEL LINE ASSEMBLY
    SN# Merc-USA-5875303/AUS-8072107/Mariner-5875388 & Below
    FUEL LINE ASSEMBLY
    SN# Merc-USA-5875303/AUS-8072107/Mariner-5875388 & Below
  • 31
    32-8M0108355 FUEL LINE, (57.00 Inches Bulk)
    SN# Merc-5875304/Mariner-5875389 THRU Merc-6073191/Mariner-6055032
    FUEL LINE, (57.00 Inches Bulk)
    SN# Merc-5875304/Mariner-5875389 THRU Merc-6073191/Mariner-6055032
  • 31A
    22-920071 FITTING, (.250-18) (90 DEGREES)
    FITTING, (.250-18) (90 DEGREES)
  • 31B
    92037 SEAL
    SEAL
  • 31C
    10-69224 SCREW (1-1/4")
    SCREW (1-1/4")
  • 31D
    13-26992 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
  • 32
    30185Q3 BAYONET ASSEMBLY, Fuel
    SN# Merc-USA-5875303/AUS-8072107/Mariner-5875388 & Below
    BAYONET ASSEMBLY, Fuel
    SN# Merc-USA-5875303/AUS-8072107/Mariner-5875388 & Below
  • 32
    30186 ADAPTOR
    SN# Merc-5875304/Mariner-5875389 THRU Merc-6073191/Mariner-6055032
    ADAPTOR
    SN# Merc-5875304/Mariner-5875389 THRU Merc-6073191/Mariner-6055032
  • 33
    30185Q3 STEM
    STEM
  • 34
    25-16524 O-RING
    O-RING
  • 35
    24-30189 SPRING
    SPRING
  • 36
    30188 WASHER
    WASHER
  • 47
    24-89808 SPRING
    SPRING
  • 48
    22-64705 FITTING (STRAIGHT)
    FITTING (STRAIGHT)
  • 48
    22-8M0123050 FITTING, (45 Degree Elbow)
    FITTING, (45 Degree Elbow)
  • -
    27-89221A88 GASKET SET
    SN# Merc-6203991/Mariner-6201970 & Up
    GASKET SET
    SN# Merc-6203991/Mariner-6201970 & Up
  • -
    27-89221A80 GASKET SET
    SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969
    GASKET SET
    SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969
  • -
    89031A2 DIAPHRAGM ASSEMBLY
    DIAPHRAGM ASSEMBLY
