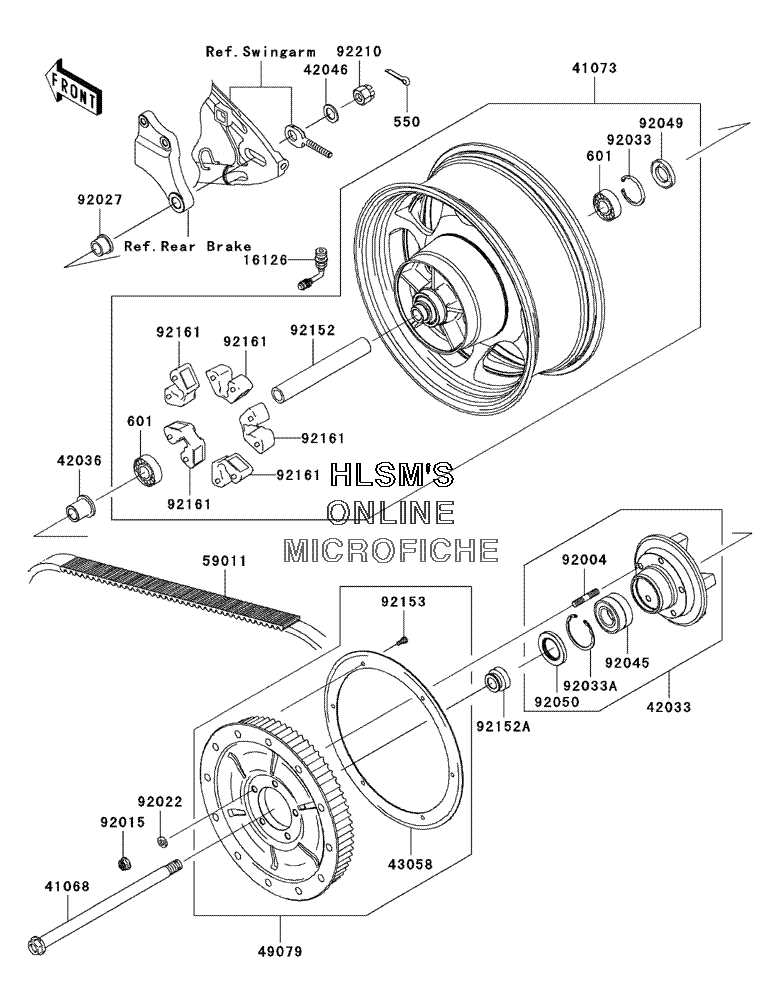

WHEEL - REAR W/ CHAIN для Kawasaki Vulcan 2000 Limited - 2006 года выпуска

  • №
    Артикул
    Название
  • 550
    550D4035 PIN, COTTER, 4.0X35
    PIN, COTTER, 4.0X35
  • 601
    601B6304UU BEARING, BALL, #6304UUC3
    BEARING, BALL, #6304UUC3
  • 16126
    16126-1365 VALVE
    VALVE
  • 41068
    41068-0007 AXLE, REAR
    AXLE, REAR
  • 41073
    41073-0047 WHEEL, ASSY, REAR
    WHEEL, ASSY, REAR
  • 42033
    42033-0020 COUPLING, ASSY, REAR HUB
    COUPLING, ASSY, REAR HUB
  • 42036
    42036-0027 SLEEVE, REAR HUB COUPLING, L=39
    SLEEVE, REAR HUB COUPLING, L=39
  • 42046
    42046-003 WASHER, 21X33X2.6
    WASHER, 21X33X2.6
  • 43058
    43058-0004 RING, REAR PULLEY
    RING, REAR PULLEY
  • 49079
    49079-0009 PULLEY, BELT
    PULLEY, BELT
  • 59011
    59011-0004 BELT, DRIVE, 133T
    BELT, DRIVE, 133T
  • 92004
    92004-0016 STUD, 10X35
    STUD, 10X35
  • 92015
    92015-1335 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92022
    92022-1820 WASHER, 10.5X19X3.2
    WASHER, 10.5X19X3.2
  • 92027
    92027-1902 COLLAR, REAR AXLE, L=21.5
    COLLAR, REAR AXLE, L=21.5
  • 92033
    92033-1043 RING, SNAP, 52MM
    RING, SNAP, 52MM
  • 92033A
    92033-1044 RING, SNAP, 62MM
    RING, SNAP, 62MM
  • 92045
    92045-0045 BEARING, BALL, 6206LUD2C3/2AS
    BEARING, BALL, 6206LUD2C3/2AS
  • 92049
    92049-1061 SEAL, OIL, 28X52X5
    SEAL, OIL, 28X52X5
  • 92050
    92050-027 SEAL, OIL, AJN40627
    SEAL, OIL, AJN40627
  • 92152
    92152-0051 COLLAR, REAR HUB, L=210
    COLLAR, REAR HUB, L=210
  • 92152A
    92152-0321 COLLAR, REAR AXLE, L=24 (LEFT)
    COLLAR, REAR AXLE, L=24 (LEFT)
  • 92153
    92153-0827 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92161
    92161-0043 DAMPER, SHOCK, REAR HUB
    DAMPER, SHOCK, REAR HUB
  • 92210
    92210-1134 NUT, CASTLE, 18MM
    NUT, CASTLE, 18MM
