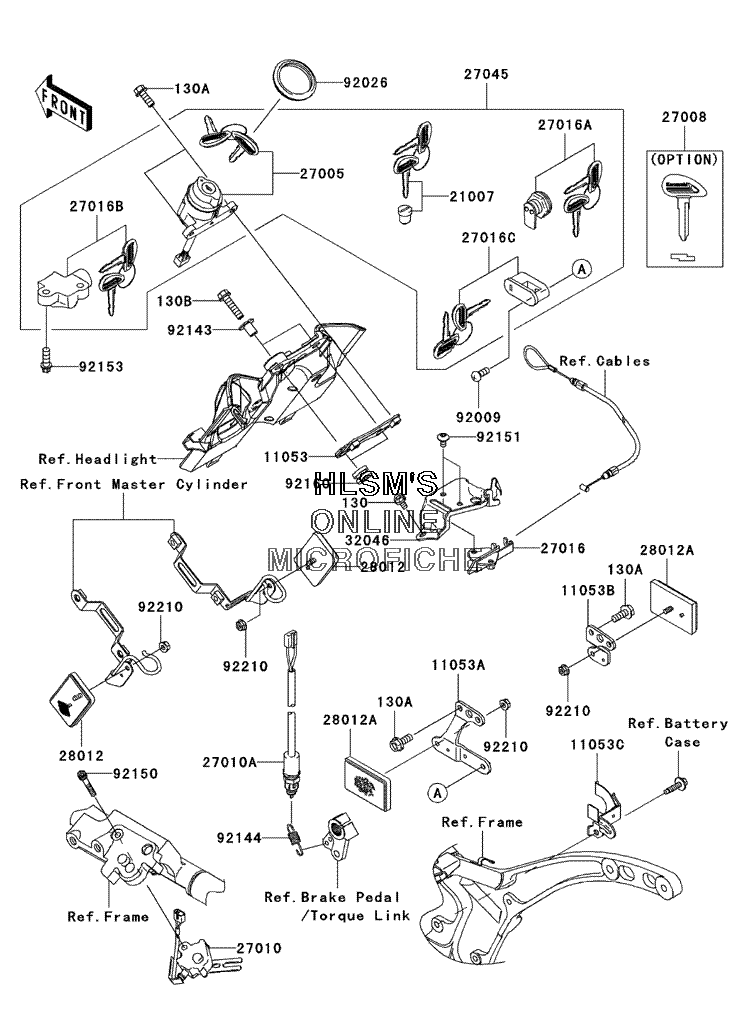

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Vulcan 2000 Limited - 2006 года выпуска
-
№АртикулНазвание
-
130130L0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
130A130L0616 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
130B130L0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
1105311053-0218 BRACKET, IGNITION SWITCHBRACKET, IGNITION SWITCH
-
11053A11053-0222 BRACKET, REFLECTOR, REAR (LEFT)BRACKET, REFLECTOR, REAR (LEFT)
-
11053B11053-0223 BRACKET, REFLECTOR, REAR (RIGHT)BRACKET, REFLECTOR, REAR (RIGHT)
-
11053C11053-0920 BRACKET, SIDE COVER LOCKBRACKET, SIDE COVER LOCK
-
2100721007-5053 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-0004 SWITCH, ASSY, IGNITIONSWITCH, ASSY, IGNITION
-
2700827008-1211 KEY, LOCK, BLANK (OPTION)KEY, LOCK, BLANK (OPTION)
-
2701027010-0011 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-0023 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-1115 LOCK, ASSY, SEAT STRIKERLOCK, ASSY, SEAT STRIKER
-
27016A27016-5279 LOCK, ASSY, LIDLOCK, ASSY, LID
-
27016B27016-5298 LOCK, ASSY, STEERINGLOCK, ASSY, STEERING
-
27016C27016-5311 LOCK, ASSY, HELMETLOCK, ASSY, HELMET
-
2704527045-5212 SWITCH, ASSYSWITCH, ASSY
-
2801228012-1009 REFLECTOR, REFLEX, FRONTREFLECTOR, REFLEX, FRONT
-
28012A28012-1088 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
3204632046-0037 BRACKET, SEATBRACKET, SEAT
-
9200992009-1296 SCREW, 5X12SCREW, 5X12
-
9202692026-0018 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
9214392143-1041 COLLAR, L=15.6COLLAR, L=15.6
-
9214492144-1141 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215092150-1958 BOLT, SOCKET, 6X40BOLT, SOCKET, 6X40
-
9215192151-1219 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9215392153-1273 BOLT, TORX, 8X22BOLT, TORX, 8X22
-
9216092160-1167 DAMPERDAMPER
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
