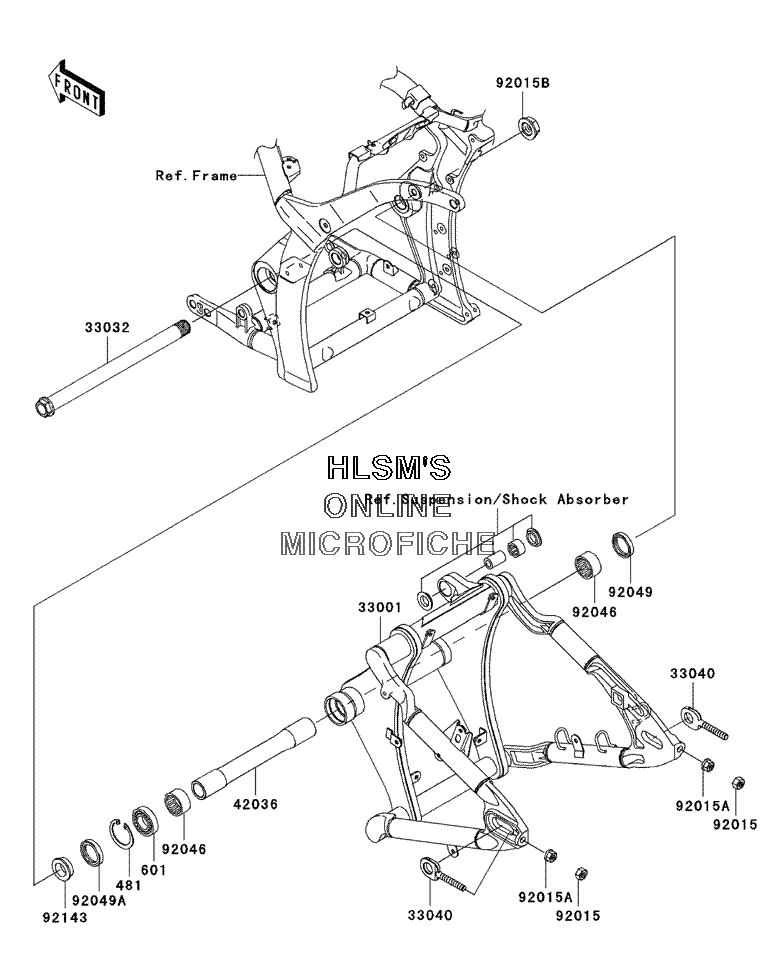

SUSPENSION - SWINGARM для Kawasaki Vulcan 2000 Limited - 2006 года выпуска

  • №
    Артикул
    Название
  • 481
    481J4700 CIRCLIP, TYPE, C, 47MM
    CIRCLIP, TYPE, C, 47MM
  • 601
    601B6005UU BEARING, BALL, #6005UU
    BEARING, BALL, #6005UU
  • 33001
    33001-0078-458 ARM, COMP, SWING (P.SILVER)
    ARM, COMP, SWING (P.SILVER)
  • 33032
    33032-0004 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-0005 ADJUSTER, CHAIN
    ADJUSTER, CHAIN
  • 42036
    42036-0007 SLEEVE, SWING ARM, L=266.5
    SLEEVE, SWING ARM, L=266.5
  • 92015
    92015-1494 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
  • 92015A
    92015-1727 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92015B
    92015-1845 NUT, FLANGED, 25MM
    NUT, FLANGED, 25MM
  • 92046
    92046-1205 BEARING, NEEDLE, BM3520
    BEARING, NEEDLE, BM3520
  • 92049
    92049-0017 SEAL, OIL, KC35X45X6
    SEAL, OIL, KC35X45X6
  • 92049A
    92049-1381 SEAL, OIL, MHA 35X47X5
    SEAL, OIL, MHA 35X47X5
  • 92143
    92143-1481 COLLAR, SWING ARM, L=12.5
    COLLAR, SWING ARM, L=12.5
