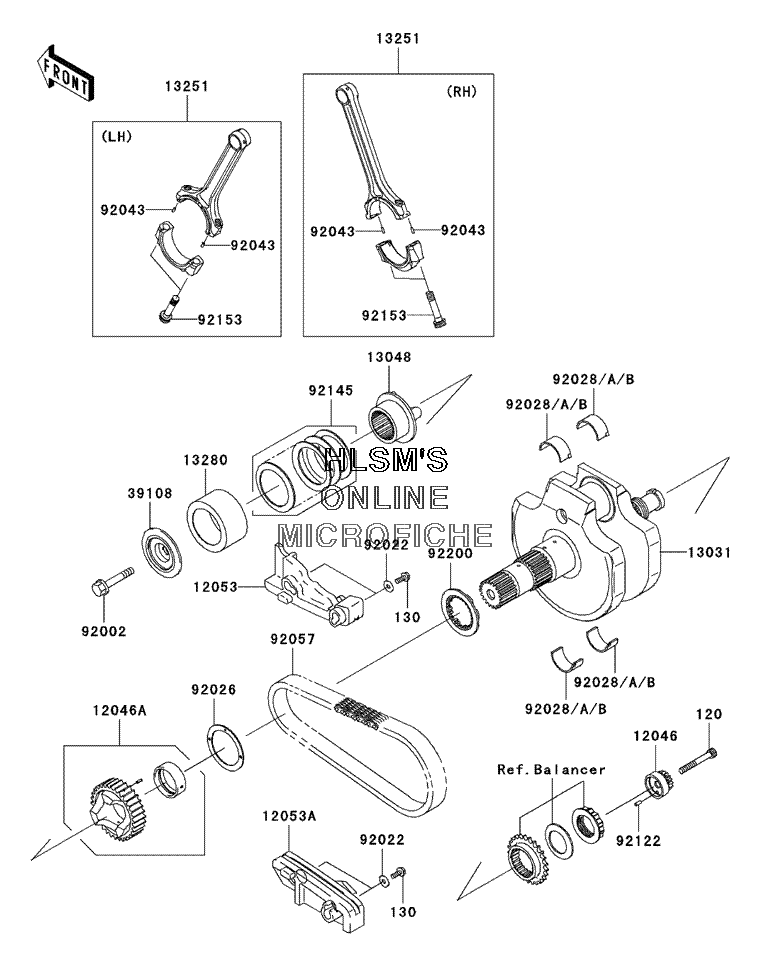

CRANKSHAFT для Kawasaki Vulcan 2000 Limited - 2006 года выпуска

  • №
    Артикул
    Название
  • 120
    120Q0860 BOLT, SOCKET, 8X60
    BOLT, SOCKET, 8X60
  • 130
    130P0616 BOLT, FLANGED, 6X16
    BOLT, FLANGED, 6X16
  • 12046
    12046-0005 SPROCKET, CAM
    SPROCKET, CAM
  • 12046A
    12046-0022 SPROCKET
    SPROCKET
  • 12053
    12053-0026 GUIDE, CHAIN, UPPER
    GUIDE, CHAIN, UPPER
  • 12053A
    12053-0037 GUIDE, CHAIN, LOWER
    GUIDE, CHAIN, LOWER
  • 13031
    13031-0031 CRANKSHAFT, COMP
    CRANKSHAFT, COMP
  • 13048
    13048-0001 CAM, DAMPER
    CAM, DAMPER
  • 13251
    13251-0001 ROD, ASSY, CONNECTING
    ROD, ASSY, CONNECTING
  • 13280
    13280-0027 HOLDER
    HOLDER
  • 39108
    39108-0002 RETAINER, SPRING
    RETAINER, SPRING
  • 92002
    92002-1464 BOLT, FLANGED, 12X60
    BOLT, FLANGED, 12X60
  • 92022
    92022-1369 WASHER, 6.2X18X1.2
    WASHER, 6.2X18X1.2
  • 92026
    92026-0041 SPACER, 57X74X1.97
    SPACER, 57X74X1.97
  • 92028
    92028-1474 BUSHING, CONNECTING ROD (BLUE)
    BUSHING, CONNECTING ROD (BLUE)
  • 92028A
    92028-1475 BUSHING, CONNECTING ROD (BLACK)
    BUSHING, CONNECTING ROD (BLACK)
  • 92028B
    92028-1476 BUSHING, CONNECTING ROD (BROWN)
    BUSHING, CONNECTING ROD (BROWN)
  • 92043
    92043-0033 PIN, 3X8.5
    PIN, 3X8.5
  • 92057
    92057-0027 CHAIN, 89HV304CF, 88
    CHAIN, 89HV304CF, 88
  • 92122
    92122-1197 ROLLER, 4X9.8
    ROLLER, 4X9.8
  • 92145
    92145-0031 SPRING
    SPRING
  • 92153
    92153-0314 BOLT, CONNECTING ROD
    BOLT, CONNECTING ROD
  • 92200
    92200-0013 WASHER
    WASHER
