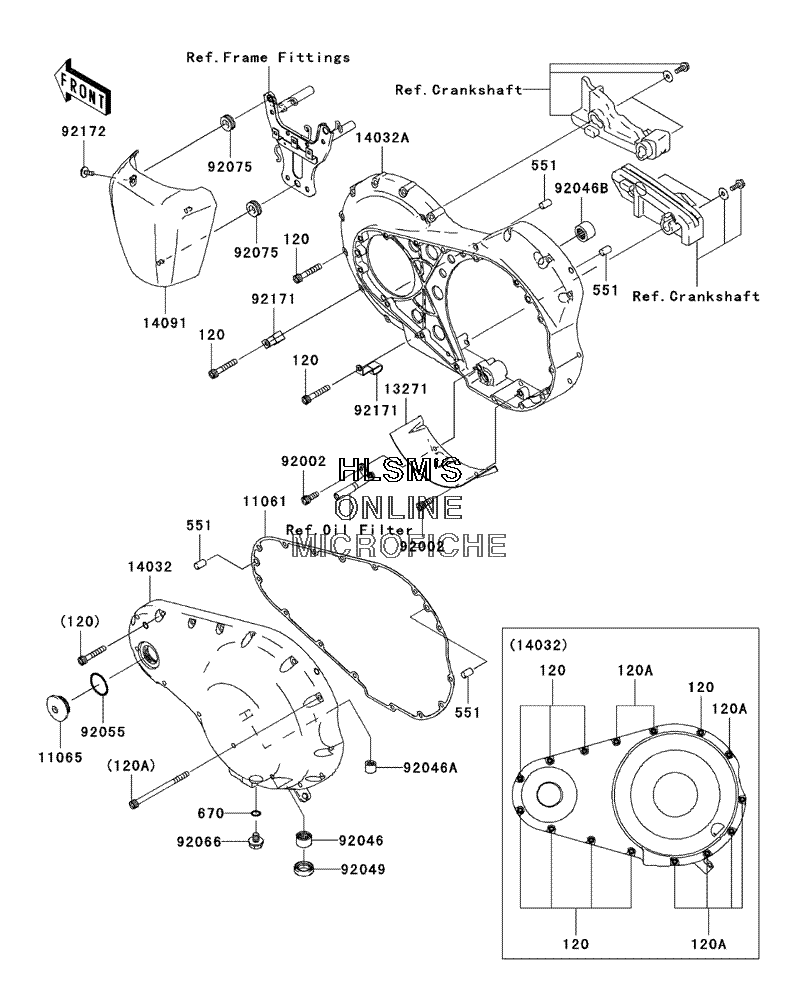

ENGINE COVER(S) - LEFT для Kawasaki Vulcan 2000 Limited - 2006 года выпуска
-
№АртикулНазвание
-
120120R0635 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
-
120A120R0690 BOLT, SOCKET, 6X90BOLT, SOCKET, 6X90
-
551551A0814 PIN, DOWEL, 8X14PIN, DOWEL, 8X14
-
670670D1508 O-RING, 8MMO-RING, 8MM
-
1106111061-0016 GASKET, CLUTCH, OUTSIDEGASKET, CLUTCH, OUTSIDE
-
1106511065-0025 CAPCAP
-
1327113271-0083 PLATEPLATE
-
1403214032-0061 COVER, CLUTCH, INNERCOVER, CLUTCH, INNER
-
14032A14032-0073 COVER, CLUTCH, OUTERCOVER, CLUTCH, OUTER
-
1409114091-0289 COVERCOVER
-
9200292002-1778 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9204692046-1010 BEARING, NEEDLE, HK1210BEARING, NEEDLE, HK1210
-
92046A92046-1142 BEARING, NEEDLE, HK0709BEARING, NEEDLE, HK0709
-
92046B92046-1163 BEARING, NEEDLE, HK1212BEARING, NEEDLE, HK1212
-
9204992049-1475 SEAL, OIL, CLUTCH RELEASESEAL, OIL, CLUTCH RELEASE
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
9206692066-1026 PLUG, DRAIN, 8X10PLUG, DRAIN, 8X10
-
9207592075-1629 DAMPERDAMPER
-
9217192171-0153 CLAMP, SENSOR CODECLAMP, SENSOR CODE
-
9217292172-0101 SCREW, 5X12SCREW, 5X12
