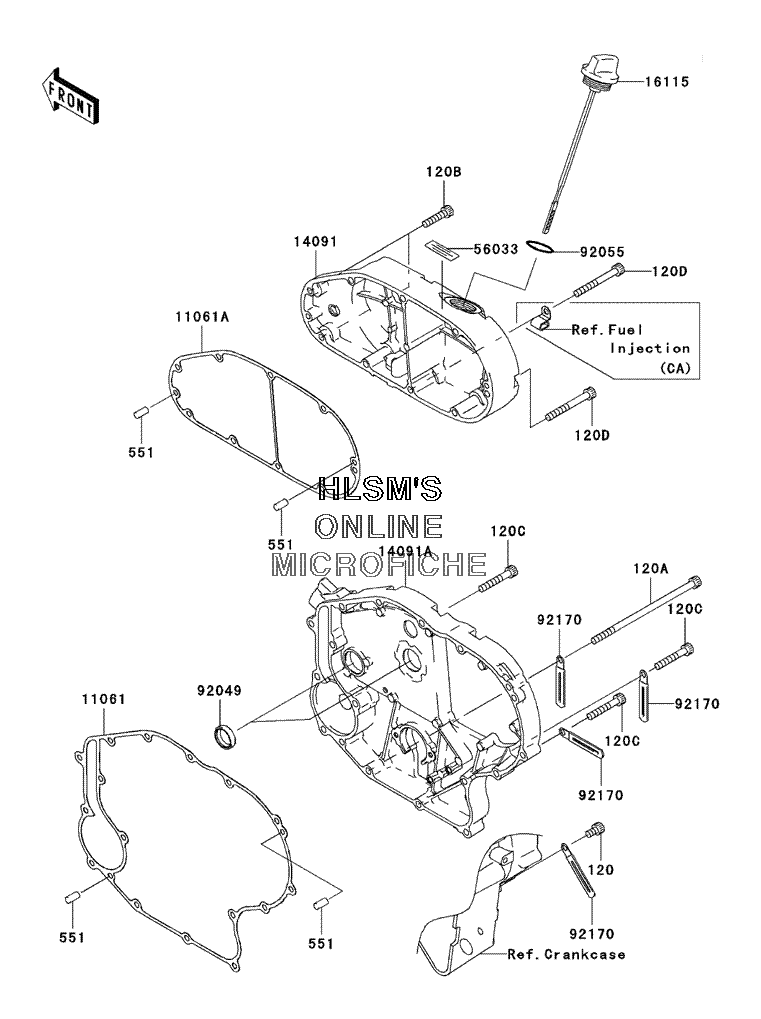

ENGINE COVER(S) - RIGHT для Kawasaki Vulcan 2000 Limited - 2006 года выпуска
-
№АртикулНазвание
-
120120R0610 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
120A120R06125 BOLT, SOCKET, 6X125BOLT, SOCKET, 6X125
-
120B120R0625 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
120C120R0635 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
-
120D120R0650 BOLT, SOCKET, 6X50BOLT, SOCKET, 6X50
-
551551A0612 PIN, DOWEL, 6X12PIN, DOWEL, 6X12
-
1106111061-0017 GASKET, TRANSMISSION, INSIDEGASKET, TRANSMISSION, INSIDE
-
11061A11061-0018 GASKET, TRANSMISSION, OUTSIDEGASKET, TRANSMISSION, OUTSIDE
-
1409114091-0263 COVER, TRANSMISSION OUTSIDECOVER, TRANSMISSION OUTSIDE
-
14091A14091-0431 COVER, TRANSMISSION, INSIDECOVER, TRANSMISSION, INSIDE
-
1611516115-0010 CAP, OIL FILLERCAP, OIL FILLER
-
5603356033-0050 LABEL, MANUAL, OIL CAPACITYLABEL, MANUAL, OIL CAPACITY
-
9204992049-0019 SEAL, OIL, 20X26X6SEAL, OIL, 20X26X6
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
9217092170-1514 CLAMPCLAMP
