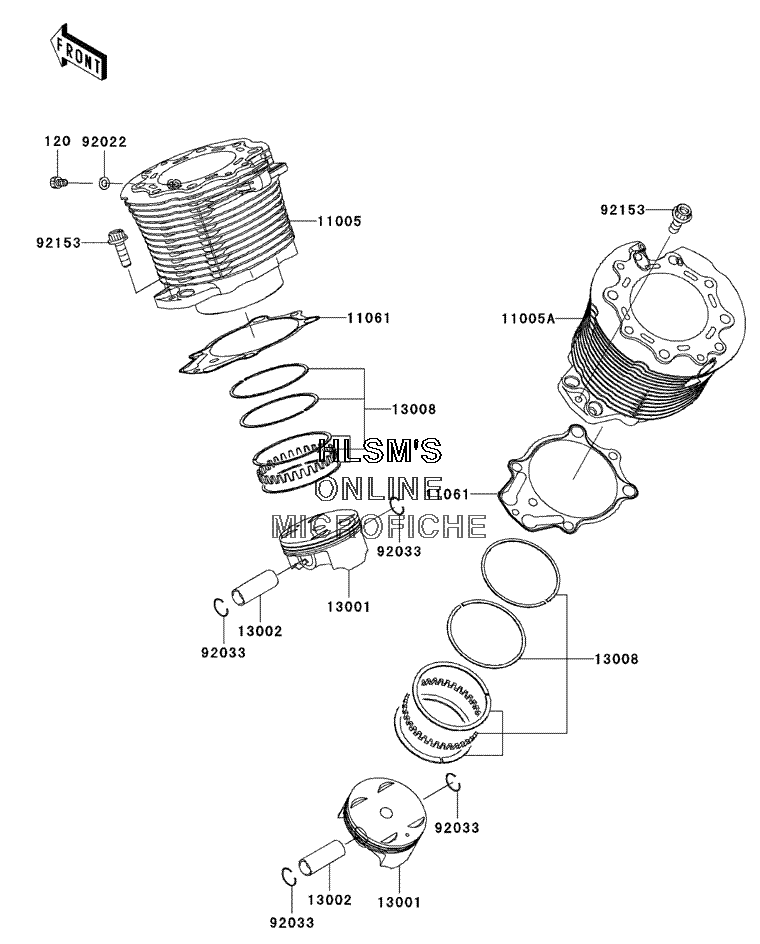

CYLINDER/PISTON(S) для Kawasaki Vulcan 2000 Limited - 2006 года выпуска
-
№АртикулНазвание
-
120120R0610 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
1100511005-0040 CYLINDER, ENGINE, FRONTCYLINDER, ENGINE, FRONT
-
11005A11005-0041 CYLINDER, ENGINE, REARCYLINDER, ENGINE, REAR
-
1106111061-0010 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-0003 PISTON, ENGINEPISTON, ENGINE
-
1300213002-0001 PIN, PISTONPIN, PISTON
-
1300813008-0001 RING, SET, PISTONRING, SET, PISTON
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203392033-3721 RING, SNAPRING, SNAP
-
9215392153-0313 BOLT, 8X25BOLT, 8X25
