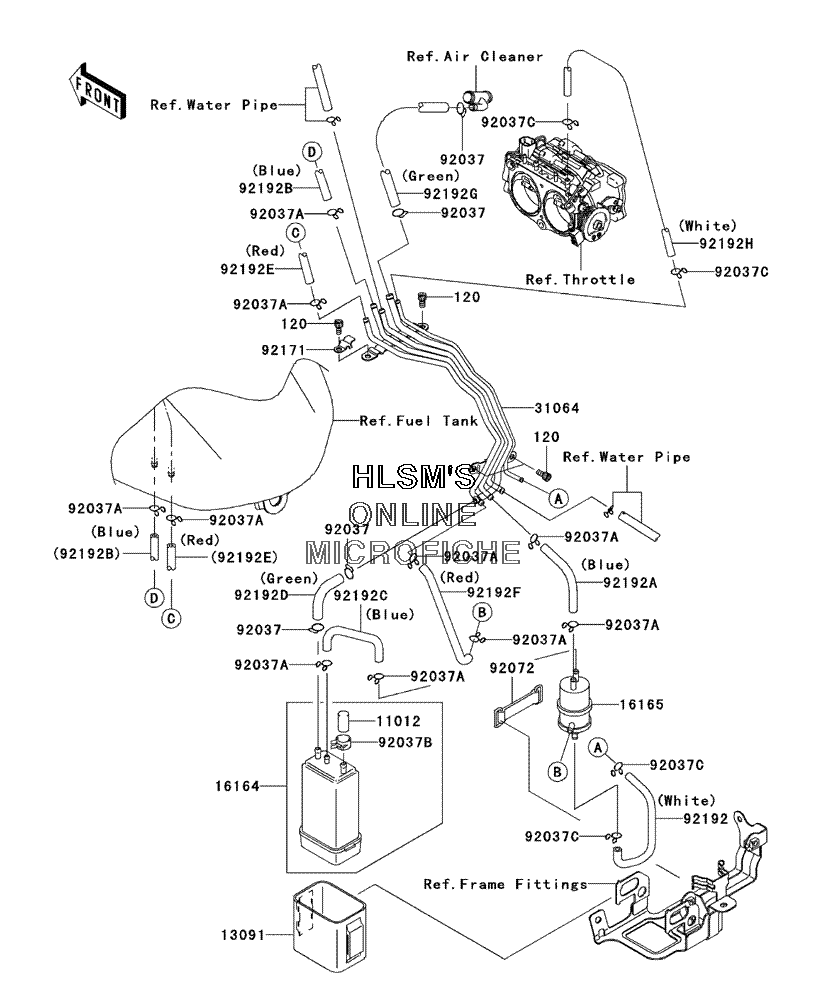

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki Vulcan 2000 Limited - 2006 года выпуска
-
№АртикулНазвание
-
120120W0612 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
1101211012-1388 CAP, CANISTERCAP, CANISTER
-
1309113091-1308 HOLDER, CANISTERHOLDER, CANISTER
-
1616416164-1054 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
3106431064-0010 PIPE, COMPPIPE, COMP
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1512 CLAMP, CANISTERCLAMP, CANISTER
-
92037C92037-1712 CLAMPCLAMP
-
9207292072-1419 BAND, L=50BAND, L=50
-
9217192171-0209 CLAMPCLAMP
-
9219292192-0013 TUBE, SEPARATOR, PIPE (WHITE)TUBE, SEPARATOR, PIPE (WHITE)
-
92192A92192-0014 TUBE, SEPARATOR, PIPE, BLUETUBE, SEPARATOR, PIPE, BLUE
-
92192B92192-0037 TUBE, BLUETUBE, BLUE
-
92192C92192-0061 TUBE, CANISTER, SEPARATOR, BLUETUBE, CANISTER, SEPARATOR, BLUE
-
92192D92192-0107 TUBE, CANISTER, PIPE, GREENTUBE, CANISTER, PIPE, GREEN
-
92192E92192-0112 TUBE, TANK, PIPE, REDTUBE, TANK, PIPE, RED
-
92192F92192-0113 TUBE, SEPARATOR, PIPE, REDTUBE, SEPARATOR, PIPE, RED
-
92192G92192-0114 TUBE, 7X12X430, GREENTUBE, 7X12X430, GREEN
-
92192H92192-0121 TUBE, 4X9X510 (WHITE)TUBE, 4X9X510 (WHITE)
