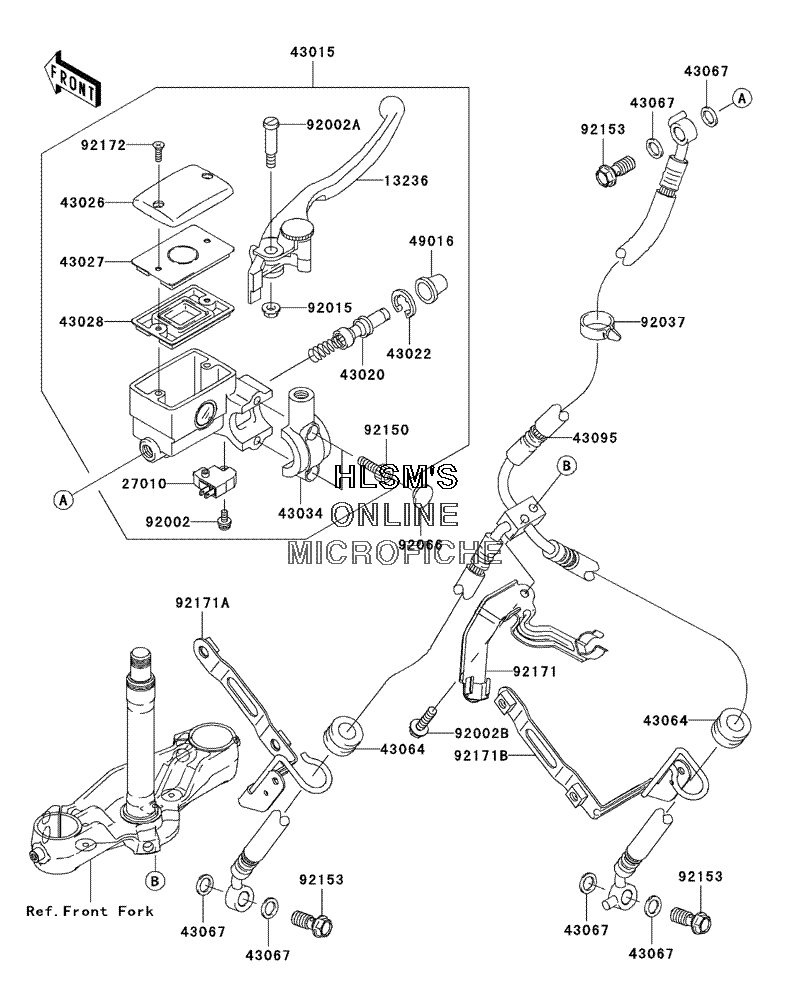

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Vulcan 2000 Limited - 2006 года выпуска`
-
№АртикулНазвание
-
1323613236-1315 LEVER, COMP, FRONT BRAKELEVER, COMP, FRONT BRAKE
-
2701027010-0025 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-0025 CYLINDER, ASSY, MASTER, FRONTCYLINDER, ASSY, MASTER, FRONT
-
4302043020-1054 PISTON, COMP, BRAKE, FRONTPISTON, COMP, BRAKE, FRONT
-
4302243022-1010 STOPPER, BRAKE, PISTONSTOPPER, BRAKE, PISTON
-
4302643026-0003 CAP, BRAKECAP, BRAKE
-
4302743027-1059 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1058 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1172 HOLDER, BRAKEHOLDER, BRAKE
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4309543095-0168 HOSE, BRAKE, FRONTHOSE, BRAKE, FRONT
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1561 BOLT, LEVER SETBOLT, LEVER SET
-
92002B92002-1912 BOLT, 6X26.6BOLT, 6X26.6
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9203792037-1827 CLAMP, HOSECLAMP, HOSE
-
9206692066-1301 PLUGPLUG
-
9215092150-1025 BOLT, SOCKET, 6MMBOLT, SOCKET, 6MM
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217192171-0449 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171A92171-0528 CLAMP, BRAKE HOSE, FRONT (LEFT)CLAMP, BRAKE HOSE, FRONT (LEFT)
-
92171B92171-0529 CLAMP, BRAKE HOSE, FRONT (RIGHT)CLAMP, BRAKE HOSE, FRONT (RIGHT)
-
9217292172-0083 SCREWSCREW
