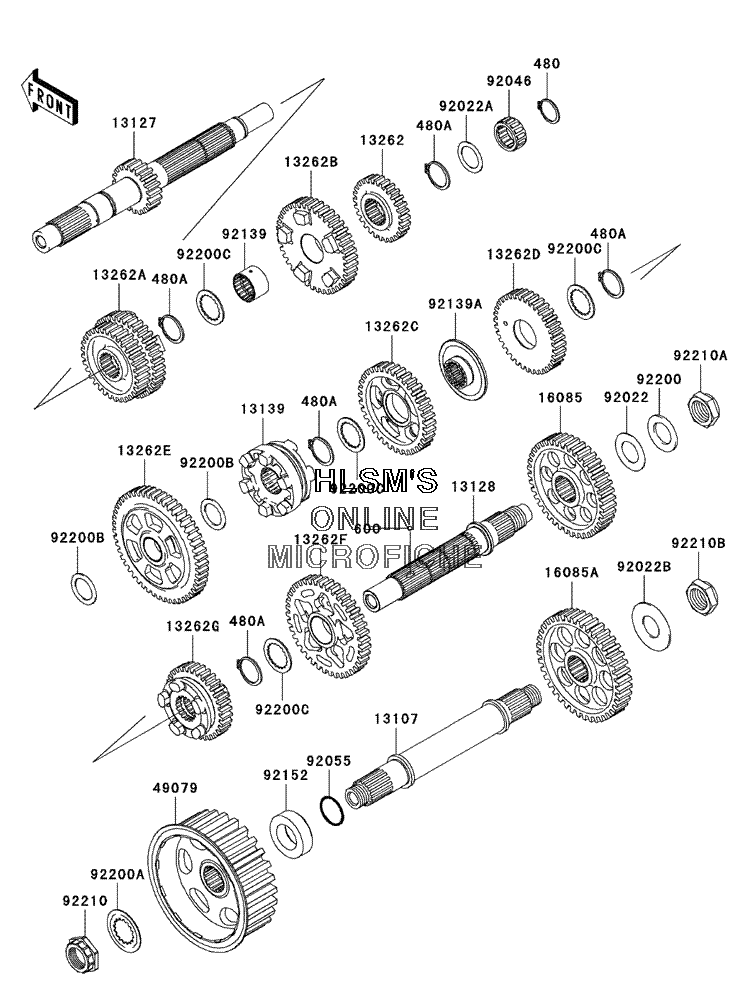

TRANSMISSION для Kawasaki Vulcan 2000 Limited - 2006 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2500 CIRCLIP, TYPE, C, 25MM
    CIRCLIP, TYPE, C, 25MM
  • 480A
    480J2900 CIRCLIP
    CIRCLIP
  • 600
    600A0500 BALL, STEEL, 5/32"
    BALL, STEEL, 5/32"
  • 13107
    13107-0108 SHAFT, PULLEY
    SHAFT, PULLEY
  • 13127
    13127-0003 SHAFT, TRANSMISSION INPUT
    SHAFT, TRANSMISSION INPUT
  • 13128
    13128-0013 SHAFT, TRANSMISSION OUTPUT
    SHAFT, TRANSMISSION OUTPUT
  • 13139
    13139-0001 SHIFTER, OUTPUT
    SHIFTER, OUTPUT
  • 13262
    13262-0004 GEAR, INPUT 2ND (27 TEETH)
    GEAR, INPUT 2ND (27 TEETH)
  • 13262A
    13262-0005 GEAR, INPUT 3RD AND 4TH (32/33 TEETH)
    GEAR, INPUT 3RD AND 4TH (32/33 TEETH)
  • 13262B
    13262-0006 GEAR, INPUT 5TH (37 TEETH)
    GEAR, INPUT 5TH (37 TEETH)
  • 13262C
    13262-0008 GEAR, OUTPUT 3RD (39 TEETH)
    GEAR, OUTPUT 3RD (39 TEETH)
  • 13262D
    13262-0009 GEAR, OUTPUT 4TH (31 TEETH)
    GEAR, OUTPUT 4TH (31 TEETH)
  • 13262E
    13262-0010 GEAR, OUTPUT LOW (51 TEETH)
    GEAR, OUTPUT LOW (51 TEETH)
  • 13262F
    13262-0011 GEAR, OUTPUT 2ND (44 TEETH)
    GEAR, OUTPUT 2ND (44 TEETH)
  • 13262G
    13262-0012 GEAR, OUTPUT 5TH (27 TEETH)
    GEAR, OUTPUT 5TH (27 TEETH)
  • 16085
    16085-0004 GEAR, TRANSFER (41 TEETH)
    GEAR, TRANSFER (41 TEETH)
  • 16085A
    16085-0032 GEAR, TRANSFER (50 TEETH)
    GEAR, TRANSFER (50 TEETH)
  • 49079
    49079-0014 PULLEY, BELT
    PULLEY, BELT
  • 92022
    92022-1390 WASHER, 25.3X44X1
    WASHER, 25.3X44X1
  • 92022A
    92022-1855 WASHER, 25.5X36X1.0
    WASHER, 25.5X36X1.0
  • 92022B
    92022-1857 WASHER, 25.3X56X2.0
    WASHER, 25.3X56X2.0
  • 92046
    92046-0007 BEARING, NEEDLE, KT 253515E02 C3
    BEARING, NEEDLE, KT 253515E02 C3
  • 92055
    92055-0006 O-RING, 29.7X2.4
    O-RING, 29.7X2.4
  • 92139
    92139-0006 BUSHING
    BUSHING
  • 92139A
    92139-0007 BUSHING, OUTPUT 3RD, 4TH GEAR
    BUSHING, OUTPUT 3RD, 4TH GEAR
  • 92152
    92152-0021 COLLAR, 30X50X16
    COLLAR, 30X50X16
  • 92200
    92200-0016 WASHER, 25.5X42X2.6
    WASHER, 25.5X42X2.6
  • 92200A
    92200-0017 WASHER, 31X50X1
    WASHER, 31X50X1
  • 92200B
    92200-0116 WASHER, 25.5X36X1.6
    WASHER, 25.5X36X1.6
  • 92200C
    92200-1381 WASHER, 30.3X40X1.5
    WASHER, 30.3X40X1.5
  • 92210
    92210-0060 NUT, 25MM
    NUT, 25MM
  • 92210A
    92210-0136 NUT, LEFT HANDED, 25MM
    NUT, LEFT HANDED, 25MM
  • 92210B
    92210-0138 NUT, 25MM
    NUT, 25MM
