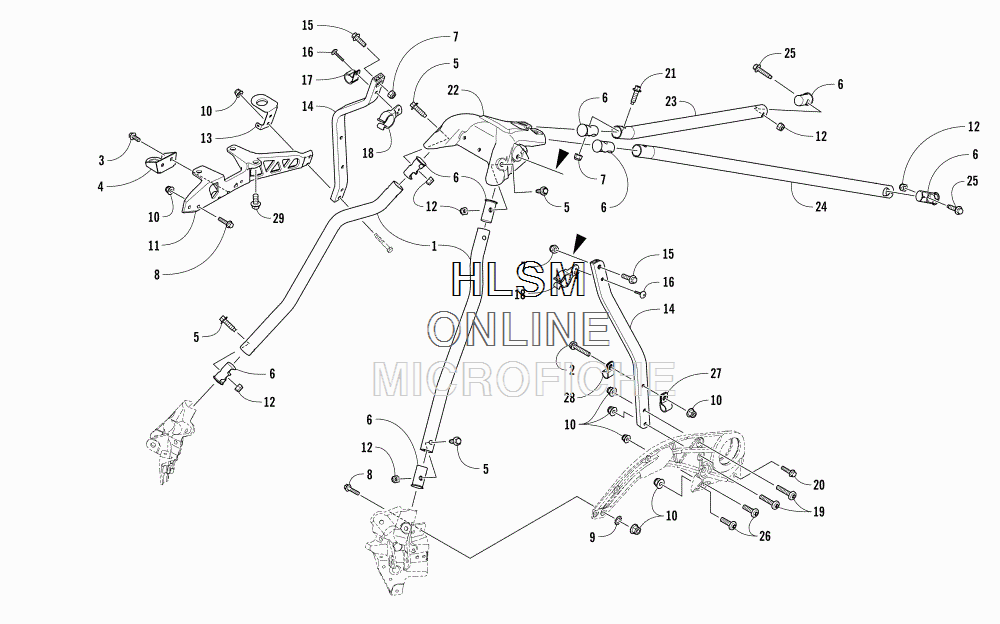

STEERING SUPPORT ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 2.2 BLACK INTERNATIONAL - 2017 года выпуска
-
№АртикулНазвание
-
12707-568 SPAR, FRONT - RIGHTSPAR, FRONT - RIGHT
-
12707-569 SPAR, FRONT - LEFTSPAR, FRONT - LEFT
-
22623-138 SCREWSCREW
-
38408-616 SCREW, CAPSCREW, CAP
-
43612-165 BRACKET, MOUNTING - RESONATOR - CHASSISBRACKET, MOUNTING - RESONATOR - CHASSIS
-
51623-836 SCREW, CAPSCREW, CAP
-
61607-680 INSERTINSERT
-
78422-802 NUT, LOCKNUT, LOCK
-
88408-625 SCREW, CAPSCREW, CAP
-
98053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
108427-602 NUT, LOCKNUT, LOCK
-
112707-566 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
128422-002 NUT, LOCKNUT, LOCK
-
132712-062 BRACKET, MOUNTING - RESONATORBRACKET, MOUNTING - RESONATOR
-
141607-660 SUPPORT, SIDE - REAR RIGHTSUPPORT, SIDE - REAR RIGHT
-
141607-133 SUPPORT, SIDE - REAR - LEFTSUPPORT, SIDE - REAR - LEFT
-
158408-820 SCREW, CAPSCREW, CAP
-
162623-165 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
172623-006 CLAMP, CABLECLAMP, CABLE
-
180609-937 CLIP, ROUTINGCLIP, ROUTING
-
198476-635 SCREW, MACHINESCREW, MACHINE
-
208408-825 SCREW, CAPSCREW, CAP
-
211623-982 SCREW, CAPSCREW, CAP
-
222707-850 SUPPORT, STEERINGSUPPORT, STEERING
-
232707-686 SPAR, REAR - RIGHTSPAR, REAR - RIGHT
-
242707-687 SPAR, REAR - LEFTSPAR, REAR - LEFT
-
258408-030 SCREW, CAPSCREW, CAP
-
268468-625 SCREW, MACHINESCREW, MACHINE
-
272623-083 CLAMP, ROUTINGCLAMP, ROUTING
-
281623-722 CLAMPCLAMP
-
292623-179 SCREW, CAPSCREW, CAP
