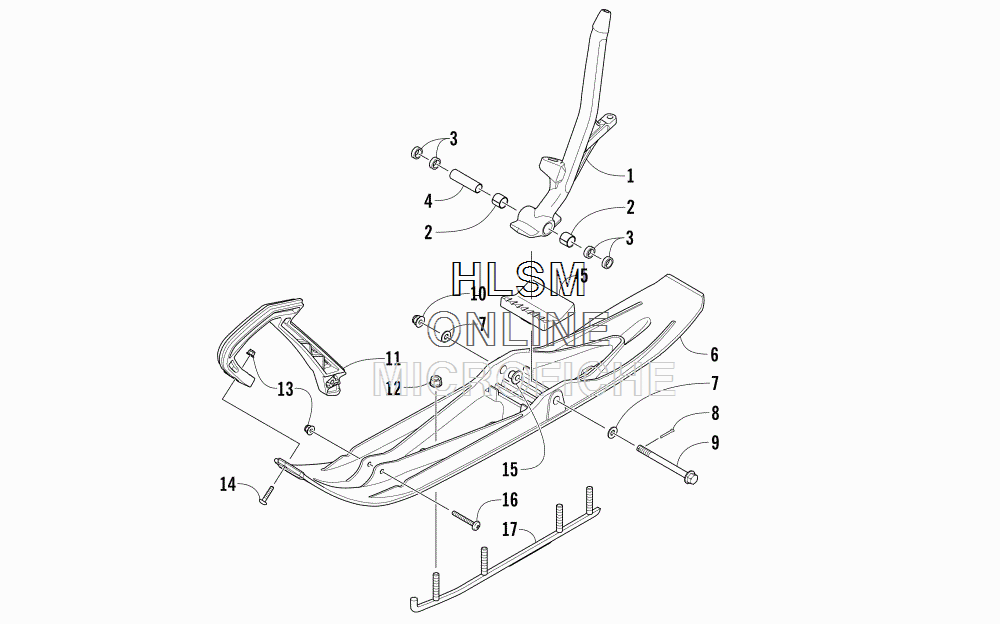

SKI AND SPINDLE ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 2.2 BLACK INTERNATIONAL - 2017 года выпуска
-
№АртикулНазвание
-
13703-426 SPINDLE, STEERING - RIGHT - BLACK (INC. TWO NO. 2)SPINDLE, STEERING - RIGHT - BLACK (INC. TWO NO. 2)
-
13703-427 SPINDLE, STEERING - LEFT - BLACK (INC. TWO NO. 2)SPINDLE, STEERING - LEFT - BLACK (INC. TWO NO. 2)
-
20603-158 ...BEARING...BEARING
-
32603-208 SPACERSPACER
-
43603-321 AXLE, SPINDLEAXLE, SPINDLE
-
53603-305 DAMPER, SKIDAMPER, SKI
-
63603-518 SKI, PLASTIC - BLACKSKI, PLASTIC - BLACK
-
71623-801 WASHERWASHER
-
80123-458 PIN, COTTERPIN, COTTER
-
92623-030 SCREW, CAPSCREW, CAP
-
100423-744 NUT, LOCKNUT, LOCK
-
112603-950 HANDLE, PLASTIC - BLACKHANDLE, PLASTIC - BLACK
-
128047-486 NUT, LOCKNUT, LOCK
-
138427-602 NUT, LOCKNUT, LOCK
-
148476-625 SCREW, CAPSCREW, CAP
-
152603-746 INSERTINSERT
-
168476-650 SCREW, MACHINESCREW, MACHINE
-
170703-871 WEARBARWEARBAR
