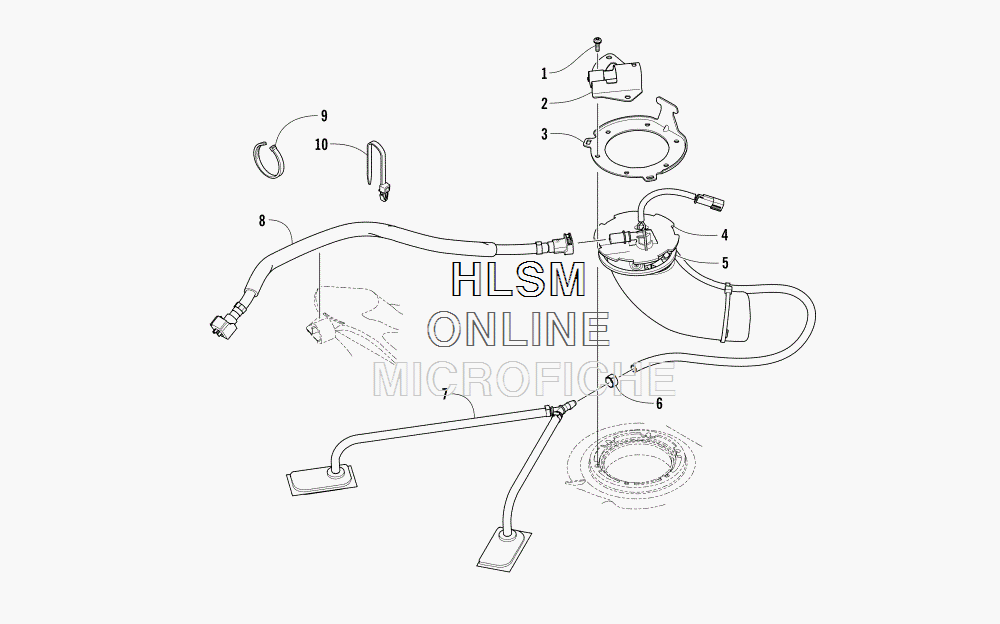

FUEL PUMP ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 2.2 BLACK INTERNATIONAL - 2017 года выпуска
-
№АртикулНазвание
-
10423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
22670-467 PROTECTOR, FUEL PUMPPROTECTOR, FUEL PUMP
-
32670-395 PLATE, RETAINING - FUEL PUMPPLATE, RETAINING - FUEL PUMP
-
42670-560 PUMP, FUEL - ASSEMBLYPUMP, FUEL - ASSEMBLY
-
50470-838 SEALSEAL
-
61623-655 CLAMP, HOSECLAMP, HOSE
-
72670-278 PICKUP, FUEL - ASSEMBLYPICKUP, FUEL - ASSEMBLY
-
81770-140 FUEL LINE - ASSEMBLYFUEL LINE - ASSEMBLY
-
90123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
100623-677 TIE, CABLE - PUSH MOUNTTIE, CABLE - PUSH MOUNT
