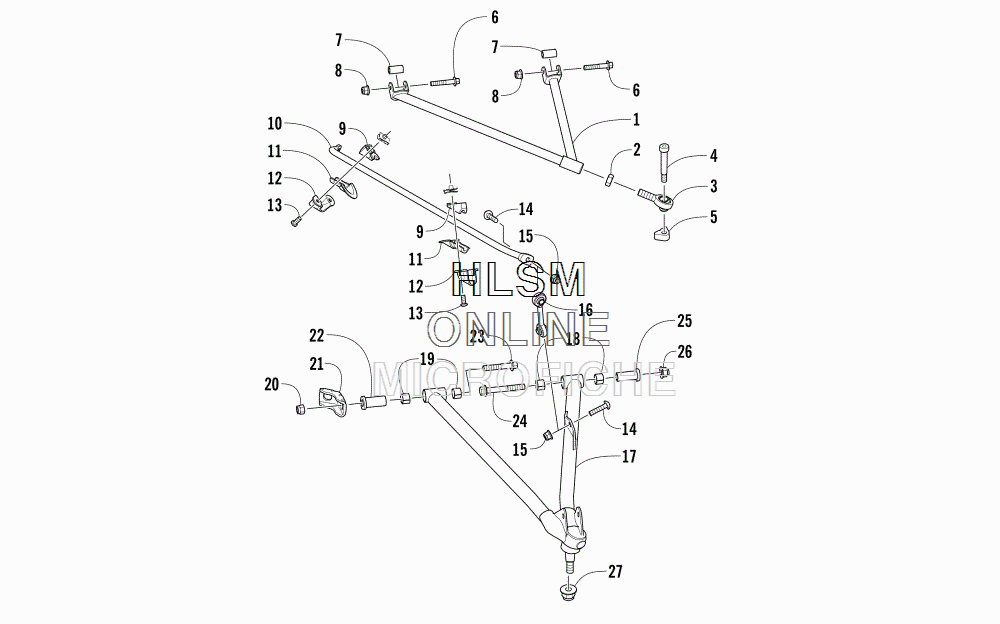

A-ARM AND SWAY BAR ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 2.2 BLACK INTERNATIONAL - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3703-627 A-ARM, UPPER - GREEN (INC. 2-3)
    A-ARM, UPPER - GREEN (INC. 2-3)
  • 2
    8420-202 ...NUT
    ...NUT
  • 3
    1605-151 ...BEARING, END
    ...BEARING, END
  • 4
    2623-067 SCREW, SHOULDER
    SCREW, SHOULDER
  • 5
    2623-066 TRI NUT
    TRI NUT
  • 6
    8413-645 SCREW, CAP
    SCREW, CAP
  • 7
    3603-258 AXLE
    AXLE
  • 8
    8437-604 NUT, LOCK
    NUT, LOCK
  • 9
    2603-946 BUSHING
    BUSHING
  • 10
    2703-793 BAR, SWAY
    BAR, SWAY
  • 11
    2603-947 BUSHING
    BUSHING
  • 12
    2603-857 BRACKET, MOUNTING - SWAY BAR
    BRACKET, MOUNTING - SWAY BAR
  • 13
    8468-621 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    8476-835 SCREW, CAP
    SCREW, CAP
  • 15
    8427-802 NUT
    NUT
  • 16
    3603-295 LINK, SWAY BAR
    LINK, SWAY BAR
  • 17
    3703-630 A-ARM, LOWER RIGHT - GREEN (INC. TWO NO. 18-19)
    A-ARM, LOWER RIGHT - GREEN (INC. TWO NO. 18-19)
  • 17
    3703-631 A-ARM, LOWER LEFT - GREEN (INC. TWO NO. 18-19)
    A-ARM, LOWER LEFT - GREEN (INC. TWO NO. 18-19)
  • 18
    1603-895 ...BEARING
    ...BEARING
  • 19
    2603-911 ...BEARING
    ...BEARING
  • 20
    1623-965 NUT, LOCK
    NUT, LOCK
  • 21
    2603-909 BRACE, LOWER A-ARM - FRONT
    BRACE, LOWER A-ARM - FRONT
  • 22
    2603-916 AXLE, INNER - LOWER A-ARM - FRONT
    AXLE, INNER - LOWER A-ARM - FRONT
  • 23
    1623-953 SCREW, CAP
    SCREW, CAP
  • 24
    8409-075 SCREW, CAP
    SCREW, CAP
  • 25
    2603-543 AXLE, LOWER A-ARM - REAR
    AXLE, LOWER A-ARM - REAR
  • 26
    8427-002 NUT, LOCK
    NUT, LOCK
  • 27
    8427-202 NUT, LOCK
    NUT, LOCK
