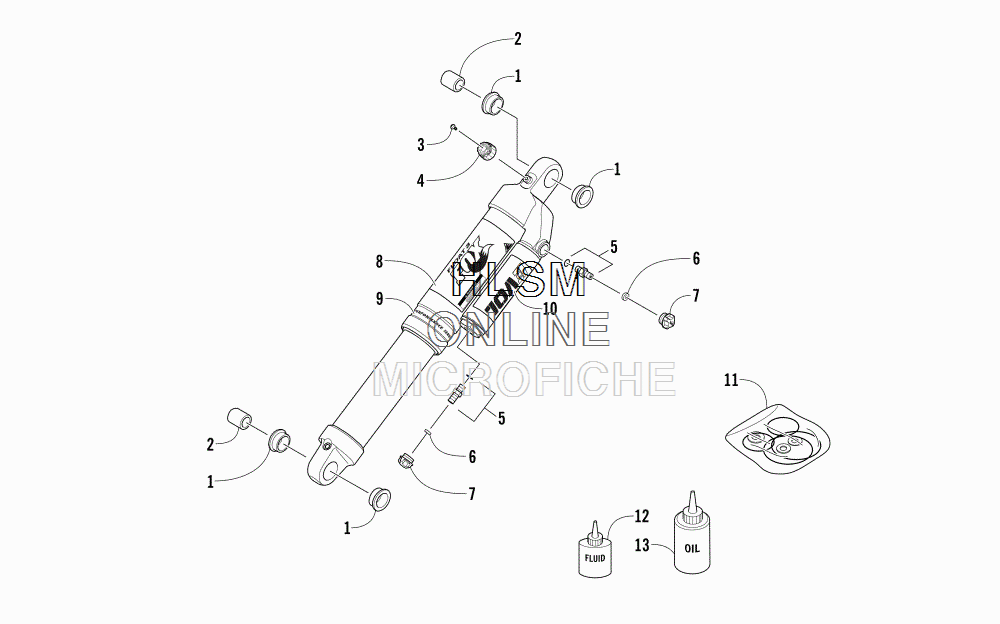

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 2.2 BLACK INTERNATIONAL - 2017 года выпуска

  • №
    Артикул
    Название
  • -
    3704-131 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    1604-222 BUSHING
    BUSHING
  • 2
    2604-223 SLEEVE
    SLEEVE
  • 3
    3603-377 SCREW, MACHINE
    SCREW, MACHINE
  • 4
    3603-386 KNOB, REBOUND
    KNOB, REBOUND
  • 5
    2603-511 VALVE, AIR
    VALVE, AIR
  • 6
    2603-965 SEAL
    SEAL
  • 7
    3603-367 CAP, AIR VALVE
    CAP, AIR VALVE
  • 8
    3603-369 DECAL, SHOCK
    DECAL, SHOCK
  • 9
    3603-365 DECAL, "PERFORMANCE SERIES"
    DECAL, "PERFORMANCE SERIES"
  • 10
    3603-373 DECAL, "EVOL"
    DECAL, "EVOL"
  • 11
    4604-066 KIT, SEAL/BEARING REBUILD
    KIT, SEAL/BEARING REBUILD
  • 12
    4639-012 FLUID, FLOAT SHOCK - 8 OZ
    FLUID, FLOAT SHOCK - 8 OZ
  • 13
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
