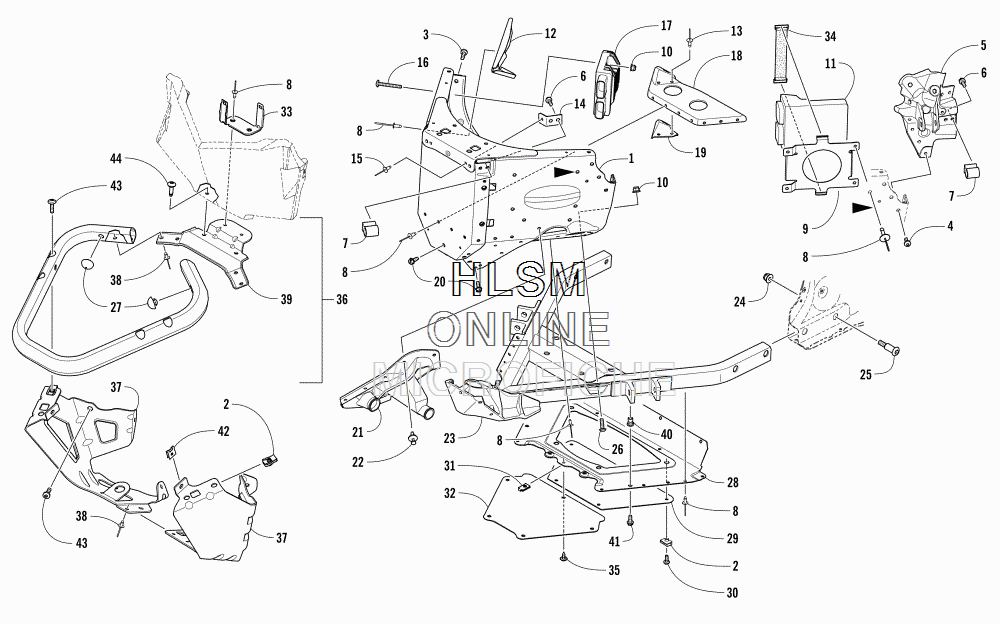

FRONT BUMPER AND FRAME ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 2.2 BLACK INTERNATIONAL - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2707-673 PANEL, FRONT - ASSEMBLY - BLACK (INC. EIGHT NO. 2 AND 3-5)
    PANEL, FRONT - ASSEMBLY - BLACK (INC. EIGHT NO. 2 AND 3-5)
  • 2
    0423-577 ...CLIP, U-NUT
    ...CLIP, U-NUT
  • 3
    1623-683 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 4
    0423-538 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 5
    3707-076 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK
    ...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK
  • 5
    3707-077 ...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK
    ...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK
  • 6
    8413-617 SCREW, CAP
    SCREW, CAP
  • 7
    1607-233 BRACKET, MOUNTING - UPPER A-ARM
    BRACKET, MOUNTING - UPPER A-ARM
  • 8
    8060-686 RIVET
    RIVET
  • 9
    0609-960 BRACKET, MOUNTING - ECM
    BRACKET, MOUNTING - ECM
  • 10
    8427-602 NUT, LOCK
    NUT, LOCK
  • 11
    0730-254 ECM
    ECM
  • 12
    1607-126 BRACKET, STEERING STOP
    BRACKET, STEERING STOP
  • 13
    8060-706 RIVET
    RIVET
  • 14
    1607-561 GUSSET, A-ARM MOUNTING BRACKET
    GUSSET, A-ARM MOUNTING BRACKET
  • 15
    1623-241 RIVET
    RIVET
  • 16
    8477-625 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    0824-072 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 18
    1607-715 BRACKET, REINFORCEMENT - LOWER
    BRACKET, REINFORCEMENT - LOWER
  • 19
    1607-716 BRACKET, MOUNTING - STEERING BRACE - LOWER
    BRACKET, MOUNTING - STEERING BRACE - LOWER
  • 20
    1623-959 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 21
    1605-028 BOOT, STEERING - RIGHT
    BOOT, STEERING - RIGHT
  • 21
    1605-029 BOOT, STEERING - LEFT
    BOOT, STEERING - LEFT
  • 22
    0623-362 CLIP, RETAINING
    CLIP, RETAINING
  • 23
    1707-862 FRAME, FRONT - LOWER - BLACK
    FRAME, FRONT - LOWER - BLACK
  • 24
    8427-802 NUT
    NUT
  • 25
    1623-817 SCREW, SHOULDER
    SCREW, SHOULDER
  • 26
    8468-620 SCREW, MACHINE
    SCREW, MACHINE
  • 27
    2670-614 BUMPER, INTERCOOLER
    BUMPER, INTERCOOLER
  • 28
    1607-626 BELLY PAN - CENTER
    BELLY PAN - CENTER
  • 29
    1607-218 COVER, ACCESS
    COVER, ACCESS
  • 30
    8468-617 SCREW, MACHINE
    SCREW, MACHINE
  • 31
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
  • 32
    1607-063 PANEL, ACCESS
    PANEL, ACCESS
  • 33
    0645-675 BRACKET, PDM
    BRACKET, PDM
  • 34
    3020-415 STRAP, ECM
    STRAP, ECM
  • 35
    2623-166 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 36
    2707-804 BUMPER, FRONT - ASSEMBLY - GREEN (INC. 27 AND 38-39)
    BUMPER, FRONT - ASSEMBLY - GREEN (INC. 27 AND 38-39)
  • 37
    2707-676 BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
    BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
  • 37
    2707-677 BRACKET, MOUNTING - BUMPER - LEFT - BLACK
    BRACKET, MOUNTING - BUMPER - LEFT - BLACK
  • 38
    1623-257 RIVET
    RIVET
  • 39
    1607-654 BRACKET, MOUNTING - BUMPER - UPPER
    BRACKET, MOUNTING - BUMPER - UPPER
  • 40
    1623-797 INSERT
    INSERT
  • 41
    8476-520 SCREW, MACHINE
    SCREW, MACHINE
  • 42
    1623-939 NUT, U
    NUT, U
  • 43
    2623-063 SCREW, MACHINE
    SCREW, MACHINE
  • 44
    2623-189 SCREW, SHOULDER
    SCREW, SHOULDER
