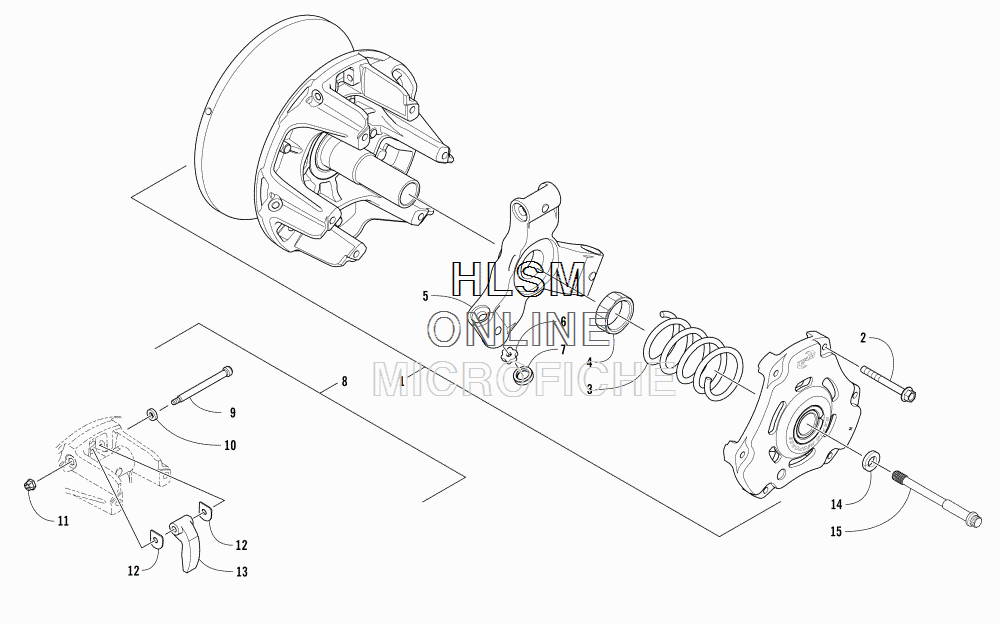

DRIVE CLUTCH для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 2.2 BLACK INTERNATIONAL - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    0746-875 CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-7, AND 9-12)
    CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-7, AND 9-12)
  • 2
    0646-950 ...SCREW, SHOULDER
    ...SCREW, SHOULDER
  • 3
    0646-474 SPRING, DRIVE CLUTCH
    SPRING, DRIVE CLUTCH
  • 4
    0646-936 NUT, JAM
    NUT, JAM
  • 5
    0646-955 SPIDER
    SPIDER
  • 6
    0646-951 PLUG, TORQUE BUTTON
    PLUG, TORQUE BUTTON
  • 7
    0646-465 BUTTON, TORQUE - PRIMARY
    BUTTON, TORQUE - PRIMARY
  • 8
    7639-127 KIT, CAM ARM (INC. 9-12)
    KIT, CAM ARM (INC. 9-12)
  • 9
    0823-396 ...PIN, CAM ARM
    ...PIN, CAM ARM
  • 10
    2623-091 ...WASHER
    ...WASHER
  • 11
    0823-399 ...NUT, LOCK
    ...NUT, LOCK
  • 12
    0646-880 ...WASHER, THRUST
    ...WASHER, THRUST
  • 13
    0646-907 ARM, CAM
    ARM, CAM
  • 14
    0623-210 WASHER, HIGH COLLAR
    WASHER, HIGH COLLAR
  • 15
    0623-804 BOLT, CLUTCH
    BOLT, CLUTCH
