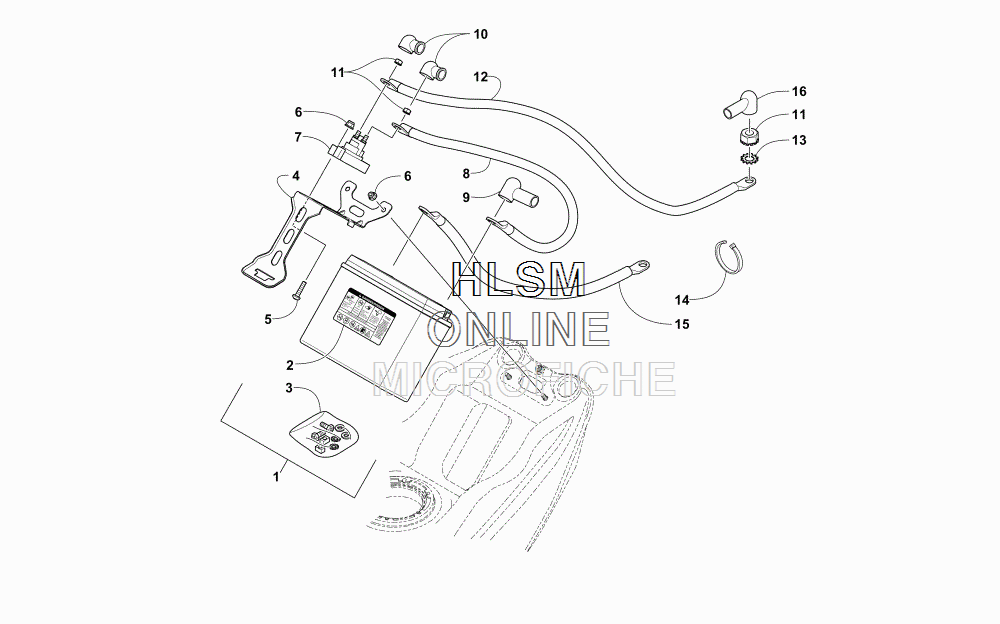

BATTERY AND TRAY ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 153 2.2 BLACK INTERNATIONAL - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-406 BATTERY - W/ACID (INC. 2-3)
    BATTERY - W/ACID (INC. 2-3)
  • 2
    0645-430 DECAL, WARNING
    DECAL, WARNING
  • 3
    0445-082 KIT, HARDWARE
    KIT, HARDWARE
  • 4
    0645-722 BRACKET, HOLD-DOWN - BATTERY
    BRACKET, HOLD-DOWN - BATTERY
  • 5
    8468-630 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    8427-602 NUT, LOCK
    NUT, LOCK
  • 7
    0445-058 SOLENOID
    SOLENOID
  • 8
    0645-649 CABLE, BATTERY/SOLENOID (INC. 9-10)
    CABLE, BATTERY/SOLENOID (INC. 9-10)
  • 9
    0645-662 ...BOOT, TERMINAL - BATTERY
    ...BOOT, TERMINAL - BATTERY
  • 10
    0645-697 ...BOOT, TERMINAL - BATTERY
    ...BOOT, TERMINAL - BATTERY
  • 11
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 12
    0645-690 CABLE, SOLENOID/STARTER (INC. 10 AND 16)
    CABLE, SOLENOID/STARTER (INC. 10 AND 16)
  • 13
    8053-212 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 14
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 15
    0645-691 CABLE, GROUND - BATTERY/STARTER
    CABLE, GROUND - BATTERY/STARTER
  • 16
    0645-019 BOOT, TERMINAL - BATTERY
    BOOT, TERMINAL - BATTERY
