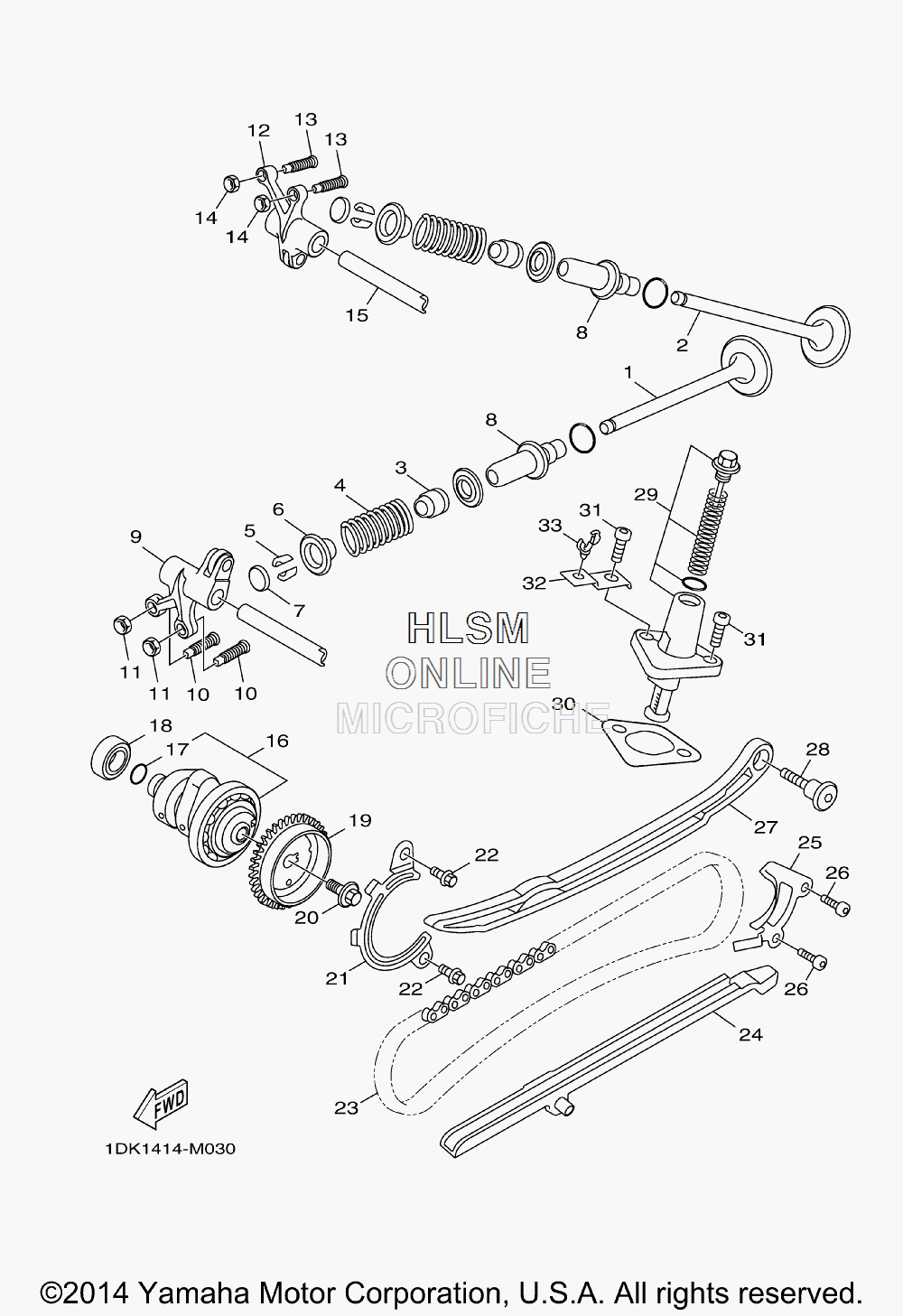

VALVE ASSY. W/ CAM CHAIN ASSY. для Yamaha SMAX - 2015 года выпуска`
-
№АртикулНазвание
-
152S-E2111-00-00 VALVE, INTAKEVALVE, INTAKE
-
252S-E2121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
352S-E2119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
43C1-E2113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
51WG-12118-00-00 LOCK, VALVE SPRING RETAINERLOCK, VALVE SPRING RETAINER
-
652S-E2117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
752S-E2169-10-00 PAD, ADJUSTINGPAD, ADJUSTING
-
852S-E2126-00-00 SEAT, VALVE SPRING 2SEAT, VALVE SPRING 2
-
952S-E2151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
1033S-E2159-01-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1190170-05803-00 NUTNUT
-
1252S-E2161-00-00 ARM, VALVE ROCKER 2ARM, VALVE ROCKER 2
-
1333S-E2159-01-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1490170-05803-00 NUTNUT
-
1552S-E2156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
161DK-E2170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
1793210-09859-00 ...O-RING...O-RING
-
1893306-001Y9-00 BEARINGBEARING
-
1952S-E1540-00-00 CAM CHAIN SPROCKET ASSY 1CAM CHAIN SPROCKET ASSY 1
-
2052S-E2157-00-00 BOLTBOLT
-
211B9-E111F-00-00 PLATEPLATE
-
2295022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2394568-75096-00 CHAINCHAIN
-
2452S-E2231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
2552S-E2233-00-00 PLATE, GUIDE STOPPER 1PLATE, GUIDE STOPPER 1
-
2690110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
271DK-E2241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
2852S-E2228-00-00 BOLTBOLT
-
295LW-E2210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
304DH-E2213-01-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
3191312-06016-00 BOLTBOLT
-
321DK-E2492-00-00 CLAMP 2CLAMP 2
-
3390464-25803-00 CLAMPCLAMP
