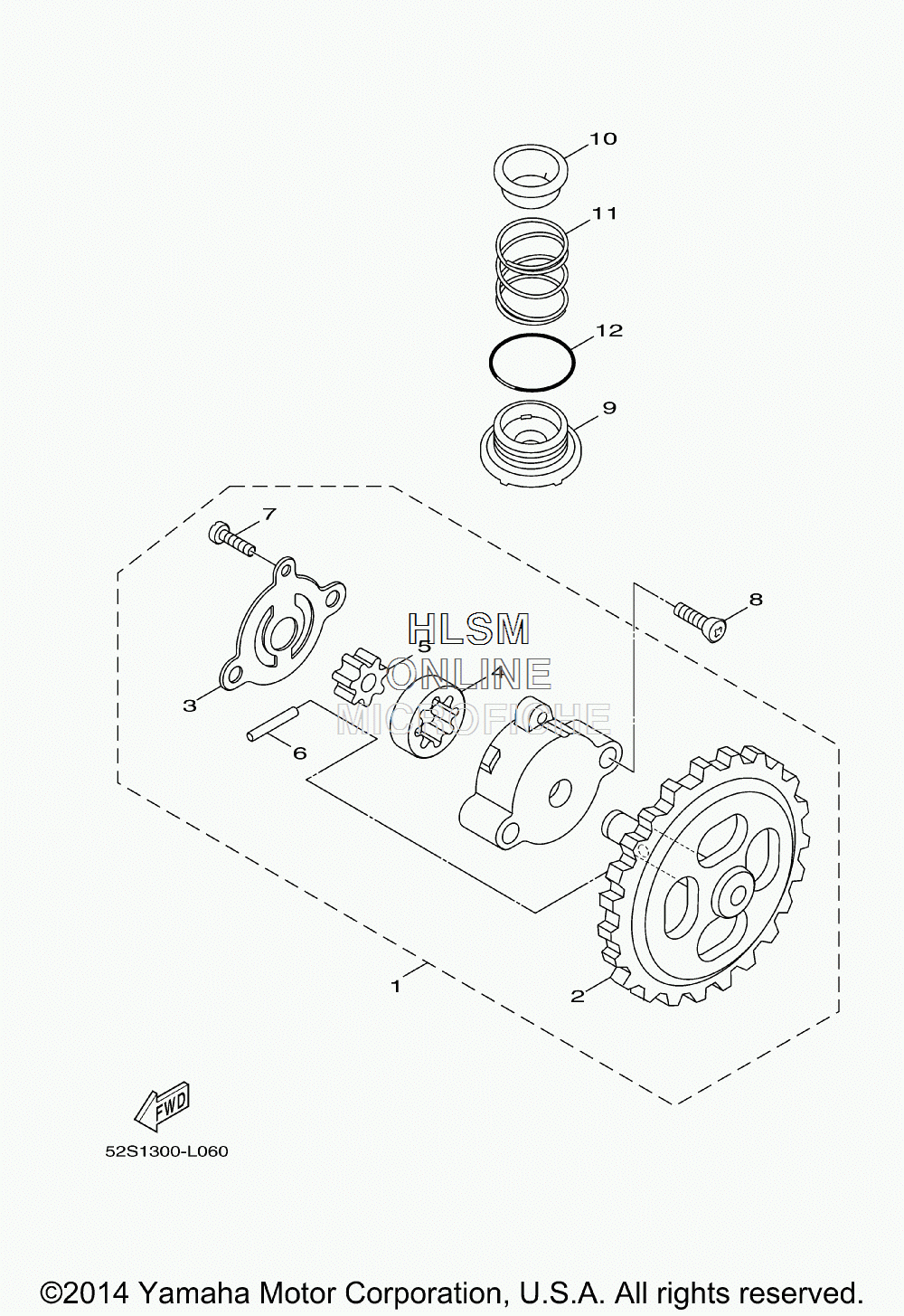

OIL PUMP для Yamaha SMAX - 2015 года выпуска`
-
№АртикулНазвание
-
152S-E3300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
252S-E3325-00-00 ...GEAR, PUMP DRIVEN...GEAR, PUMP DRIVEN
-
35P0-E3316-00-00 ...COVER, PUMP...COVER, PUMP
-
45P0-E3336-00-00 ...HOUSING, ROTOR...HOUSING, ROTOR
-
55MX-E3310-00-00 ...ROTOR ASSY 1...ROTOR ASSY 1
-
693602-11144-00 ...PIN, DOWEL...PIN, DOWEL
-
75LW-E5481-00-00 ...BOLT 1...BOLT 1
-
898502-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
93UH-E5351-00-00 PLUG, DRAINPLUG, DRAIN
-
103KW-E3411-00-00 STRAINER, OILSTRAINER, OIL
-
1190501-16829-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1293210-35879-00 O-RINGO-RING
