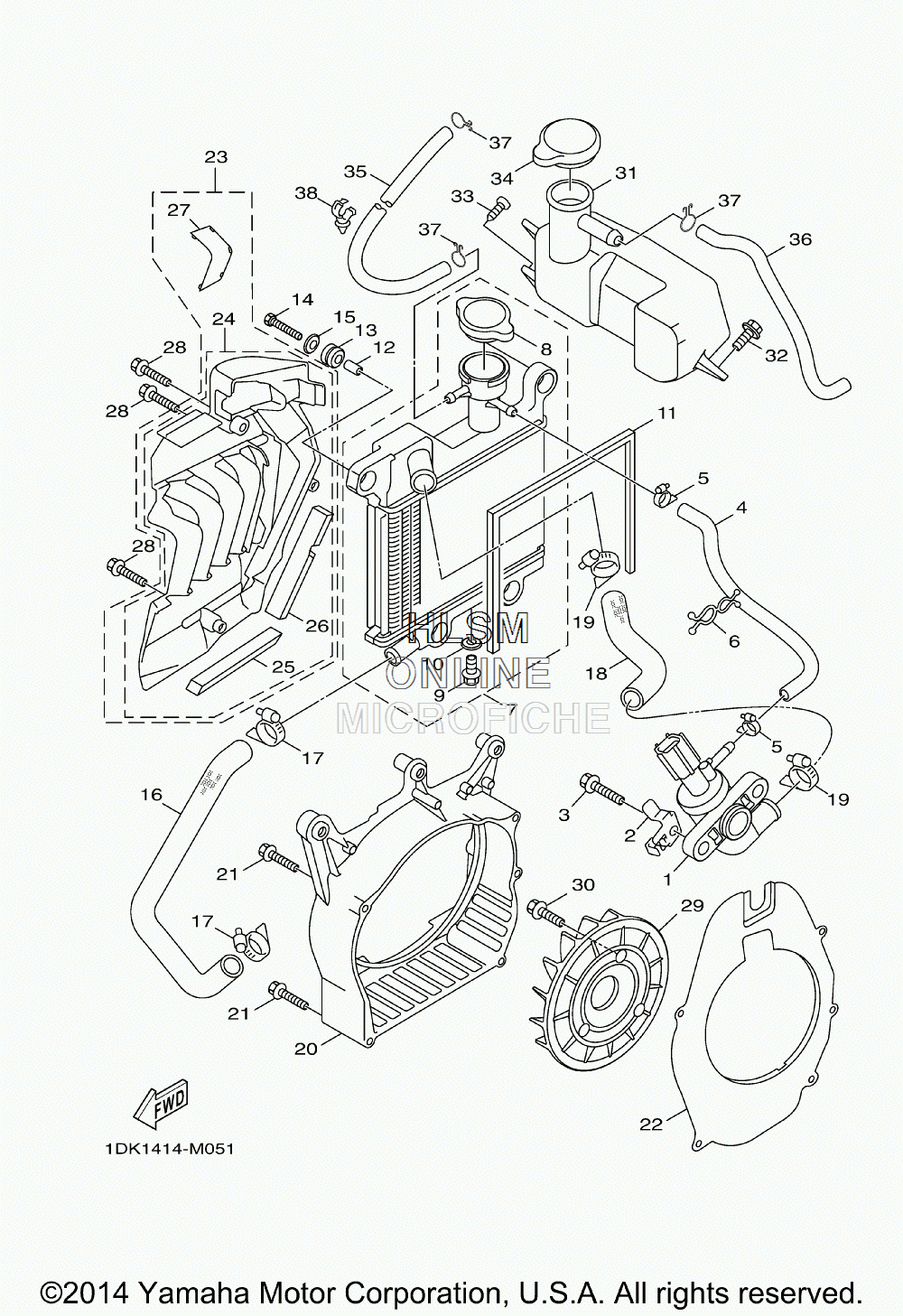

RADIATOR W/ HOSES для Yamaha SMAX - 2015 года выпуска`
-
№АртикулНазвание
-
152S-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
21DK-E2443-00-00 STAYSTAY
-
395022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
452S-E2463-00-00 PIPE, BREATHERPIPE, BREATHER
-
590467-08092-00 CLIPCLIP
-
690464-26801-00 CLAMPCLAMP
-
71DK-E240A-00-00 RADIATOR ASSYRADIATOR ASSY
-
81DK-E2462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
91DK-E2615-00-00 ...BOLT...BOLT
-
101DK-E2843-00-00 ...O-RING...O-RING
-
111DK-E2659-01-00 DAMPER, AIR SHROUD 2DAMPER, AIR SHROUD 2
-
1290387-08825-00 COLLARCOLLAR
-
1390480-16805-00 GROMMETGROMMET
-
1497022-06035-00 BOLT, HEXAGONBOLT, HEXAGON
-
1590201-06085-00 WASHER, PLATEWASHER, PLATE
-
161DK-E2481-00-00 PIPE 1PIPE 1
-
1790450-27804-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
181DK-E2482-00-00 PIPE 2PIPE 2
-
1990450-27804-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
201DK-E2621-00-00 CASE, FANCASE, FAN
-
2195022-06055-00 BOLT, FLANGEBOLT, FLANGE
-
2252S-E2681-00-00 PLATEPLATE
-
232SW-WE246-00-00 COVER, RADIATORCOVER, RADIATOR
-
242SW-XE246-00-00 ......COVER, RADIATOR......COVER, RADIATOR
-
251DK-E2668-00-00 ......DAMPER, AIR SHROUD 3......DAMPER, AIR SHROUD 3
-
261DK-E2669-00-00 ......DAMPER, AIR SHROUD 4......DAMPER, AIR SHROUD 4
-
272SW-E246H-00-00 ...COVER 5...COVER 5
-
2895022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2952S-E2611-00-00 FANFAN
-
3095812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
311DK-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
3290109-06086-00 BOLTBOLT
-
3397707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
345CA-F1815-00-00 CAPCAP
-
351DK-F247A-00-00 HOSE 1HOSE 1
-
361DK-F247B-00-00 HOSE 2HOSE 2
-
3790467-090A2-00 CLIPCLIP
-
3890464-17003-00 CLAMPCLAMP
