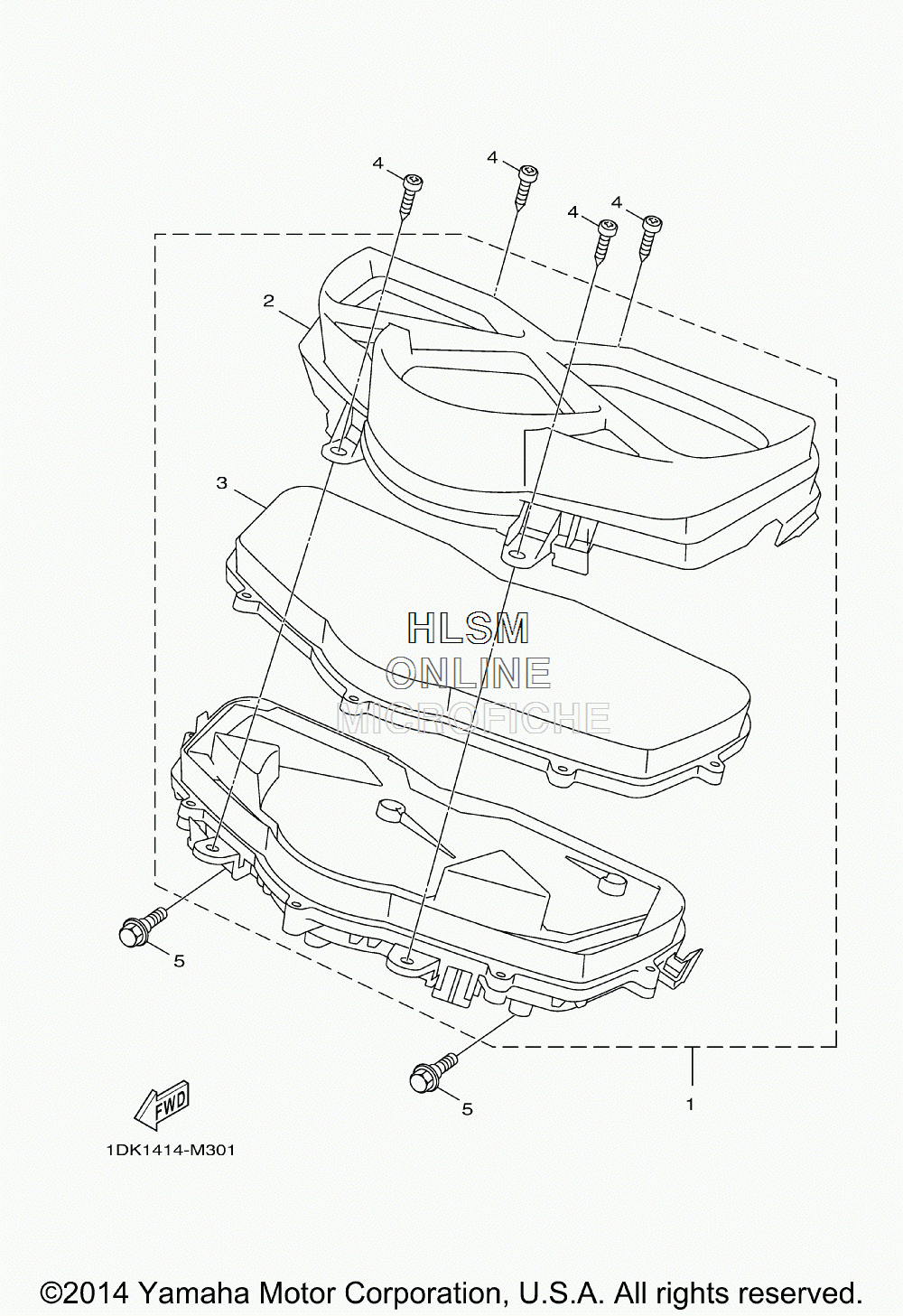

INSTRUMENT PANEL для Yamaha SMAX - 2015 года выпуска`
-
№АртикулНазвание
-
12LD-H3510-30-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
22LD-H353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
31DK-H353K-00-00 ...GLASS PLATE...GLASS PLATE
-
497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
590109-063F1-00 BOLTBOLT
