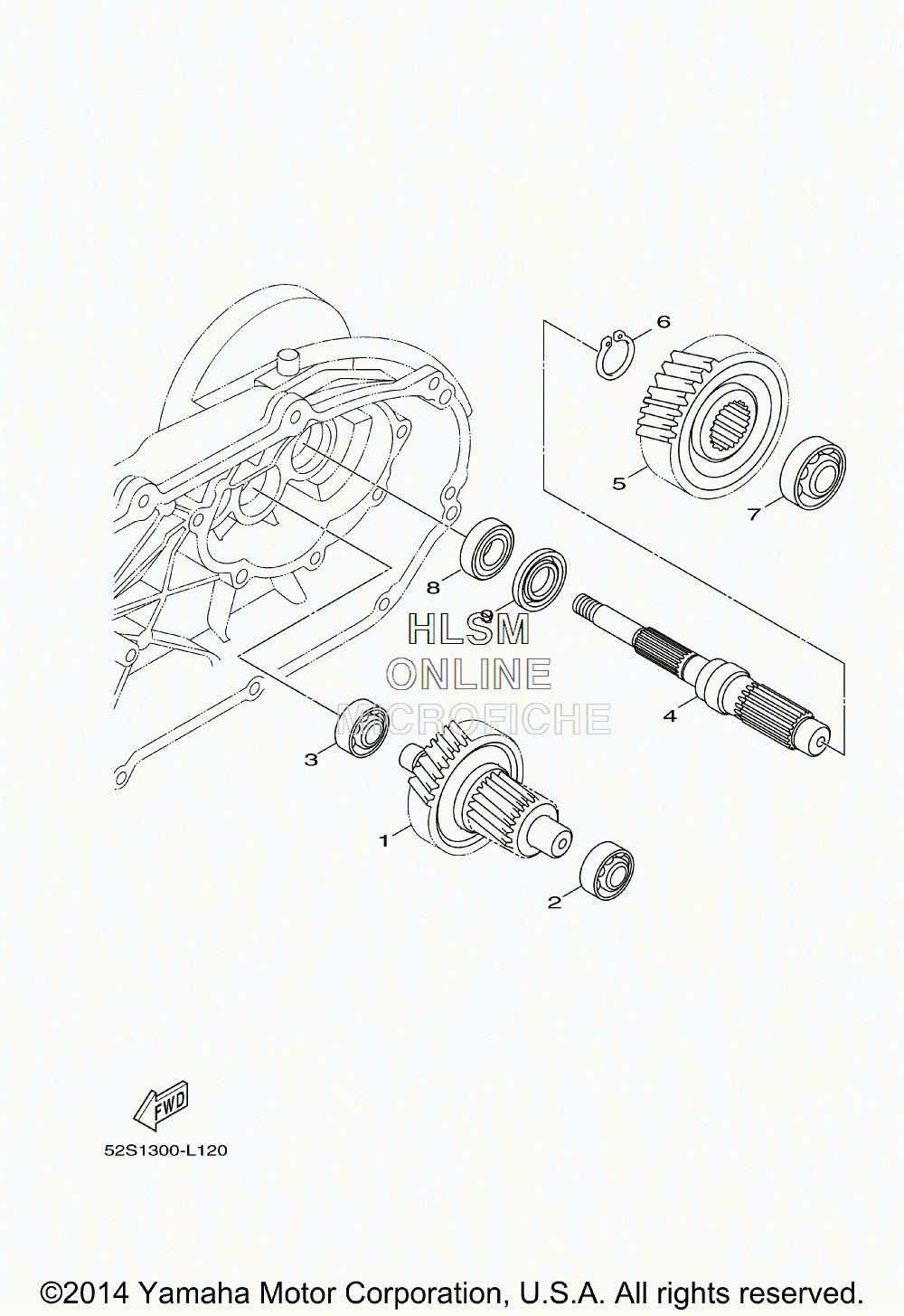

TRANSMISSION для Yamaha SMAX - 2015 года выпуска`
-
№АртикулНазвание
-
11DK-E7410-00-00 MAIN AXLE COMP.MAIN AXLE COMP.
-
293306-302YJ-00 BEARINGBEARING
-
393306-302Y1-00 BEARINGBEARING
-
452S-E7421-00-00 AXLE, DRIVEAXLE, DRIVE
-
51DK-E7211-00-00 GEAR, 1ST WHEELGEAR, 1ST WHEEL
-
699009-25400-00 CIRCLIPCIRCLIP
-
793306-303YF-00 BEARINGBEARING
-
893306-255Y0-00 BEARINGBEARING
-
993102-32805-00 OIL SEALOIL SEAL
