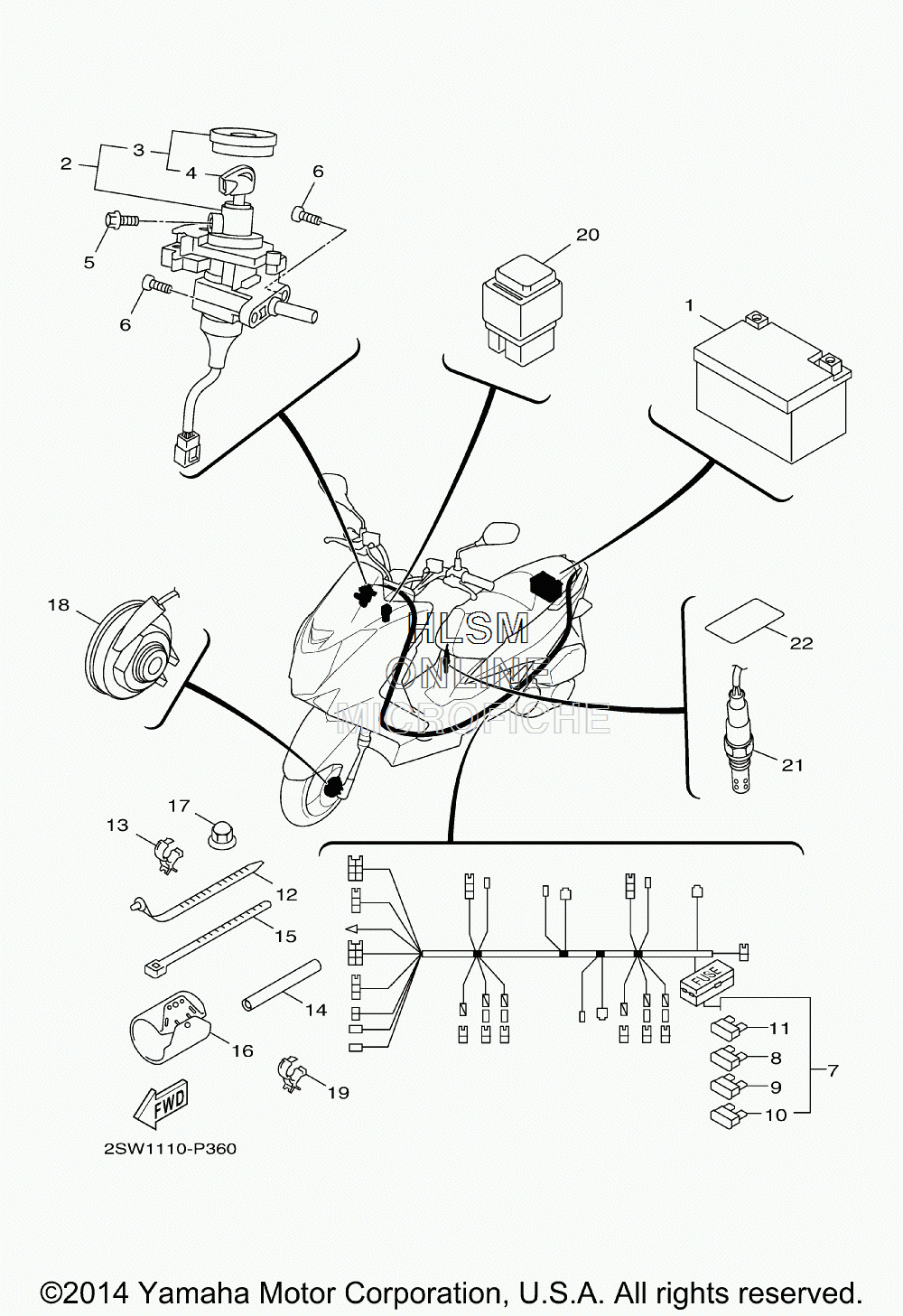

ELECTRICAL 2 для Yamaha SMAX - 2015 года выпуска`
-
№АртикулНазвание
-
152S-H2100-01-00 BATTERY ASSYBATTERY ASSY
-
22LD-WH203-00-00 KEY SETKEY SET
-
22LD-H2501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
34P9-WH250-41-A0 ...SHUTTER & BLANK KEY...SHUTTER & BLANK KEY
-
34P9-WH250-41-C0 ...SHUTTER & BLANK KEY...SHUTTER & BLANK KEY
-
44P9-H2511-**-** ......KEY, MAIN SWITCH......KEY, MAIN SWITCH
-
590119-05004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690155-06803-00 SCREW, FLAT FILLISTERSCREW, FLAT FILLISTER
-
72SW-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
85ML-H2151-10-00 ...FUSE (15A)...FUSE (15A)
-
95MH-H2151-00-00 ...FUSE (20A)...FUSE (20A)
-
105ML-H2151-20-00 ...FUSE (7.5A)...FUSE (7.5A)
-
111P5-H2151-00-00 ...FUSE(10A)...FUSE(10A)
-
1290464-30802-00 CLAMPCLAMP
-
1390464-30801-00 CLAMPCLAMP
-
141CF-F117G-00-00 PROTECTORPROTECTOR
-
1590464-60800-00 CLAMPCLAMP
-
1652S-H252U-00-00 COVERCOVER
-
1790176-06055-00 NUT, CROWNNUT, CROWN
-
182LD-H3755-10-00 SENSOR, SPEEDSENSOR, SPEED
-
1990464-23003-00 CLAMPCLAMP
-
203GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
212SW-H592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
2228B-E4452-00-00 SEALSEAL
